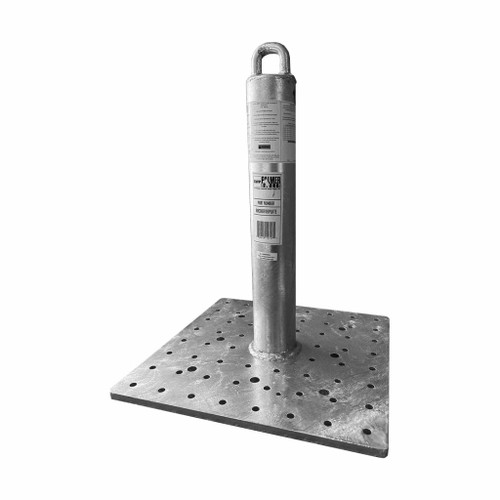

Palmer Safety 18" Post Anchor for Wood, Steel & Concrete
This product is imported. Country of Origin subject to change.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
The 18" Roof Anchor with Baseplate is designed for permanent installation and serves as a secure, fixed connection point for fall protection systems. With an extended post height, it provides reliable tie-off options during construction and for long-term use. Suitable for residential, commercial, and industrial applications, it is compatible with horizontal lifeline (HLL) systems and can function as either a single-point anchor or an HLL endpoint.
Note: Mounting hardware (bolts, screws, or fasteners) is not included. Installer must supply appropriate hardware depending on the substrate—wood, steel, or concrete.
Key Features
- Permanent Anchor Point: Extends through roofing to remain accessible both during and after construction.
- Versatile Installation: Compatible with wood, steel, and concrete substrates.
- Horizontal Lifeline Compatibility: Rated for use as an HLL endpoint.
- Galvanized Steel Construction: Corrosion-resistant finish ensures durability and long-term performance.
- Baseplate Design: 1/2-inch thick, 16" x 16" baseplate with 8 holes for 1/2" bolts and 60 holes for #14 screws for a secure installation.
- Back Plate Option: Can be installed on I-beams or other structural members with the use of a back plate (sold separately).
Technical Specifications
- Material: Galvanized Steel
- Dimensions:
- Post Height: 18 inches (457.2 mm)
- Baseplate Dimensions: 16" x 16" (406.4 mm x 406.4 mm)
- Baseplate Thickness: 1/2 inch
- Capacity: Supports workers from 130 to 420 lbs
- Minimum Breaking Strength (MBS): 5,000 lbs
- Compliance: Meets or exceeds OSHA 1926 Subpart M & 1910 and ANSI Z359.18-2017 & A10.32-2012 standards
- Service Temperature: Minimum -30°F
With its taller 18-inch post, robust galvanized steel construction, and compliance with OSHA and ANSI standards, the 18" Roof Anchor with Baseplate is a trusted solution for permanent fall protection across a wide range of structures.
