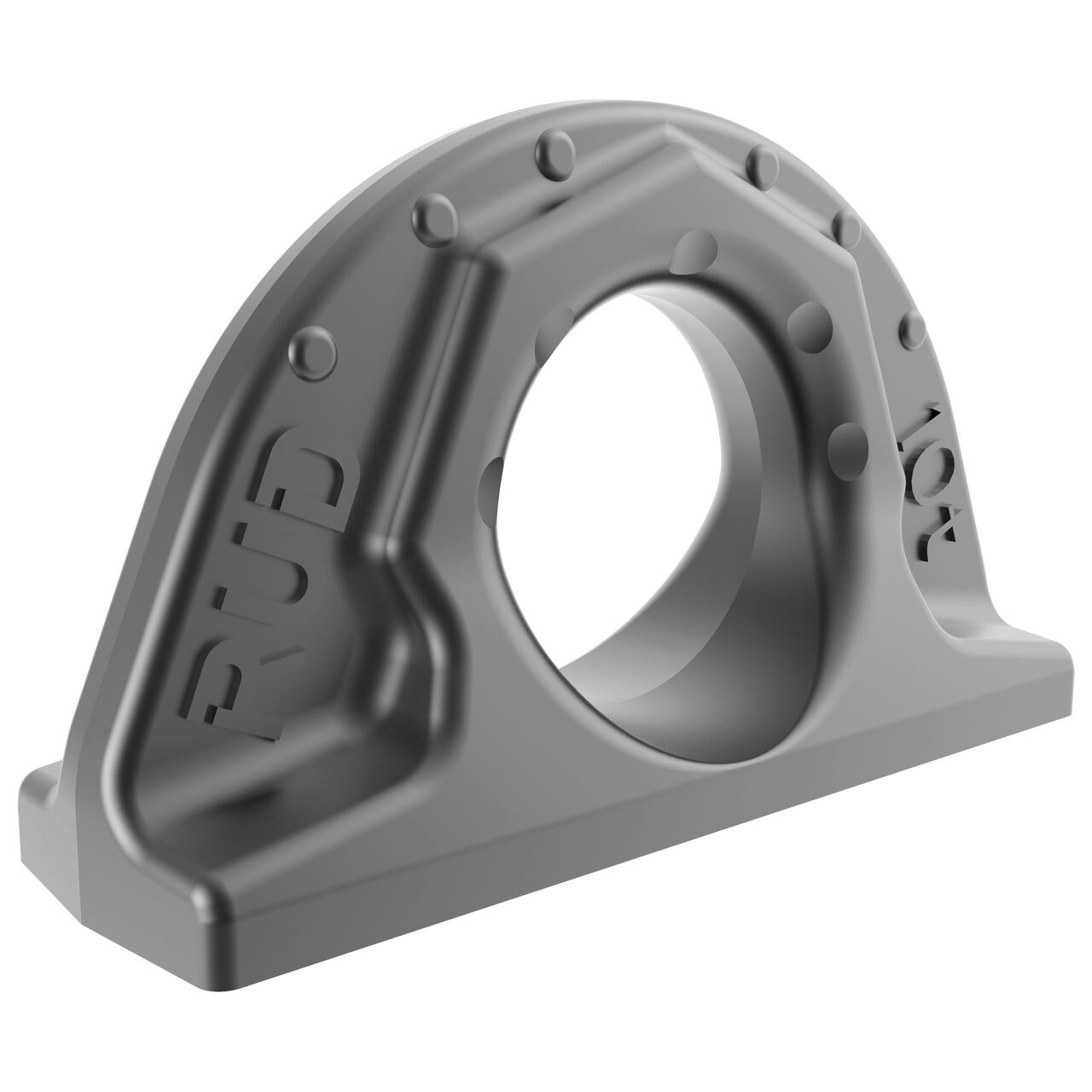

RUD weldable lifting points provide permanent, heavy-duty attachment points for lifting and rigging applications where maximum strength and reliability are required. Designed to be welded directly to steel structures, machinery, or fabricated components, these lifting points create a robust anchor that can handle demanding lifting conditions. Popular models such as the RUD W-ABA weld-on load ring are forged from a single piece for exceptional durability and feature patented wear indicators and clearly marked working load limits. With working load capacities ranging from light fabrication lifts to heavy industrial lifting, RUD weldable lifting points are widely used in fabrication shops, equipment manufacturing, offshore structures, and structural steel applications.

Click here to download a PDF file for additional specifications.

Order Sheet

MPN WLL (tons) Overall Length Overall Height Inside Eye Approx. Weight (kg) Price Quantity
7907698 0.8 70 mm 50 mm 32 mm 0.2 $50.00
7900352 1.6 100 mm 57 mm 35 mm 0.45 $78.00
7900353 3.2 137 mm 80 mm 50 mm 1.15 $118.00
7900354 5 172 mm 99 mm 60 mm 2.26 $186.00
7900355 10 228 mm 130 mm 80 mm 5.37 $324.00
7902174 20 272 mm 175 mm 115 mm 10.72 $1,214.00
7902175 31.5 320 mm 204 mm 130 mm 18.33 $1,656.00

Products

MPN: 7907698
WLL (tons) : 0.8
Overall Length : 70 mm
Overall Height : 50 mm
Inside Eye : 32 mm
Approx. Weight (kg) : 0.2
Price: $50.00
MPN: 7900352
WLL (tons) : 1.6
Overall Length : 100 mm
Overall Height : 57 mm
Inside Eye : 35 mm
Approx. Weight (kg) : 0.45
Price: $78.00
MPN: 7900353
WLL (tons) : 3.2
Overall Length : 137 mm
Overall Height : 80 mm
Inside Eye : 50 mm
Approx. Weight (kg) : 1.15
Price: $118.00
MPN: 7900354
WLL (tons) : 5
Overall Length : 172 mm
Overall Height : 99 mm
Inside Eye : 60 mm
Approx. Weight (kg) : 2.26
Price: $186.00
MPN: 7900355
WLL (tons) : 10
Overall Length : 228 mm
Overall Height : 130 mm
Inside Eye : 80 mm
Approx. Weight (kg) : 5.37
Price: $324.00
MPN: 7902174
WLL (tons) : 20
Overall Length : 272 mm
Overall Height : 175 mm
Inside Eye : 115 mm
Approx. Weight (kg) : 10.72
Price: $1,214.00
MPN: 7902175
WLL (tons) : 31.5
Overall Length : 320 mm
Overall Height : 204 mm
Inside Eye : 130 mm
Approx. Weight (kg) : 18.33
Price: $1,656.00

RUD weldable lifting points provide permanent, heavy-duty attachment points for lifting and rigging applications where maximum strength and reliability are required. Designed to be welded directly to steel structures, machinery, or fabricated components, these lifting points create a robust anchor that can handle demanding lifting conditions. Popular models such as the RUD W-ABA weld-on load ring are forged from a single piece for exceptional durability and feature patented wear indicators and clearly marked working load limits. With working load capacities ranging from light fabrication lifts to heavy industrial lifting, RUD weldable lifting points are widely used in fabrication shops, equipment manufacturing, offshore structures, and structural steel applications.
