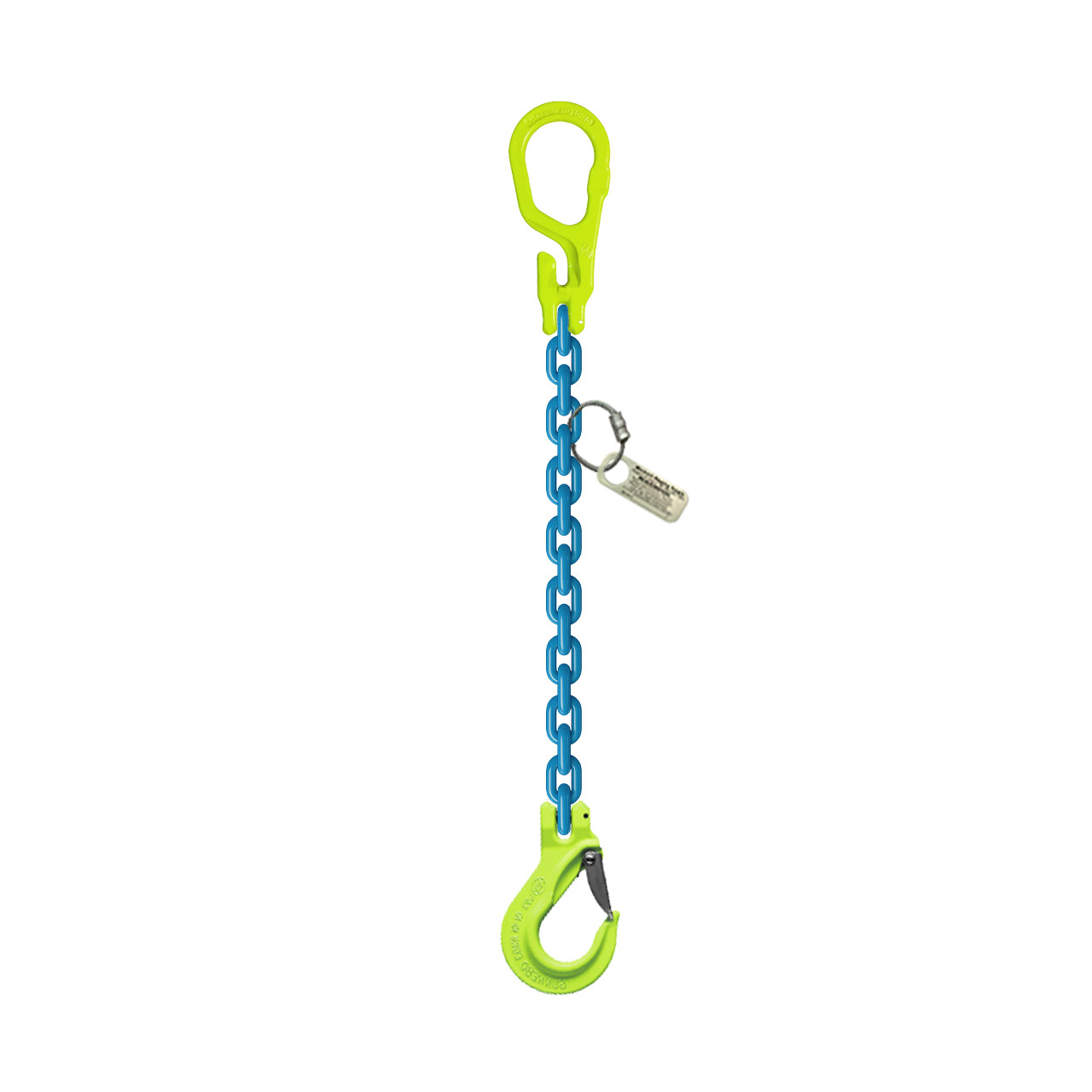

MG-EGKN GrabiQ Chain Slings
The new innovative Grade 100 chain lifting system!
Sweden's Gunnebo Lifting has introduced their new GrabiQ system. A new system of lifting based on grade 100 chain and a fewer number of powerful multi-function components. The result is a both simpler and safer system versus existing lifting systems.
A four-leg sling with a shortening function, which previously required up to fifteen separate components, can now be handled with just three. Available in sizes ranging from 5/16" - 5/8" (8 - 16mm), the GrabiQ system offers improved safety, greater durability, and shorter assembly times.
| SKU | Chain Diameter | Length (ft) | Vertical WLL (lbs) | Weight (lbs) | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MG1-EGKN516X05-G100 | 5/16" | 5 | 5700 | 8.35 | $206.00 |
|
|||||
| MG1-EGKN516X10-G100 | 5/16" | 10 | 5700 | 13.2 | $253.00 |
|
|||||
| MG1-EGKN516X15-G100 | 5/16" | 15 | 5700 | 18.05 | $301.00 |
|
|||||
| MG1-EGKN516X20-G100 | 5/16" | 20 | 5700 | 22.9 | $347.00 |
|
|||||
| MG1-EGKN38X05-G100 | 3/8" | 5 | 8800 | 13.95 | $341.00 |
|
|||||
| MG1-EGKN38X10-G100 | 3/8" | 10 | 8800 | 21.5 | $391.00 |
|
|||||
| MG1-EGKN38X15-G100 | 3/8" | 15 | 8800 | 29.05 | $442.00 |
|
|||||
| MG1-EGKN38X20-G100 | 3/8" | 20 | 8800 | 36.6 | $493.00 |
|
|||||
| MG1-EGKN12X05-G100 | 1/2" | 5 | 15000 | 24.95 | $478.00 |
|
|||||
| MG1-EGKN12X10-G100 | 1/2" | 10 | 15000 | 38 | $561.00 |
|
|||||
| MG1-EGKN12X15-G100 | 1/2" | 15 | 15000 | 50.25 | $646.00 |
|
|||||
| MG1-EGKN12X20-G100 | 1/2" | 20 | 15000 | 62.9 | $730.00 |
|
|||||
| MG1-EGKN58X05-G100 | 5/8" | 5 | 22600 | 41.1 | $680.00 |
|
|||||
| MG1-EGKN58X10-G100 | 5/8" | 10 | 22600 | 60.8 | $821.00 |
|
|||||
| MG1-EGKN58X15-G100 | 5/8" | 15 | 22600 | 80.5 | $963.00 |
|
|||||
| MG1-EGKN58X20-G100 | 5/8" | 20 | 22600 | 100 | $1,105.00 |
|
|||||
Products
SKU:
MG1-EGKN516X05-G100
Chain Diameter
:
5/16"
Length (ft)
:
5
Vertical WLL (lbs)
:
5700
Weight (lbs)
:
8.35
Price:
$206.00
SKU:
MG1-EGKN516X10-G100
Chain Diameter
:
5/16"
Length (ft)
:
10
Vertical WLL (lbs)
:
5700
Weight (lbs)
:
13.2
Price:
$253.00
SKU:
MG1-EGKN516X15-G100
Chain Diameter
:
5/16"
Length (ft)
:
15
Vertical WLL (lbs)
:
5700
Weight (lbs)
:
18.05
Price:
$301.00
SKU:
MG1-EGKN516X20-G100
Chain Diameter
:
5/16"
Length (ft)
:
20
Vertical WLL (lbs)
:
5700
Weight (lbs)
:
22.9
Price:
$347.00
SKU:
MG1-EGKN38X05-G100
Chain Diameter
:
3/8"
Length (ft)
:
5
Vertical WLL (lbs)
:
8800
Weight (lbs)
:
13.95
Price:
$341.00
SKU:
MG1-EGKN38X10-G100
Chain Diameter
:
3/8"
Length (ft)
:
10
Vertical WLL (lbs)
:
8800
Weight (lbs)
:
21.5
Price:
$391.00
SKU:
MG1-EGKN38X15-G100
Chain Diameter
:
3/8"
Length (ft)
:
15
Vertical WLL (lbs)
:
8800
Weight (lbs)
:
29.05
Price:
$442.00
SKU:
MG1-EGKN38X20-G100
Chain Diameter
:
3/8"
Length (ft)
:
20
Vertical WLL (lbs)
:
8800
Weight (lbs)
:
36.6
Price:
$493.00
SKU:
MG1-EGKN12X05-G100
Chain Diameter
:
1/2"
Length (ft)
:
5
Vertical WLL (lbs)
:
15000
Weight (lbs)
:
24.95
Price:
$478.00
SKU:
MG1-EGKN12X10-G100
Chain Diameter
:
1/2"
Length (ft)
:
10
Vertical WLL (lbs)
:
15000
Weight (lbs)
:
38
Price:
$561.00
SKU:
MG1-EGKN12X15-G100
Chain Diameter
:
1/2"
Length (ft)
:
15
Vertical WLL (lbs)
:
15000
Weight (lbs)
:
50.25
Price:
$646.00
SKU:
MG1-EGKN12X20-G100
Chain Diameter
:
1/2"
Length (ft)
:
20
Vertical WLL (lbs)
:
15000
Weight (lbs)
:
62.9
Price:
$730.00
SKU:
MG1-EGKN58X05-G100
Chain Diameter
:
5/8"
Length (ft)
:
5
Vertical WLL (lbs)
:
22600
Weight (lbs)
:
41.1
Price:
$680.00
SKU:
MG1-EGKN58X10-G100
Chain Diameter
:
5/8"
Length (ft)
:
10
Vertical WLL (lbs)
:
22600
Weight (lbs)
:
60.8
Price:
$821.00
SKU:
MG1-EGKN58X15-G100
Chain Diameter
:
5/8"
Length (ft)
:
15
Vertical WLL (lbs)
:
22600
Weight (lbs)
:
80.5
Price:
$963.00
SKU:
MG1-EGKN58X20-G100
Chain Diameter
:
5/8"
Length (ft)
:
20
Vertical WLL (lbs)
:
22600
Weight (lbs)
:
100
Price:
$1,105.00
