"DOF" stands for, Double leg, Oblong master link & Foundry hooks with large throat openings.

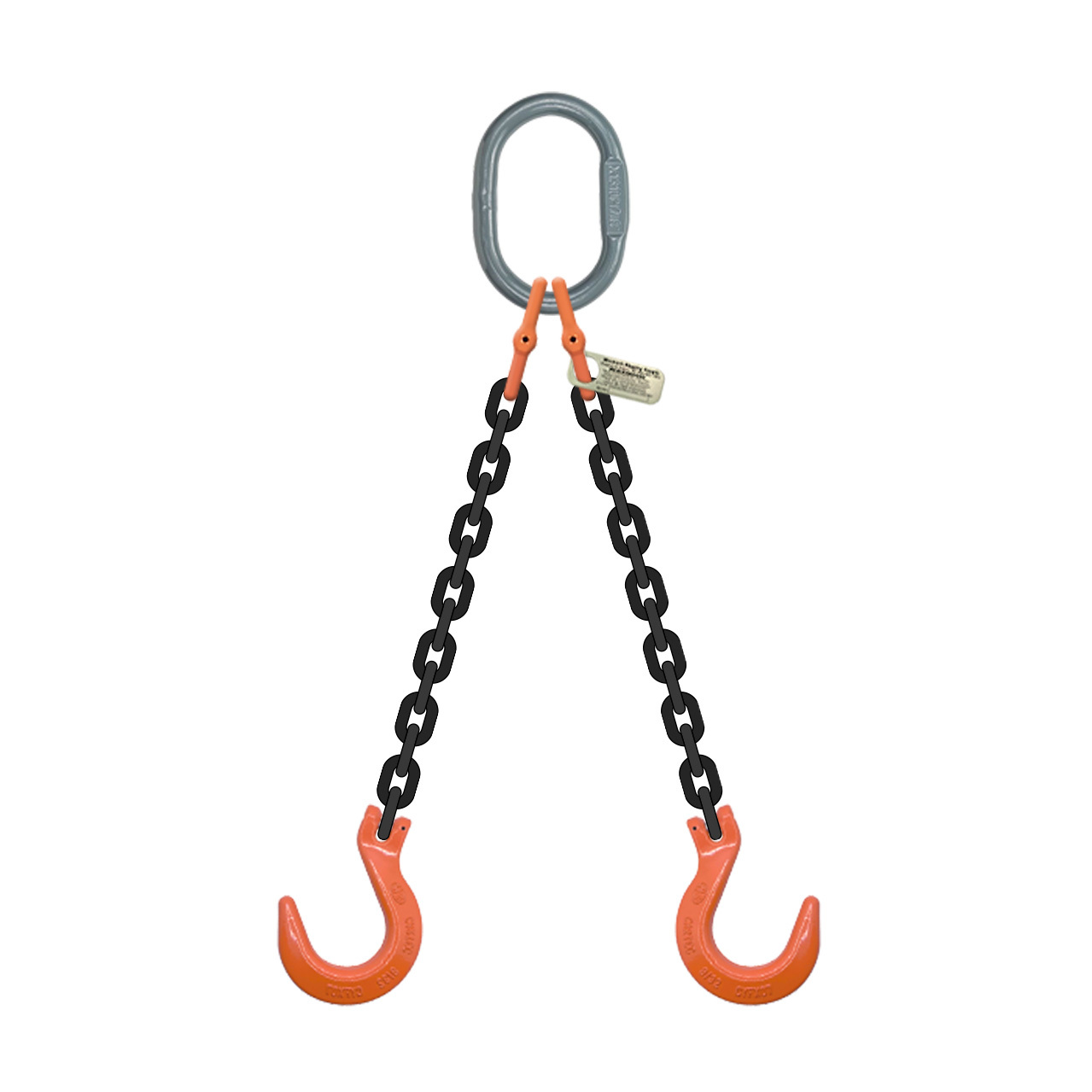

These Grade 100 chain slings feature an oblong master link on one end and two open-style foundry hooks on the other end. Foundry hooks have exceptionally large throat openings and no safety latches. They are designed this way to allow attachment around larger diameter objects.
Order Sheet
| SKU | Chain Diameter | Length (ft) | WLL 60º (lbs) | WLL 45º (lbs) | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| 9/32DOFX05-10MC | 9/32" (1/4") | 5 | 7400 | 6100 | 15 | $331.88 |
|
| 9/32DOFX10-10MC | 9/32" (1/4") | 10 | 7400 | 6100 | 22.7 | $371.64 |
|
| 9/32DOFX15-10MC | 9/32" (1/4") | 15 | 7400 | 6100 | 30.4 | $411.38 |
|
| 9/32DOFX20-10MC | 9/32" (1/4") | 20 | 7400 | 6100 | 38.1 | $451.12 |
|
| 5/16DOFX05-10MC | 5/16" | 5 | 9900 | 8100 | 17.52 | $365.26 |
|
| 5/16DOFX10-10MC | 5/16" | 10 | 9900 | 8100 | 27.22 | $420.26 |
|
| 5/16DOFX15-10MC | 5/16" | 15 | 9900 | 8100 | 36.92 | $475.26 |
|
| 5/16DOFX20-10MC | 5/16" | 20 | 9900 | 8100 | 46.62 | $530.26 |
|
| 3/8DOFX05-10MC | 3/8" | 5 | 15200 | 12400 | 29.48 | $442.20 |
|
| 3/8DOFX10-10MC | 3/8" | 10 | 15200 | 12400 | 44.58 | $499.20 |
|
| 3/8DOFX15-10MC | 3/8" | 15 | 15200 | 12400 | 59.68 | $556.20 |
|
| 3/8DOFX20-10MC | 3/8" | 20 | 15200 | 12400 | 74.78 | $613.20 |
|
| 1/2DOFX05-10MC | 1/2" | 5 | 26000 | 21200 | 49.96 | $727.40 |
|
| 1/2DOFX10-10MC | 1/2" | 10 | 26000 | 21200 | 75.26 | $833.54 |
|
| 1/2DOFX15-10MC | 1/2" | 15 | 26000 | 21200 | 101 | $939.68 |
|
| 1/2DOFX20-10MC | 1/2" | 20 | 26000 | 21200 | 125.86 | $1,045.82 |
|
| 5/8DOFX05-10MC | 5/8" | 5 | 39100 | 32000 | 83.72 | $1,216.70 |
|
| 5/8DOFX10-10MC | 5/8" | 10 | 39100 | 32000 | 123 | $1,357.92 |
|
| 5/8DOFX15-10MC | 5/8" | 15 | 39100 | 32000 | 162.52 | $1,499.12 |
|
| 5/8DOFX20-10MC | 5/8" | 20 | 39100 | 32000 | 201.92 | $1,640.34 |
|
Products
SKU:
9/32DOFX05-10MC
Chain Diameter
:
9/32" (1/4")
Length (ft)
:
5
WLL 60º (lbs)
:
7400
WLL 45º (lbs)
:
6100
Weight (lbs)
:
15
Price:
$331.88
SKU:
9/32DOFX10-10MC
Chain Diameter
:
9/32" (1/4")
Length (ft)
:
10
WLL 60º (lbs)
:
7400
WLL 45º (lbs)
:
6100
Weight (lbs)
:
22.7
Price:
$371.64
SKU:
9/32DOFX15-10MC
Chain Diameter
:
9/32" (1/4")
Length (ft)
:
15
WLL 60º (lbs)
:
7400
WLL 45º (lbs)
:
6100
Weight (lbs)
:
30.4
Price:
$411.38
SKU:
9/32DOFX20-10MC
Chain Diameter
:
9/32" (1/4")
Length (ft)
:
20
WLL 60º (lbs)
:
7400
WLL 45º (lbs)
:
6100
Weight (lbs)
:
38.1
Price:
$451.12
SKU:
5/16DOFX05-10MC
Chain Diameter
:
5/16"
Length (ft)
:
5
WLL 60º (lbs)
:
9900
WLL 45º (lbs)
:
8100
Weight (lbs)
:
17.52
Price:
$365.26
SKU:
5/16DOFX10-10MC
Chain Diameter
:
5/16"
Length (ft)
:
10
WLL 60º (lbs)
:
9900
WLL 45º (lbs)
:
8100
Weight (lbs)
:
27.22
Price:
$420.26
SKU:
5/16DOFX15-10MC
Chain Diameter
:
5/16"
Length (ft)
:
15
WLL 60º (lbs)
:
9900
WLL 45º (lbs)
:
8100
Weight (lbs)
:
36.92
Price:
$475.26
SKU:
5/16DOFX20-10MC
Chain Diameter
:
5/16"
Length (ft)
:
20
WLL 60º (lbs)
:
9900
WLL 45º (lbs)
:
8100
Weight (lbs)
:
46.62
Price:
$530.26
SKU:
3/8DOFX05-10MC
Chain Diameter
:
3/8"
Length (ft)
:
5
WLL 60º (lbs)
:
15200
WLL 45º (lbs)
:
12400
Weight (lbs)
:
29.48
Price:
$442.20
SKU:
3/8DOFX10-10MC
Chain Diameter
:
3/8"
Length (ft)
:
10
WLL 60º (lbs)
:
15200
WLL 45º (lbs)
:
12400
Weight (lbs)
:
44.58
Price:
$499.20
SKU:
3/8DOFX15-10MC
Chain Diameter
:
3/8"
Length (ft)
:
15
WLL 60º (lbs)
:
15200
WLL 45º (lbs)
:
12400
Weight (lbs)
:
59.68
Price:
$556.20
SKU:
3/8DOFX20-10MC
Chain Diameter
:
3/8"
Length (ft)
:
20
WLL 60º (lbs)
:
15200
WLL 45º (lbs)
:
12400
Weight (lbs)
:
74.78
Price:
$613.20
SKU:
1/2DOFX05-10MC
Chain Diameter
:
1/2"
Length (ft)
:
5
WLL 60º (lbs)
:
26000
WLL 45º (lbs)
:
21200
Weight (lbs)
:
49.96
Price:
$727.40
SKU:
1/2DOFX10-10MC
Chain Diameter
:
1/2"
Length (ft)
:
10
WLL 60º (lbs)
:
26000
WLL 45º (lbs)
:
21200
Weight (lbs)
:
75.26
Price:
$833.54
SKU:
1/2DOFX15-10MC
Chain Diameter
:
1/2"
Length (ft)
:
15
WLL 60º (lbs)
:
26000
WLL 45º (lbs)
:
21200
Weight (lbs)
:
101
Price:
$939.68
SKU:
1/2DOFX20-10MC
Chain Diameter
:
1/2"
Length (ft)
:
20
WLL 60º (lbs)
:
26000
WLL 45º (lbs)
:
21200
Weight (lbs)
:
125.86
Price:
$1,045.82
SKU:
5/8DOFX05-10MC
Chain Diameter
:
5/8"
Length (ft)
:
5
WLL 60º (lbs)
:
39100
WLL 45º (lbs)
:
32000
Weight (lbs)
:
83.72
Price:
$1,216.70
SKU:
5/8DOFX10-10MC
Chain Diameter
:
5/8"
Length (ft)
:
10
WLL 60º (lbs)
:
39100
WLL 45º (lbs)
:
32000
Weight (lbs)
:
123
Price:
$1,357.92
SKU:
5/8DOFX15-10MC
Chain Diameter
:
5/8"
Length (ft)
:
15
WLL 60º (lbs)
:
39100
WLL 45º (lbs)
:
32000
Weight (lbs)
:
162.52
Price:
$1,499.12
SKU:
5/8DOFX20-10MC
Chain Diameter
:
5/8"
Length (ft)
:
20
WLL 60º (lbs)
:
39100
WLL 45º (lbs)
:
32000
Weight (lbs)
:
201.92
Price:
$1,640.34
"DOF" stands for, Double leg, Oblong master link & Foundry hooks with large throat openings.
These Grade 100 chain slings feature an oblong master link on one end and two open-style foundry hooks on the other end. Foundry hooks have exceptionally large throat openings and no safety latches. They are designed this way to allow attachment around larger diameter objects.
