Gunnebo WLP Weldable D-Rings

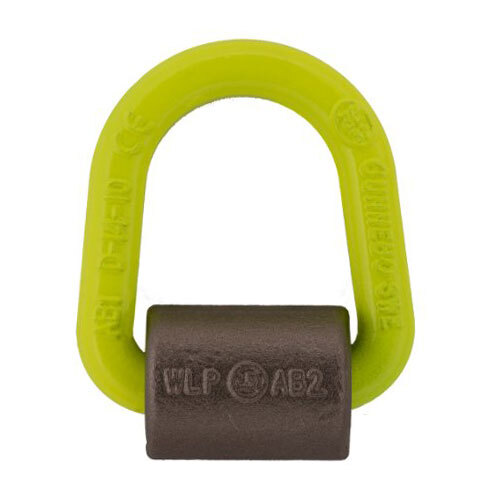

The Gunnebo Johnson WLP is a Grade 100 weldable lifting point featuring a pivoting D-ring with a stay-up spring for quick and easy rigging. Designed for permanent installation, these lifting points offer high working load limits, compact block-style bases, and reliable performance in demanding applications. Available in capacities from 5,510 lbs to 35,300 lbs, the WLP is built to meet industry standards with a 4:1 design factor for safe overhead lifting.
Order Sheet
| MPN | WLL (tons) | WLL (lbs) | Inside Length | Inside Width | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| Z7009001 | 2.5 | 5510 | 2.09" | 2.17" | 1.1 | $103.20 |
|
| Z7009011 | 4 | 8800 | 1.89" | 2.52" | 1.76 | $117.30 |
|
| Z7009021 | 7 | 15428 | 2.87" | 2.99" | 3.97 | $146.60 |
|
| Z7009031 | 10 | 22040 | 2.87" | 3.35" | 7.50 | $180.50 |
|
| Z7009041 | 16 | 35300 | 4.13" | 4.49" | 14.77 | $282.00 |
|
