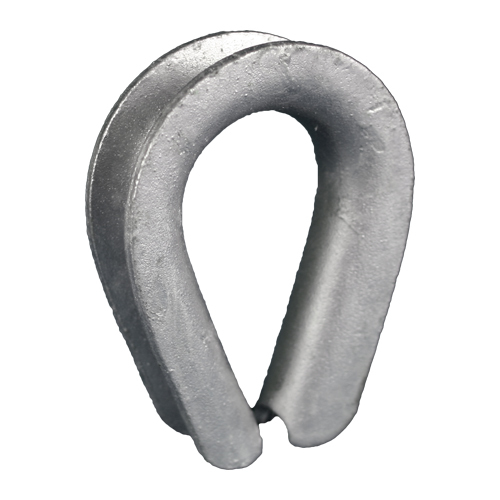

Crosby G-414 Heavy Duty Wire Rope Thimbles – Galvanized Protection for Wire Rope Eyes
Crosby G-414 Heavy Duty Wire Rope Thimbles are trusted throughout the rigging industry as a top-tier solution for protecting wire rope eyes from wear and deformation. As one of the most recognized and sought-after brands in rigging, Crosby delivers unmatched quality and reliability. These hot-dip galvanized steel thimbles are built for heavy-duty use and extend the life of the wire rope by reinforcing the eye against abrasion and crushing. Used wherever a loop or eye is formed in wire rope, thimbles help maintain the natural shape of the eye and protect the rope under load, but it’s important to note that thimbles are a non-load-bearing component—they are crucial for rope protection but carry no rated capacity themselves. G-414 thimbles meet Federal Specification FF-T-276b Type III (excluding contractor-specific provisions) and are a go-to choice for high-demand environments where long service life and superior eye protection are essential.
Click here to download a PDF file for additional specifications.
Order Sheet
| MPN | Wire Rope Size | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|
| 1037639 | 1/4" | 0.07 | $0.94 |
|
| 1037657 | 5/16" | 0.12 | $1.61 |
|
| 1037675 | 3/8" | 0.22 | $2.09 |
|
| 1037693 | 7/16" | 0.35 | $2.74 |
|
| 1037719 | 1/2" - 9/16" | 0.51 | $3.71 |
|
| 1037755 | 5/8" | 0.76 | $5.16 |
|
| 1037773 | 3/4" | 1.58 | $8.02 |
|
| 1037791 | 7/8" | 1.78 | $11.25 |
|
| 1037817 | 1" | 3.14 | $19.28 |
|
| 1037835 | 1-1/8" - 1-1/4" | 4 | $28.90 |
|
| 1037853 | 1-1/4" - 1-3/8" | 8.86 | $57.90 |
|
| 1037871 | 1-3/8" - 1-1/2" | 12.95 | $84.50 |
|
| 1037899 | 1-5/8" | 17 | $144.70 |
|
| 1037915 | 1-3/4" | 17.75 | $209.00 |
|
| 1037933 | 1-7/8" - 2" | 27.75 | $290.00 |
|
| 1037951 | 2-1/4" | 39.5 | $362.00 |
|
