"TOF" stands for, Triple leg, Oblong master link & Foundry hooks with large throat openings.

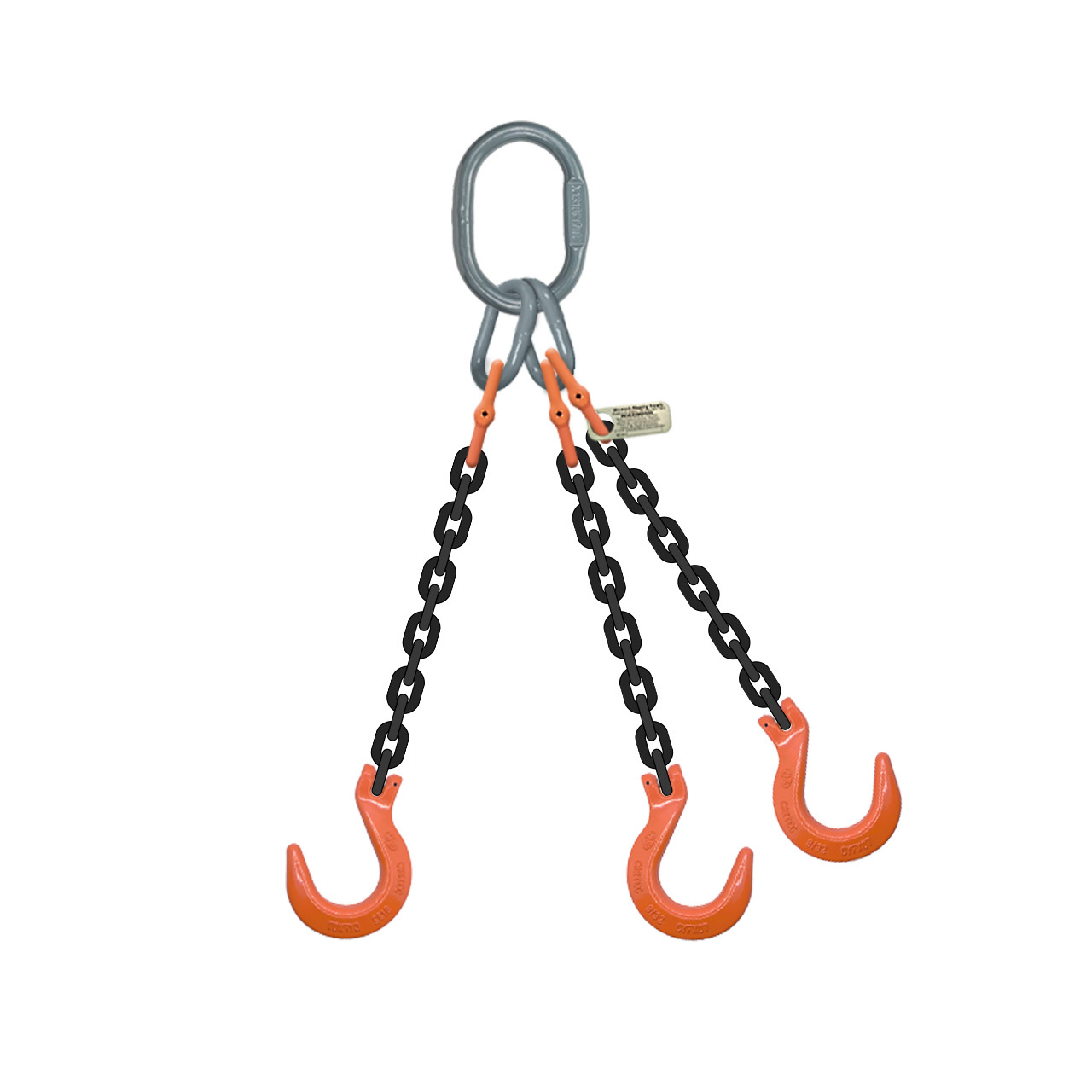

These Grade 100 chain slings feature an oblong master link on one end and three open-style foundry hooks on the other end. Foundry hooks have exceptionally large throat openings and no safety latches. They are designed this way to allow attachment around larger diameter objects.
Order Sheet
| SKU | Chain Diameter | Length (ft) | WLL 60º (lbs) | WLL 45º (lbs) | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| 9/32TOFX05-10MC | 9/32" (1/4") | 5 | 11200 | 9100 | 22.6 | $414.75 |
|
| 9/32TOFX10-10MC | 9/32" (1/4") | 10 | 11200 | 9100 | 34.15 | $476.32 |
|
| 9/32TOFX15-10MC | 9/32" (1/4") | 15 | 11200 | 9100 | 45.7 | $537.89 |
|
| 9/32TOFX20-10MC | 9/32" (1/4") | 20 | 11200 | 9100 | 57.25 | $599.47 |
|
| 5/16TOFX05-10MC | 5/16" | 5 | 14800 | 12100 | 28.36 | $476.49 |
|
| 5/16TOFX10-10MC | 5/16" | 10 | 14800 | 12100 | 42.91 | $561.50 |
|
| 5/16TOFX15-10MC | 5/16" | 15 | 14800 | 12100 | 57.46 | $646.51 |
|
| 5/16TOFX20-10MC | 5/16" | 20 | 14800 | 12100 | 72.01 | $731.51 |
|
| 3/8TOFX05-10MC | 3/8" | 5 | 22900 | 18700 | 46.56 | $582.81 |
|
| 3/8TOFX10-10MC | 3/8" | 10 | 22900 | 18700 | 69.21 | $672.80 |
|
| 3/8TOFX15-10MC | 3/8" | 15 | 22900 | 18700 | 92 | $762.78 |
|
| 3/8TOFX20-10MC | 3/8" | 20 | 22900 | 18700 | 115 | $852.77 |
|
| 1/2TOFX05-10MC | 1/2" | 5 | 39000 | 31800 | 79.83 | $899.35 |
|
| 1/2TOFX10-10MC | 1/2" | 10 | 39000 | 31800 | 118 | $1,059.56 |
|
| 1/2TOFX15-10MC | 1/2" | 15 | 39000 | 31800 | 155.73 | $1,219.76 |
|
| 1/2TOFX20-10MC | 1/2" | 20 | 39000 | 31800 | 193.68 | $1,379.97 |
|
| 5/8TOFX05-10MC | 5/8" | 5 | 58700 | 47900 | 129.91 | $1,449.06 |
|
| 5/8TOFX10-10MC | 5/8" | 10 | 58700 | 47900 | 189.01 | $1,657.13 |
|
| 5/8TOFX15-10MC | 5/8" | 15 | 58700 | 47900 | 248.11 | $1,865.18 |
|
| 5/8TOFX20-10MC | 5/8" | 20 | 58700 | 47900 | 307.21 | $2,073.25 |
|
