CDFXA4SL Chain Slings

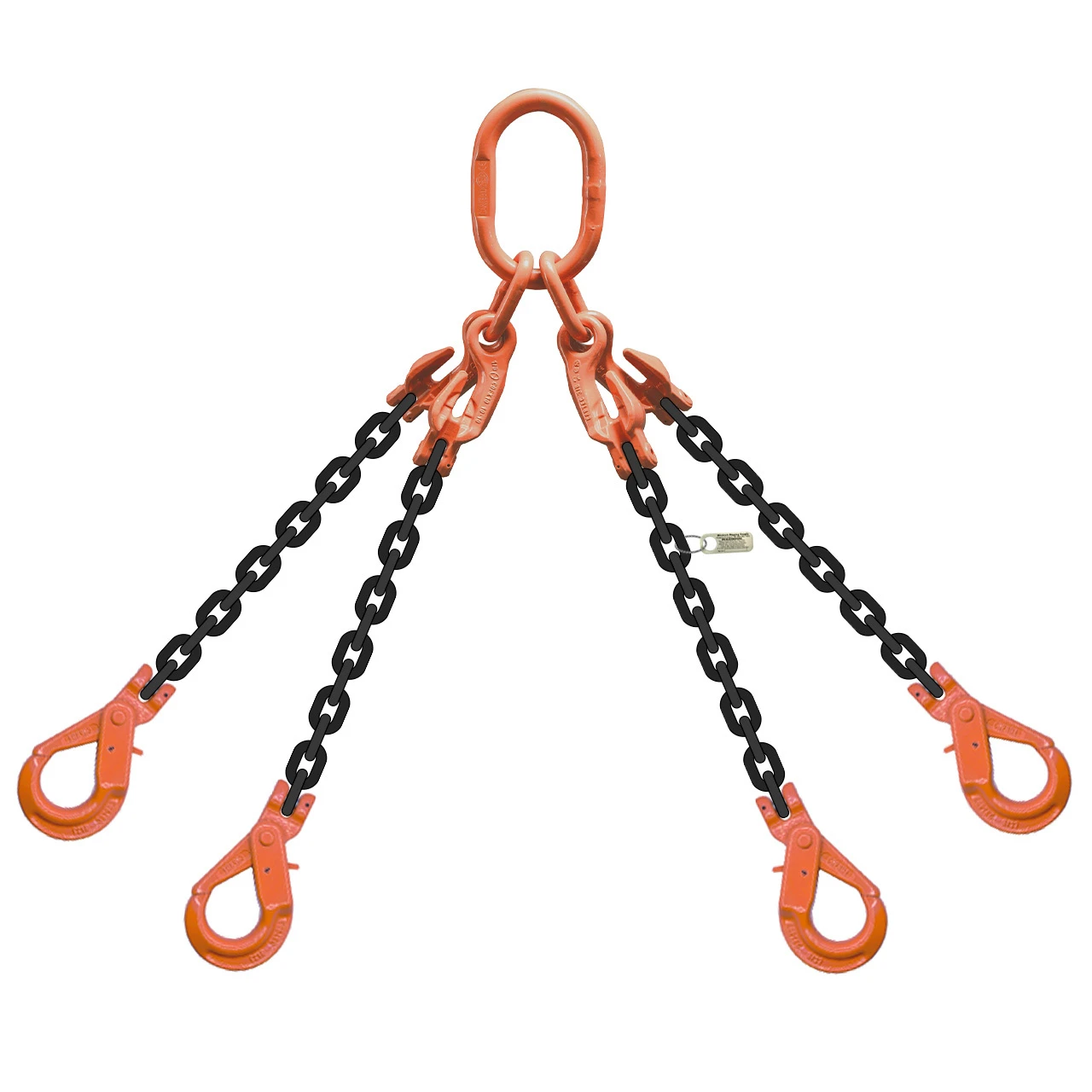

These Grade 100 chain slings feature Pewag's exclusive CDFXA4 master link. This slick and sleek master link features fully integrated and in-line adjusters that give you full capacity, even when your chain is shortened. Additionally, these master links use fewer overall components and therefore weigh less (on average) and are easier to inspect. The end of each chain leg features a self-closing safety hook. Each hook has a solid alloy steel latch that covers the throat opening of the hook. The way the hook attaches to the chain forces the hook to close as soon as a load is applied. To release the latch, you manipulate an easy and ergonomic trigger assembly on the back side of the hook, away from the load. These types of hooks are a favorite for our rough and tumble contractors because they take more of a beating than traditional sling hooks, and the trigger assembly is fully replaceable. These versatile slings are ideal for use off of a crane hook and having four pick points allows for greater load stability.

SKU Chain Diameter Length (ft) WLL 60º (lbs) WLL 45º (lbs) Weight (lbs) Price Quantity
CDFXA4SL-9/32X05-10MC 9/32" (1/4") 5 11200 9100 34.63 $772.36
CDFXA4SL-9/32X10-10MC 9/32" (1/4") 10 11200 9100 50.03 $854.45
CDFXA4SL-9/32X15-10MC 9/32" (1/4") 15 11200 9100 65.43 $936.54
CDFXA4SL-9/32X20-10MC 9/32" (1/4") 20 11200 9100 80.83 $1,018.63

CDFXA4SL-3/8X05-10MC 3/8" 5 22900 18700 63.97 $1,105.57
CDFXA4SL-3/8X10-10MC 3/8" 10 22900 18700 94.17 $1,225.56
CDFXA4SL-3/8X15-10MC 3/8" 15 22900 18700 124.37 $1,345.53
CDFXA4SL-3/8X20-10MC 3/8" 20 22900 18700 154.57 $1,465.53

CDFXA4SL-1/2X05-10MC 1/2" 5 39000 31800 117 $1,773.79
CDFXA4SL-1/2X10-10MC 1/2" 10 39000 31800 167.66 $1,987.38
CDFXA4SL-1/2X15-10MC 1/2" 15 39000 31800 218.26 $2,200.99
CDFXA4SL-1/2X20-10MC 1/2" 20 39000 31800 268.86 $2,414.60

CDFXA4SL-5/8X05-10MC 5/8" 5 58700 47900 196.44 $2,713.60
CDFXA4SL-5/8X10-10MC 5/8" 10 58700 47900 275.24 $2,991.01
CDFXA4SL-5/8X15-10MC 5/8" 15 58700 47900 354.04 $3,268.42
CDFXA4SL-5/8X20-10MC 5/8" 20 58700 47900 432.84 $3,545.83


Products

Chain Diameter : 9/32" (1/4")
Length (ft) : 5
WLL 60º (lbs) : 11200
WLL 45º (lbs) : 9100
Weight (lbs) : 34.63
Price: $772.36
Chain Diameter : 9/32" (1/4")
Length (ft) : 10
WLL 60º (lbs) : 11200
WLL 45º (lbs) : 9100
Weight (lbs) : 50.03
Price: $854.45
Chain Diameter : 9/32" (1/4")
Length (ft) : 15
WLL 60º (lbs) : 11200
WLL 45º (lbs) : 9100
Weight (lbs) : 65.43
Price: $936.54
Chain Diameter : 9/32" (1/4")
Length (ft) : 20
WLL 60º (lbs) : 11200
WLL 45º (lbs) : 9100
Weight (lbs) : 80.83
Price: $1,018.63
Chain Diameter : 3/8"
Length (ft) : 5
WLL 60º (lbs) : 22900
WLL 45º (lbs) : 18700
Weight (lbs) : 63.97
Price: $1,105.57
Chain Diameter : 3/8"
Length (ft) : 10
WLL 60º (lbs) : 22900
WLL 45º (lbs) : 18700
Weight (lbs) : 94.17
Price: $1,225.56
Chain Diameter : 3/8"
Length (ft) : 15
WLL 60º (lbs) : 22900
WLL 45º (lbs) : 18700
Weight (lbs) : 124.37
Price: $1,345.53
Chain Diameter : 3/8"
Length (ft) : 20
WLL 60º (lbs) : 22900
WLL 45º (lbs) : 18700
Weight (lbs) : 154.57
Price: $1,465.53
Chain Diameter : 1/2"
Length (ft) : 5
WLL 60º (lbs) : 39000
WLL 45º (lbs) : 31800
Weight (lbs) : 117
Price: $1,773.79
Chain Diameter : 1/2"
Length (ft) : 10
WLL 60º (lbs) : 39000
WLL 45º (lbs) : 31800
Weight (lbs) : 167.66
Price: $1,987.38
Chain Diameter : 1/2"
Length (ft) : 15
WLL 60º (lbs) : 39000
WLL 45º (lbs) : 31800
Weight (lbs) : 218.26
Price: $2,200.99
Chain Diameter : 1/2"
Length (ft) : 20
WLL 60º (lbs) : 39000
WLL 45º (lbs) : 31800
Weight (lbs) : 268.86
Price: $2,414.60
Chain Diameter : 5/8"
Length (ft) : 5
WLL 60º (lbs) : 58700
WLL 45º (lbs) : 47900
Weight (lbs) : 196.44
Price: $2,713.60
Chain Diameter : 5/8"
Length (ft) : 10
WLL 60º (lbs) : 58700
WLL 45º (lbs) : 47900
Weight (lbs) : 275.24
Price: $2,991.01
Chain Diameter : 5/8"
Length (ft) : 15
WLL 60º (lbs) : 58700
WLL 45º (lbs) : 47900
Weight (lbs) : 354.04
Price: $3,268.42
Chain Diameter : 5/8"
Length (ft) : 20
WLL 60º (lbs) : 58700
WLL 45º (lbs) : 47900
Weight (lbs) : 432.84
Price: $3,545.83
