Pewag PLGW Gamma Lifting Points
Pewag PLGW Gamma Lifting Points – Versatile, Secure & Rotatable

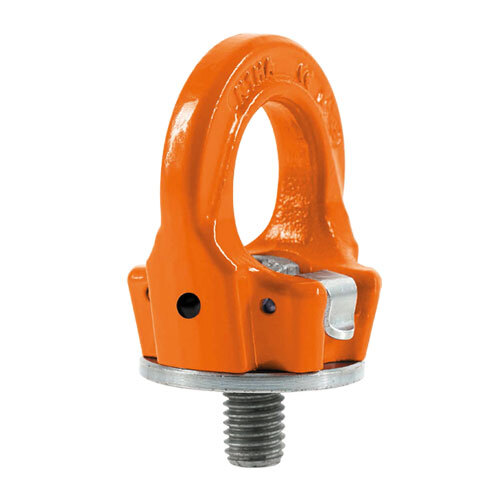

The Pewag PLGW Gamma Lifting Point is a hybrid lifting solution, bridging the gap between traditional eye bolts and swivel hoist rings in both functionality and cost. Unlike a standard eye bolt, it is rated at 100% for a 90-degree load, ensuring optimal performance in off-axis lifting applications. While it does not pivot like a swivel hoist ring, it rotates a full 360 degrees to align with the load direction. Featuring a tool-free, hand-tightened installation, the PLGW Gamma is equipped with a corrosion-protected, 100% crack-tested Grade 10.9 bolt for durability and safety. Available in sizes 3/8" to 1-3/4" (1,100 - 19,800 lbs WLL) for imperial and M8 to M48 (300 - 12,000 kg WLL) for metric, it provides a 4:1 design factor and meets rigorous safety and performance standards. With an integrated sleeve for surface protection and traceability via serial numbers, the PLGW Gamma is a reliable and efficient lifting point for demanding applications.
Click here to download a PDF file for additional specifications.
MPN | Model | Size | WLL (lbs) | WLL (kg) | Weight (lbs) | Approx. Weight (kg) | Price | Quantity | |||
---|---|---|---|---|---|---|---|---|---|---|---|
98049 | PLGW U 3/8 | 3/8"-16 | 1100 | -- | 0.44 | -- | $101.61 |
|
|||
98050 | PLGW U 1/2 | 1/2"-13 | 1500 | -- | 0.71 | -- | $101.25 |
|
|||
98051 | PLGW U 5/8 | 5/8"-11 | 3300 | -- | 0.99 | -- | $121.64 |
|
|||
98052 | PLGW U 3/4 | 3/4"-10 | 4400 | -- | 1.28 | -- | $134.34 |
|
|||
98053 | PLGW U 1 | 1"-8 | 6600 | -- | 2.43 | -- | $182.64 |
|
|||
98054 | PLGW U 1-1/4 | 1-1/4"-7 | 8800 | -- | 4.63 | -- | $261.52 |
|
|||
98055 | PLGW U 1-1/2 | 1-1/2"-6 | 15400 | -- | 8.38 | -- | $377.02 |
|
|||
91753 | PLGW 0.3T | M8 | -- | 300 | -- | 0.2 | $98.62 |
|
|||
91754 | PLGW 0.5T | M10 | -- | 500 | -- | 0.21 | $101.50 | ||||
91755 | PLGW 0.7T | M12 | -- | 700 | -- | 0.32 | $104.98 |
|
|||
91756 | PLGW 1.5T | M16 | -- | 1500 | -- | 0.48 | $120.20 |
|
|||
82184 | PLGW 2.3T | M20 | -- | 2300 | -- | 0.58 | $132.23 |
|
|||
91758 | PLGW 3.2T | M24 | -- | 3200 | -- | 1.1 | $174.53 |
|
|||
91759 | PLGW 4T | M30 | -- | 4000 | -- | 2.2 | $250.58 |
|
|||
91760 | PLGW 7T | M36 | -- | 7000 | -- | 3.8 | $336.59 |
|
|||
91761 | PLGW 9T | M42 | -- | 9000 | -- | 5.7 | $466.30 |
|
|||
91762 | PLGW 12T | M48 | -- | 12000 | -- | 8.9 | $584.50 |
|
