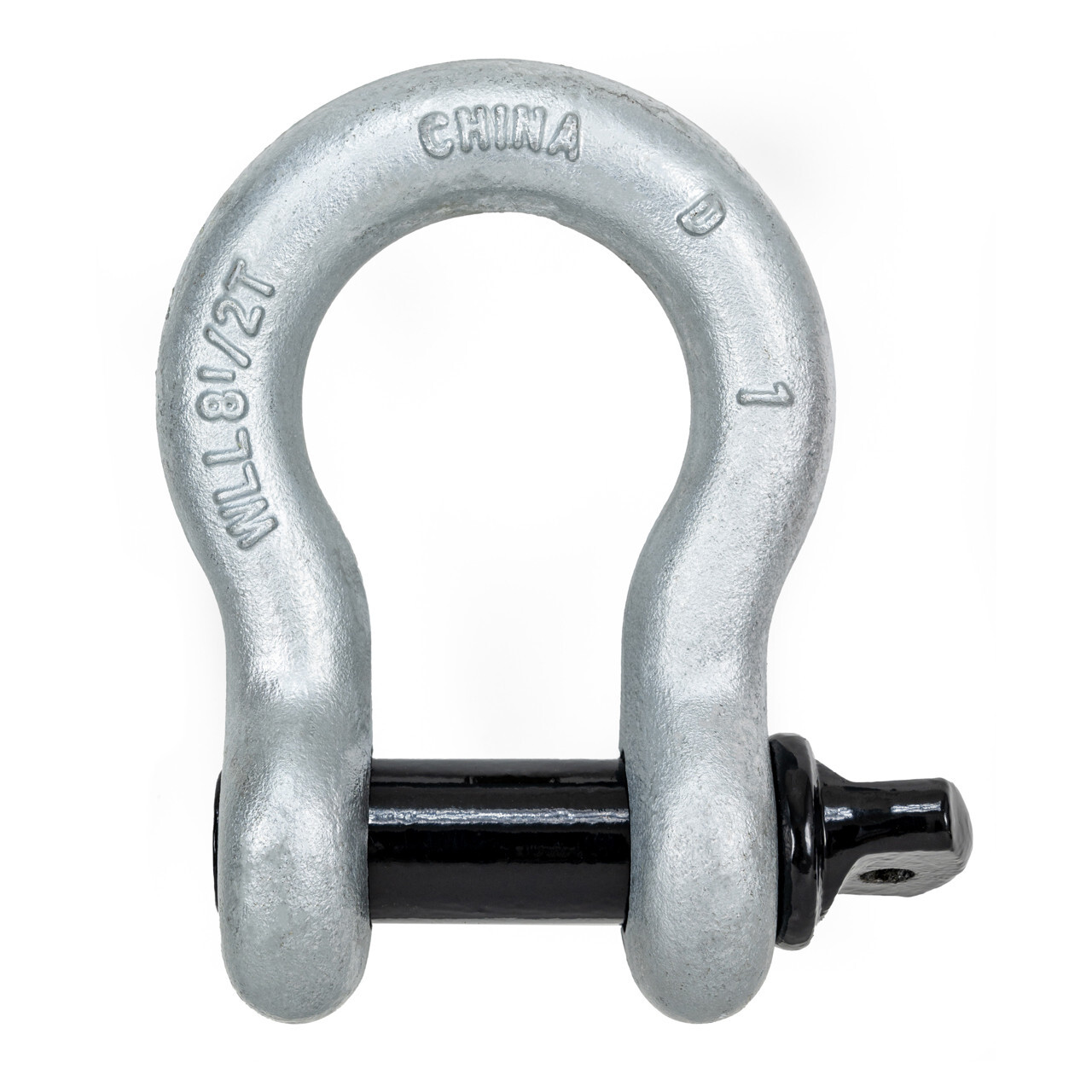

Imported Screw Pin Anchor Shackles
Our imported screw pin anchor shackles are a dependable, budget-friendly solution for non-critical rigging applications where cost is important but reliability still matters. Forged from carbon steel with alloy pins and heat treated for added strength, these shackles are hot-dip galvanized for excellent corrosion protection. Available in sizes from 3/16" to 2-1/2", they offer working load limits ranging from 1/3 ton to 35 tons. Manufactured to meet the general specifications of Federal Spec RR-C-271d, Type IV A, Grade A, Class 2, they are ideal for pick and place work, off-road recovery, towing, and general-purpose rigging. Pin color may vary by production lot, but every shackle is designed to deliver trusted performance where you need it most.
Order Sheet
| SKU | Size | WLL (tons) | Throat Opening | Pin Diameter | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| 5120-0120 | 3/16" | 0.33 | 0.38" | 0.25" | 0.05 | $1.33 |
|
| 5120-0160 | 1/4" | 0.5 | 0.50" | 0.31" | 0.1 | $1.56 |
|
| 5120-0200 | 5/16" | 0.75 | 0.56" | 0.38" | 0.19 | $2.11 |
|
| 5120-0240 | 3/8" | 1 | 0.69" | 0.44" | 0.25 | $2.84 |
|
| 5120-0280 | 7/16" | 1.5 | 0.75" | 0.50" | 0.5 | $3.52 |
|
| 5120-0320 | 1/2" | 2 | 0.81" | 0.63" | 0.75 | $4.96 |
|
| 5120-0400 | 5/8" | 3.25 | 1.06" | 0.75" | 1.44 | $7.98 |
|
| 5120-0480 | 3/4" | 4.75 | 1.25" | 0.88" | 2.5 | $12.43 |
|
| 5120-0560 | 7/8" | 6.5 | 1.44" | 1.00" | 3.5 | $19.34 |
|
| 5120-0640 | 1" | 8.5 | 1.69" | 1.13" | 5.25 | $27.62 |
|
| 5120-0650 | 1-1/8" | 9.5 | 1.88" | 1.25" | 7.25 | $38.34 |
|
| 5120-0660 | 1-1/4" | 12 | 2.00" | 1.38" | 9.75 | $54.98 |
|
| 5120-0670 | 1-3/8" | 13.5 | 2.25" | 1.50" | 13.25 | $75.60 |
|
| 5120-0680 | 1-1/2" | 17 | 2.38" | 1.63" | 17.7 | $93.24 |
|
| 5120-0700 | 1-3/4" | 25 | 2.88" | 2.00" | 30.38 | $205.20 |
|
| 5120-0720 | 2" | 35 | 3.25" | 2.25" | 45 | $263.70 |
|
