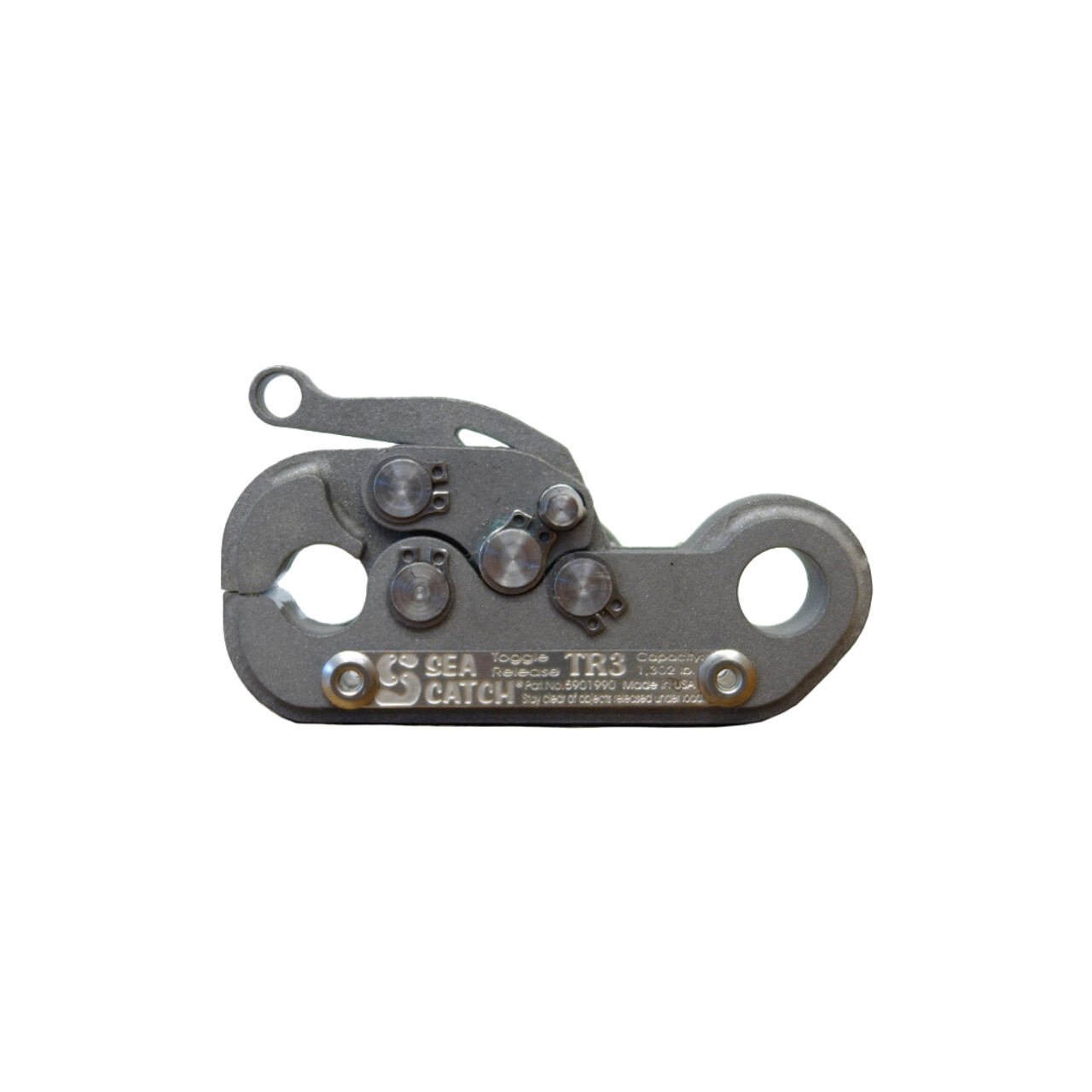

Sea Catch Toggle Release
Sea Catch Toggle Releases – Precision Quick Release Devices
The Sea Catch Toggle Release is an industry-leading quick-release mechanism designed for safe, controlled release of loads under tension, with models ranging from the TR3 to TR18 and working load limits (WLL) from 1,302 lbs (0.65 tons) to 154,240 lbs (77.12 tons). Crafted from aerospace-grade stainless steel, each unit features multi-directional release capabilities (perpendicular or parallel), on-load and off-load releasing, and a hitch pin safety lock for added security. The low-friction, lanyard-style release ensures smooth operation, while the precision-cut, spring-free design enhances durability and reliability in marine, industrial, and rescue applications. With a 5:1 safety factor, all models are engineered for strength but are not rated for overhead lifting. Designs, dimensions, capacities, and weights are subject to variation as products are continuously improved.
Click here to download a PDF file for additional specifications.
| MPN | WLL (lbs) | Shackle Size | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|
| TR3 | 1302 | 1/4" | 0.31 | $510.00 |
|
| TR5 | 3323 | 7/16" | 1.3 | $663.00 |
|
| TR7 | 7042 | 5/8" | 4 | $957.00 |
|
| TR8 | 9574 | 3/4" | 6.3 | $1,691.00 |
|
| TR10 | 15840 | 1" | 12.5 | $2,933.00 |
|
| TR11 | 28000 | 1-3/8" | 32 | $4,272.00 |
|
| TR12 | 32860 | 1-1/2" | 40 | $6,694.00 |
|
| TR15 | 50200 | 1-3/4" | 69 | $9,652.00 |
|
| TR16 | 63380 | 2" | 108 | $13,356.00 |
|
| TR17 | 94740 | 2-1/2" | 197 | $21,420.00 |
|
| TR18 | 154240 | 3" | 360 | $42,267.00 |
|
