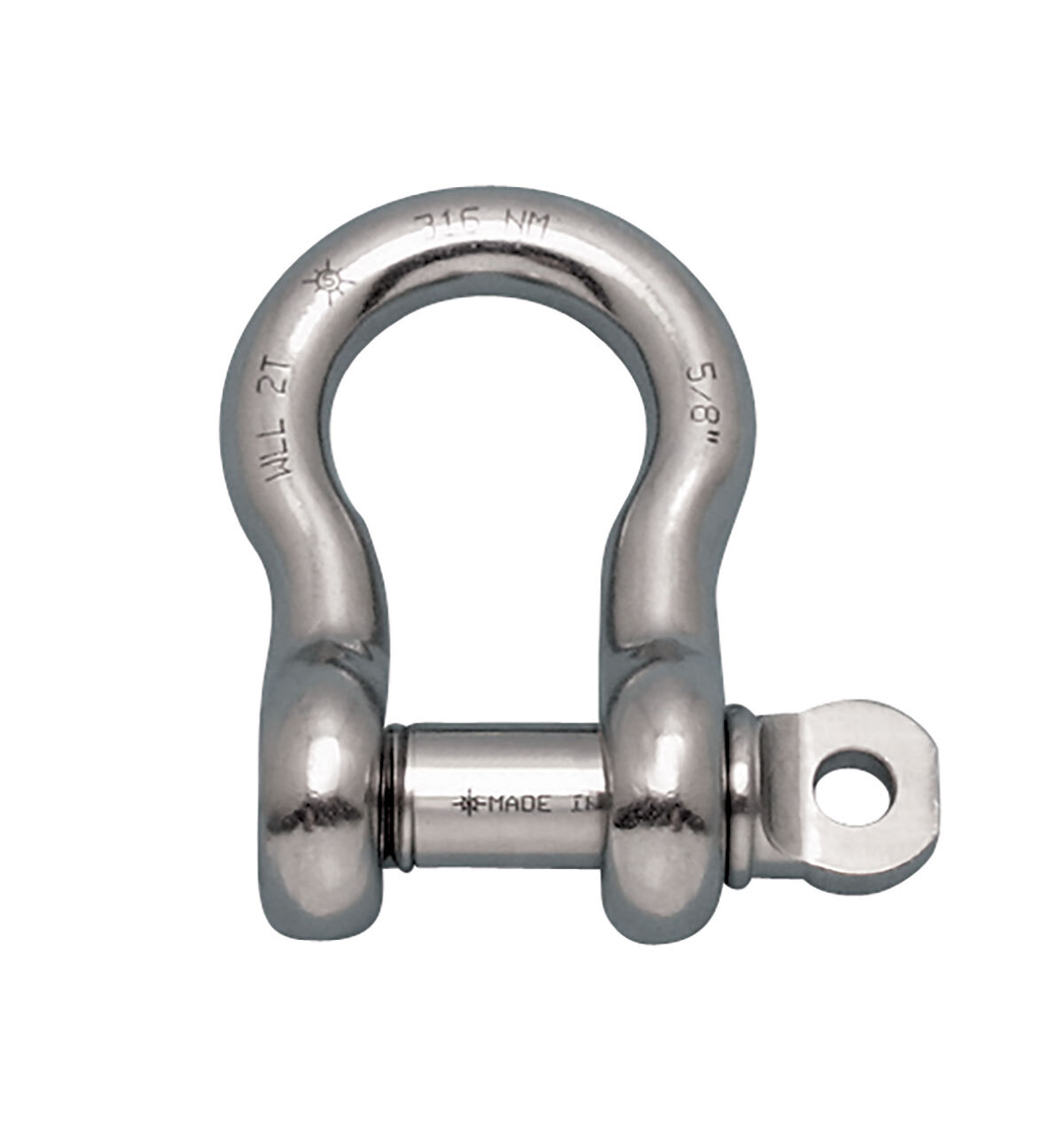

Bishop Lifting offers Suncor screw pin anchor shackles (S0116-FS series) that are drop forged from 316-NM stainless steel for superior strength, corrosion resistance, and long-term performance in saltwater and harsh marine environments. Designed with an oversize screw pin for added security, these anchor shackles are commonly used to connect anchors to chain in marine, offshore, and industrial applications. Available in sizes from 3/16″ through 1-1/4″, with working load limits ranging from 650 lbs to 14,000 lbs, Suncor anchor shackles are load rated and manufactured to meet Federal Specification RR-C-271, ASME B30.26, and MIL-DTL-32655 requirements.
Order Sheet
| SKU | Size | WLL (tons) | Throat Opening | Pin Diameter | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| SUN-S0116-FS05 | 3/16" | 0.33 | 0.41" | 0.26" | 0.06 | $3.30 |
|
| SUN-S0116-FS07 | 1/4" | 0.5 | 0.47" | 0.31" | 0.1 | $5.50 |
|
| SUN-S0116-FS08 | 5/16" | 0.65 | 0.53" | 0.38" | 0.16 | $8.94 |
|
| SUN-S0116-FS10 | 3/8" | 0.75 | 0.66" | 0.44" | 0.29 | $14.13 |
|
| SUN-S0116-FS12 | 7/16" | 1 | 0.72" | 0.50" | 0.42 | $18.81 |
|
| SUN-S0116-FS13 | 1/2" | 1.5 | 0.82" | 0.63" | 0.67 | $28.38 |
|
| SUN-S0116-FS16 | 5/8" | 2 | 1.02" | 0.75" | 1.27 | $53.38 |
|
| SUN-S0116-FS20 | 3/4" | 3 | 1.25" | 0.88" | 2.11 | $90.81 |
|
| SUN-S0116-FS22 | 7/8" | 4 | 1.48" | 1.00" | 3.23 | $128.88 |
|
| SUN-S0116-FS25 | 1" | 5 | 1.70" | 1.13" | 4.62 | $185.31 |
|
| SUN-S0116-FS32 | 1-1/4" | 7 | 2.03" | 1.38" | 9.58 | $423.75 |
|
Products
Bishop Lifting offers Suncor screw pin anchor shackles (S0116-FS series) that are drop forged from 316-NM stainless steel for superior strength, corrosion resistance, and long-term performance in saltwater and harsh marine environments. Designed with an oversize screw pin for added security, these anchor shackles are commonly used to connect anchors to chain in marine, offshore, and industrial applications. Available in sizes from 3/16″ through 1-1/4″, with working load limits ranging from 650 lbs to 14,000 lbs, Suncor anchor shackles are load rated and manufactured to meet Federal Specification RR-C-271, ASME B30.26, and MIL-DTL-32655 requirements.
