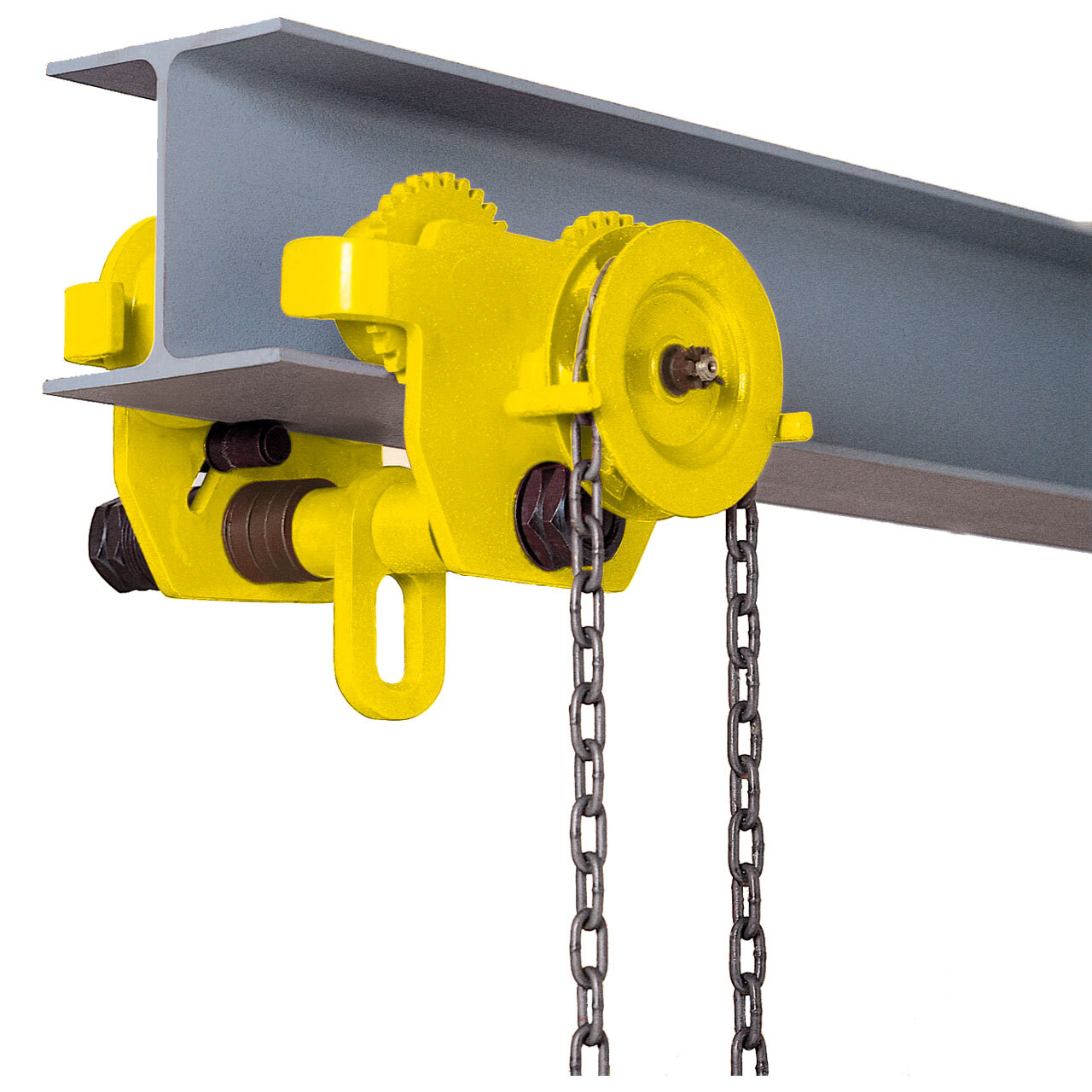

Tuffy GT Geared Trolleys – Precision-Controlled Load Movement
The Tuffy GT geared trolleys are designed for precise load positioning and controlled movement along monorails and fabricated beams, making them ideal for mining, oil & gas, heavy construction, and marine industries. Featuring precision ball-bearing wheels with a machined tread, these trolleys ensure smooth operation with minimal resistance. The geared mechanism allows for effortless manual movement, making it easier to transport heavy loads with greater accuracy. Built with rugged steel construction, an adjustable beam width range of 2.52 to 8.27 inches, and available in capacities from 1 to 20 tons, the GT series meets ASME/ANSI B30 standards where applicable, ensuring safety, durability, and long-term performance.
Click here to download a PDF file for additional specifications.
Order Sheet
| SKU | WLL (tons) | Beam Size | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|
| TUF-GT10 | 1 | 2.52" - 8.27" | 39.6 | ||
| TUF-GT20 | 2 | 3.46" - 8.27" | 59.4 | ||
| TUF-GT30 | 3 | 4.02" - 8.27" | 94.6 | ||
| TUF-GT50 | 5 | 4.49" - 8.27" | 132 | ||
| TUF-GT100 | 10 | 4.92" - 8.27" | 231 | ||
| TUF-GT200 | 20 | 4.92" - 8.27" | 502 |
