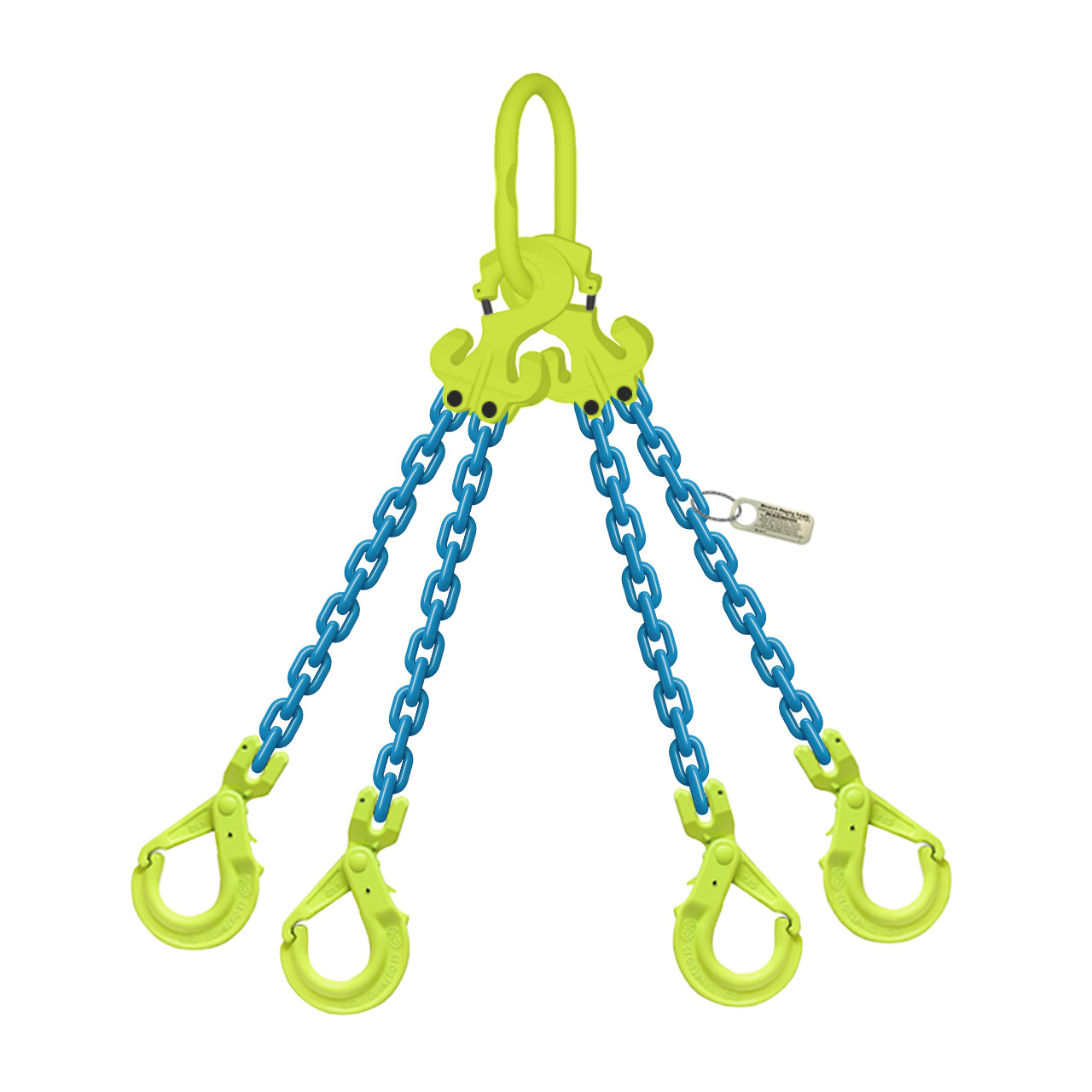

TG4-GBK GrabiQ Chain Slings
The new innovative Grade 100 chain lifting system!
Sweden's Gunnebo Lifting has introduced their new GrabiQ system. A new system of lifting based on grade 100 chain and a fewer number of powerful multi-function components. The result is a both simpler and safer system versus existing lifting systems.
A four-leg sling with a shortening function, which previously required up to fifteen separate components, can now be handled with just three. Available in sizes ranging from 5/16" - 5/8" (8 - 16mm), the GrabiQ system offers improved safety, greater durability, and shorter assembly times.
| SKU | Chain Diameter | Length (ft) | WLL 60º (lbs) | WLL 45º (lbs) | Weight (lbs) | Price | Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TG4-GBK-516X05-10 | 5/16" | 5 | 14800 | 12100 | 36.5 | $1,179.02 |
|
||||
| TG4-GBK-516X10-10 | 5/16" | 10 | 14800 | 12100 | 55.9 | $1,320.98 |
|
||||
| TG4-GBK-516X15-10 | 5/16" | 15 | 14800 | 12100 | 75.3 | $1,462.94 |
|
||||
| TG4-GBK-516X20-10 | 5/16" | 20 | 14800 | 12100 | 94.7 | $1,604.90 |
|
||||
| TG4-GBK-3/8X05-10 | 3/8" | 5 | 22900 | 18700 | 60.8 | $1,826.77 |
|
||||
| TG4-GBK-3/8X10-10 | 3/8" | 10 | 22900 | 18700 | 91 | $1,984.69 |
|
||||
| TG4-GBK-3/8X15-10 | 3/8" | 15 | 22900 | 18700 | 121 | $2,142.61 |
|
||||
| TG4-GBK-3/8X20-10 | 3/8" | 20 | 22900 | 18700 | 151.4 | $2,300.53 |
|
||||
| TG4-GBK-1/2X05-10 | 1/2" | 5 | 39000 | 31800 | 113 | $2,599.00 |
|
||||
| TG4-GBK-1/2X10-10 | 1/2" | 10 | 39000 | 31800 | 163.9 | $2,869.48 |
|
||||
| TG4-GBK-1/2X15-10 | 1/2" | 15 | 39000 | 31800 | 214.5 | $3,139.96 |
|
||||
| TG4-GBK-1/2X20-10 | 1/2" | 20 | 39000 | 31800 | 265.1 | $3,410.44 |
|
||||
| TG4-GBK-5/8X05-10 | 5/8" | 5 | 58700 | 47900 | 184.5 | $3,623.05 |
|
||||
| TG4-GBK-5/8X10-10 | 5/8" | 10 | 58700 | 47900 | 263.3 | $4,063.21 |
|
||||
| TG4-GBK-5/8X15-10 | 5/8" | 15 | 58700 | 47900 | 342.1 | $4,503.37 |
|
||||
| TG4-GBK-5/8X20-10 | 5/8" | 20 | 58700 | 47900 | 420.9 | $4,943.53 |
|
||||
Products
SKU:
TG4-GBK-516X05-10
Chain Diameter
:
5/16"
Length (ft)
:
5
WLL 60º (lbs)
:
14800
WLL 45º (lbs)
:
12100
Weight (lbs)
:
36.5
Price:
$1,179.02
SKU:
TG4-GBK-516X10-10
Chain Diameter
:
5/16"
Length (ft)
:
10
WLL 60º (lbs)
:
14800
WLL 45º (lbs)
:
12100
Weight (lbs)
:
55.9
Price:
$1,320.98
SKU:
TG4-GBK-516X15-10
Chain Diameter
:
5/16"
Length (ft)
:
15
WLL 60º (lbs)
:
14800
WLL 45º (lbs)
:
12100
Weight (lbs)
:
75.3
Price:
$1,462.94
SKU:
TG4-GBK-516X20-10
Chain Diameter
:
5/16"
Length (ft)
:
20
WLL 60º (lbs)
:
14800
WLL 45º (lbs)
:
12100
Weight (lbs)
:
94.7
Price:
$1,604.90
SKU:
TG4-GBK-3/8X05-10
Chain Diameter
:
3/8"
Length (ft)
:
5
WLL 60º (lbs)
:
22900
WLL 45º (lbs)
:
18700
Weight (lbs)
:
60.8
Price:
$1,826.77
SKU:
TG4-GBK-3/8X10-10
Chain Diameter
:
3/8"
Length (ft)
:
10
WLL 60º (lbs)
:
22900
WLL 45º (lbs)
:
18700
Weight (lbs)
:
91
Price:
$1,984.69
SKU:
TG4-GBK-3/8X15-10
Chain Diameter
:
3/8"
Length (ft)
:
15
WLL 60º (lbs)
:
22900
WLL 45º (lbs)
:
18700
Weight (lbs)
:
121
Price:
$2,142.61
SKU:
TG4-GBK-3/8X20-10
Chain Diameter
:
3/8"
Length (ft)
:
20
WLL 60º (lbs)
:
22900
WLL 45º (lbs)
:
18700
Weight (lbs)
:
151.4
Price:
$2,300.53
SKU:
TG4-GBK-1/2X05-10
Chain Diameter
:
1/2"
Length (ft)
:
5
WLL 60º (lbs)
:
39000
WLL 45º (lbs)
:
31800
Weight (lbs)
:
113
Price:
$2,599.00
SKU:
TG4-GBK-1/2X10-10
Chain Diameter
:
1/2"
Length (ft)
:
10
WLL 60º (lbs)
:
39000
WLL 45º (lbs)
:
31800
Weight (lbs)
:
163.9
Price:
$2,869.48
SKU:
TG4-GBK-1/2X15-10
Chain Diameter
:
1/2"
Length (ft)
:
15
WLL 60º (lbs)
:
39000
WLL 45º (lbs)
:
31800
Weight (lbs)
:
214.5
Price:
$3,139.96
SKU:
TG4-GBK-1/2X20-10
Chain Diameter
:
1/2"
Length (ft)
:
20
WLL 60º (lbs)
:
39000
WLL 45º (lbs)
:
31800
Weight (lbs)
:
265.1
Price:
$3,410.44
SKU:
TG4-GBK-5/8X05-10
Chain Diameter
:
5/8"
Length (ft)
:
5
WLL 60º (lbs)
:
58700
WLL 45º (lbs)
:
47900
Weight (lbs)
:
184.5
Price:
$3,623.05
SKU:
TG4-GBK-5/8X10-10
Chain Diameter
:
5/8"
Length (ft)
:
10
WLL 60º (lbs)
:
58700
WLL 45º (lbs)
:
47900
Weight (lbs)
:
263.3
Price:
$4,063.21
SKU:
TG4-GBK-5/8X15-10
Chain Diameter
:
5/8"
Length (ft)
:
15
WLL 60º (lbs)
:
58700
WLL 45º (lbs)
:
47900
Weight (lbs)
:
342.1
Price:
$4,503.37
SKU:
TG4-GBK-5/8X20-10
Chain Diameter
:
5/8"
Length (ft)
:
20
WLL 60º (lbs)
:
58700
WLL 45º (lbs)
:
47900
Weight (lbs)
:
420.9
Price:
$4,943.53
