M&W Fixed Spreader Beams

M&W Fixed Spreader Beams – Sturdy, Reliable Load Stabilization

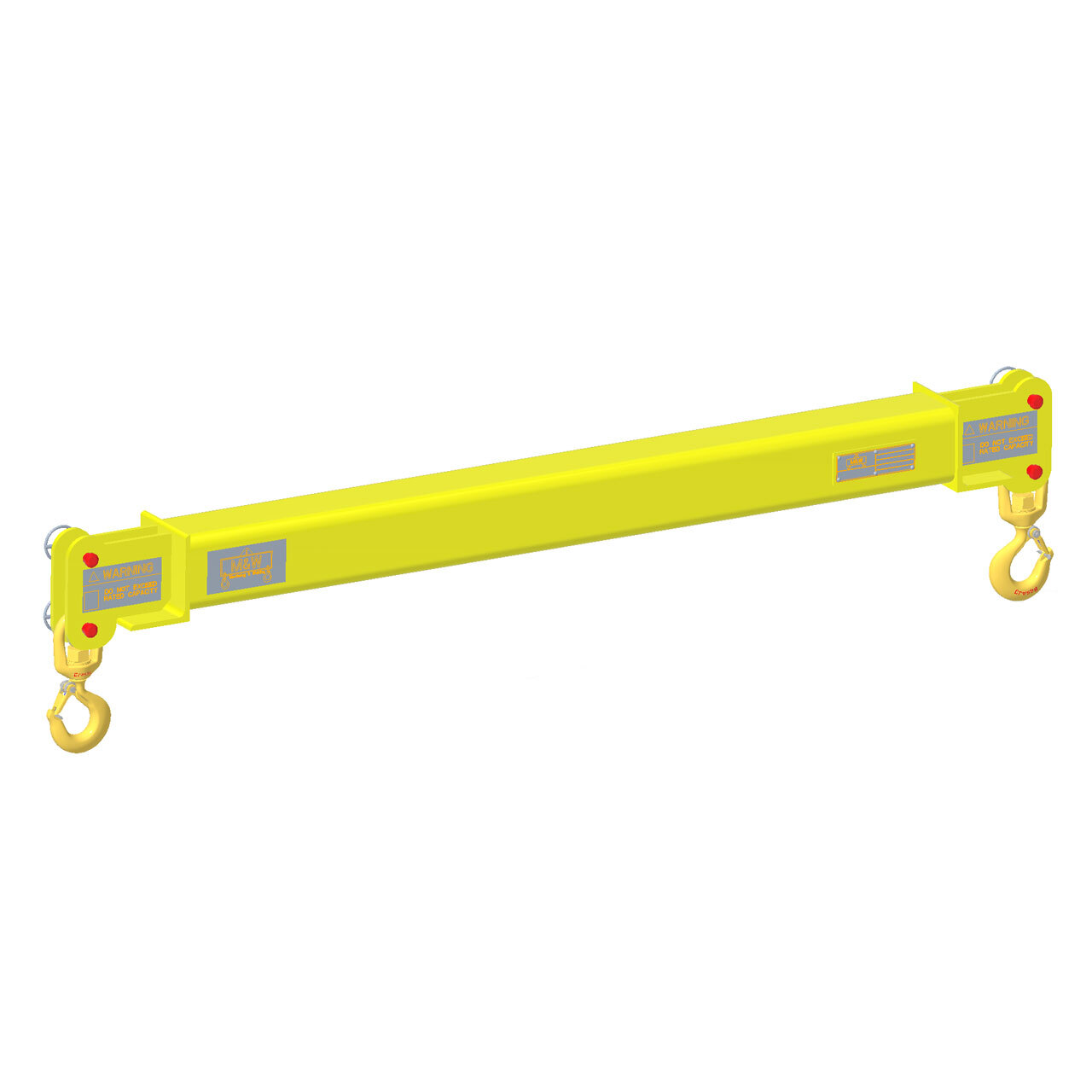

The M&W Fixed Spreader Beam provides stable, two-point lifting for long or unbalanced loads, making it ideal for construction, industrial, and warehouse applications. With capacities of 4,000 to 20,000 lbs and fixed spreads from 4 to 30 feet, it enhances load control and weight distribution. Each beam is manufactured in the U.S.A., meets ASME B30.20 and OSHA regulations, and comes painted safety yellow for high visibility. Swivel latch hooks are included, but top rigging (sold separately) is required for proper use. Compatible top rigging options include chain, wire rope, or polyester round sling bridles, with a minimum 45° rigging angle required (60° recommended) for safe operation. Each beam is proof-tested with certification, ensuring reliability for critical lifting applications. Custom designs are available upon request.

Click here to download a PDF file for additional specifications.

MPN WLL (tons) Spread (ft) Weight (lbs) Price Quantity
13094 2 4 30 $1,329.52
Select Options
13097 2 6 50 $1,401.77
Select Options
13100 2 8 90 $1,589.64
Select Options
13103 2 10 110 $1,632.99
Select Options
13106 2 12 130 $1,734.15
Select Options
13109 2 16 172 $1,950.92
Select Options
13112 2 20 215 $2,109.89
Select Options

13116 5 4 36 $1,589.64
Select Options
13119 5 6 87 $1,661.90
Select Options
13122 5 8 112 $1,705.25
Select Options
13125 5 10 140 $1,849.76
Select Options
13128 5 12 190 $2,326.65
Select Options
13131 5 16 250 $2,644.58
Select Options
13134 5 20 306 $2,948.06
Select Options

13138 10 4 55 $1,994.28
Select Options
13141 10 6 115 $2,239.95
Select Options
13144 10 8 140 $2,355.56
Select Options
13147 10 10 170 $2,471.17
Select Options
13150 10 12 195 $2,586.78
Select Options
13153 10 16 380 $3,511.66
Select Options
13156 10 20 470 $3,858.49
Select Options

Products

MPN: 13103
WLL (tons) : 2
Spread (ft) : 10
Weight (lbs) : 110
Price: $1,632.99
Select Options
MPN: 13106
WLL (tons) : 2
Spread (ft) : 12
Weight (lbs) : 130
Price: $1,734.15
Select Options
MPN: 13109
WLL (tons) : 2
Spread (ft) : 16
Weight (lbs) : 172
Price: $1,950.92
Select Options
MPN: 13112
WLL (tons) : 2
Spread (ft) : 20
Weight (lbs) : 215
Price: $2,109.89
Select Options
MPN: 13125
WLL (tons) : 5
Spread (ft) : 10
Weight (lbs) : 140
Price: $1,849.76
Select Options
MPN: 13128
WLL (tons) : 5
Spread (ft) : 12
Weight (lbs) : 190
Price: $2,326.65
Select Options
MPN: 13131
WLL (tons) : 5
Spread (ft) : 16
Weight (lbs) : 250
Price: $2,644.58
Select Options
MPN: 13134
WLL (tons) : 5
Spread (ft) : 20
Weight (lbs) : 306
Price: $2,948.06
Select Options
MPN: 13141
WLL (tons) : 10
Spread (ft) : 6
Weight (lbs) : 115
Price: $2,239.95
Select Options
MPN: 13144
WLL (tons) : 10
Spread (ft) : 8
Weight (lbs) : 140
Price: $2,355.56
Select Options
MPN: 13147
WLL (tons) : 10
Spread (ft) : 10
Weight (lbs) : 170
Price: $2,471.17
Select Options
MPN: 13150
WLL (tons) : 10
Spread (ft) : 12
Weight (lbs) : 195
Price: $2,586.78
Select Options
MPN: 13153
WLL (tons) : 10
Spread (ft) : 16
Weight (lbs) : 380
Price: $3,511.66
Select Options
MPN: 13156
WLL (tons) : 10
Spread (ft) : 20
Weight (lbs) : 470
Price: $3,858.49
Select Options
