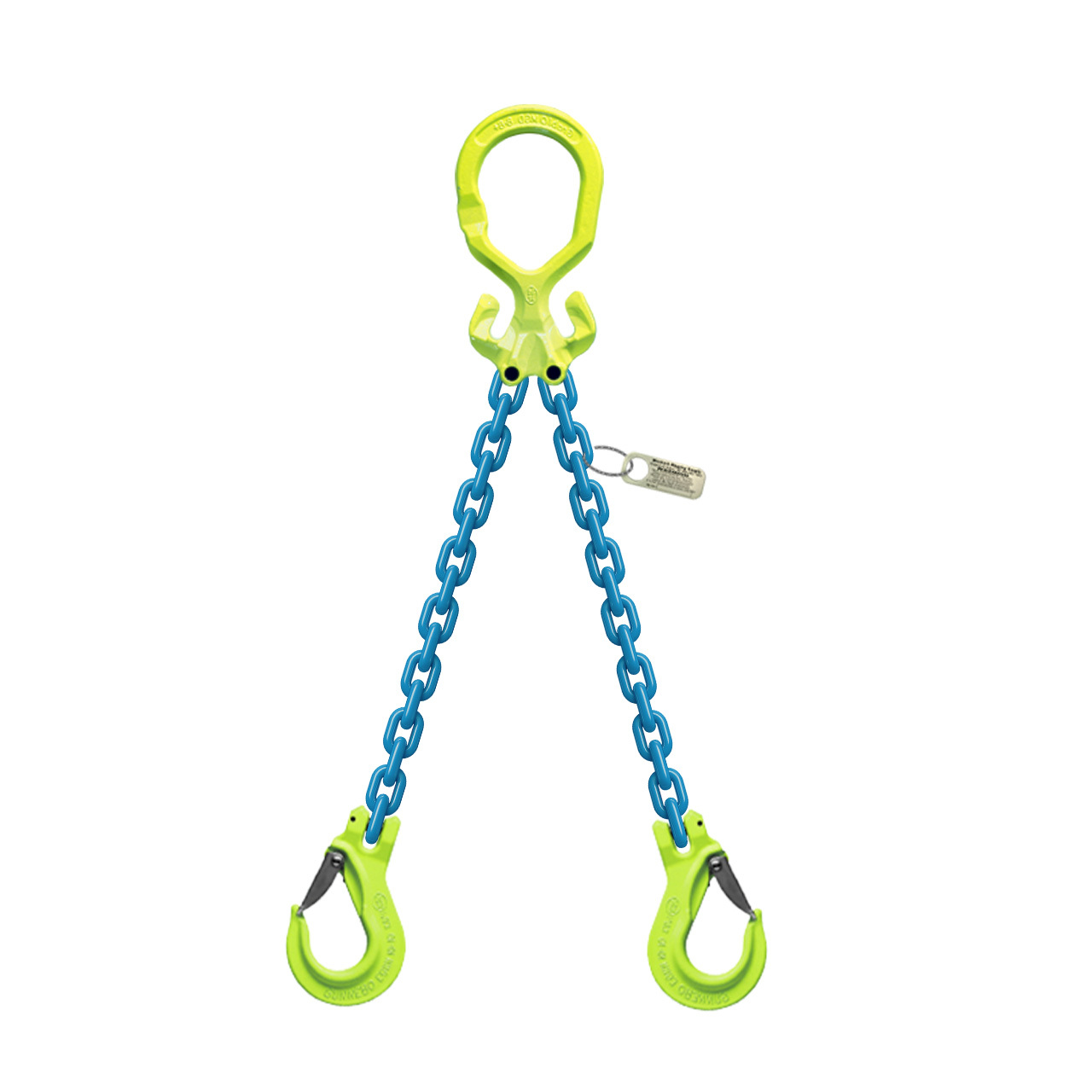

MGD-EGKN GrabiQ Chain Slings
The new innovative Grade 100 chain lifting system!
Sweden's Gunnebo Lifting has introduced their new GrabiQ system. A new system of lifting based on grade 100 chain and a fewer number of powerful multi-function components. The result is a both simpler and safer system versus existing lifting systems.
A four-leg sling with a shortening function, which previously required up to fifteen separate components, can now be handled with just three. Available in sizes ranging from 5/16" - 5/8" (8 - 16mm), the GrabiQ system offers improved safety, greater durability, and shorter assembly times.
| SKU | Chain Diameter | Length (ft) | WLL 60º (lbs) | WLL 45º (lbs) | Weight (lbs) | Price | Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MGD2-EGKN51605-G100 | 5/16" | 5 | 9900 | 8100 | 15.2 | $374.00 |
|
||||
| MGD2-EGKN51610-G100 | 5/16" | 10 | 9900 | 8100 | 24.9 | $468.00 |
|
||||
| MGD2-EGKN51615-G100 | 5/16" | 15 | 9900 | 8100 | 34.6 | $561.00 |
|
||||
| MGD2-EGKN51620-G100 | 5/16" | 20 | 9900 | 8100 | 44.3 | $653.00 |
|
||||
| MGD2-EGKN38X05-G100 | 3/8" | 5 | 15200 | 12400 | 25.2 | $578.00 |
|
||||
| MGD2-EGKN38X10-G100 | 3/8" | 10 | 15200 | 12400 | 40.3 | $680.00 |
|
||||
| MGD2-EGKN38X15-G100 | 3/8" | 15 | 15200 | 12400 | 55.4 | $781.00 |
|
||||
| MGD2-EGKN38X20-G100 | 3/8" | 20 | 15200 | 12400 | 70.5 | $883.00 |
|
||||
| MGD2-EGKN12X05-G100 | 1/2" | 5 | 26000 | 21200 | 45.3 | $811.00 |
|
||||
| MGD2-EGKN12X10-G100 | 1/2" | 10 | 26000 | 21200 | 70.6 | $979.00 |
|
||||
| MGD2-EGKN12X15-G100 | 1/2" | 15 | 26000 | 21200 | 96 | $1,149.00 |
|
||||
| MGD2-EGKN12X20-G100 | 1/2" | 20 | 26000 | 21200 | 121 | $1,317.00 |
|
||||
| MGD2-EGKN5805-G100 | 5/8" | 5 | 39100 | 32000 | 76 | $1,242.00 |
|
||||
| MGD2-EGKN5810-G100 | 5/8" | 10 | 39100 | 32000 | 115 | $1,525.00 |
|
||||
| MGD2-EGKN5815-G100 | 5/8" | 15 | 39100 | 32000 | 154.8 | $1,809.00 |
|
||||
| MGD2-EGKN5820-G100 | 5/8" | 20 | 39100 | 32000 | 194.2 | $2,090.00 |
|
||||
Products
SKU:
MGD2-EGKN51605-G100
Chain Diameter
:
5/16"
Length (ft)
:
5
WLL 60º (lbs)
:
9900
WLL 45º (lbs)
:
8100
Weight (lbs)
:
15.2
Price:
$374.00
SKU:
MGD2-EGKN51610-G100
Chain Diameter
:
5/16"
Length (ft)
:
10
WLL 60º (lbs)
:
9900
WLL 45º (lbs)
:
8100
Weight (lbs)
:
24.9
Price:
$468.00
SKU:
MGD2-EGKN51615-G100
Chain Diameter
:
5/16"
Length (ft)
:
15
WLL 60º (lbs)
:
9900
WLL 45º (lbs)
:
8100
Weight (lbs)
:
34.6
Price:
$561.00
SKU:
MGD2-EGKN51620-G100
Chain Diameter
:
5/16"
Length (ft)
:
20
WLL 60º (lbs)
:
9900
WLL 45º (lbs)
:
8100
Weight (lbs)
:
44.3
Price:
$653.00
SKU:
MGD2-EGKN38X05-G100
Chain Diameter
:
3/8"
Length (ft)
:
5
WLL 60º (lbs)
:
15200
WLL 45º (lbs)
:
12400
Weight (lbs)
:
25.2
Price:
$578.00
SKU:
MGD2-EGKN38X10-G100
Chain Diameter
:
3/8"
Length (ft)
:
10
WLL 60º (lbs)
:
15200
WLL 45º (lbs)
:
12400
Weight (lbs)
:
40.3
Price:
$680.00
SKU:
MGD2-EGKN38X15-G100
Chain Diameter
:
3/8"
Length (ft)
:
15
WLL 60º (lbs)
:
15200
WLL 45º (lbs)
:
12400
Weight (lbs)
:
55.4
Price:
$781.00
SKU:
MGD2-EGKN38X20-G100
Chain Diameter
:
3/8"
Length (ft)
:
20
WLL 60º (lbs)
:
15200
WLL 45º (lbs)
:
12400
Weight (lbs)
:
70.5
Price:
$883.00
SKU:
MGD2-EGKN12X05-G100
Chain Diameter
:
1/2"
Length (ft)
:
5
WLL 60º (lbs)
:
26000
WLL 45º (lbs)
:
21200
Weight (lbs)
:
45.3
Price:
$811.00
SKU:
MGD2-EGKN12X10-G100
Chain Diameter
:
1/2"
Length (ft)
:
10
WLL 60º (lbs)
:
26000
WLL 45º (lbs)
:
21200
Weight (lbs)
:
70.6
Price:
$979.00
SKU:
MGD2-EGKN12X15-G100
Chain Diameter
:
1/2"
Length (ft)
:
15
WLL 60º (lbs)
:
26000
WLL 45º (lbs)
:
21200
Weight (lbs)
:
96
Price:
$1,149.00
SKU:
MGD2-EGKN12X20-G100
Chain Diameter
:
1/2"
Length (ft)
:
20
WLL 60º (lbs)
:
26000
WLL 45º (lbs)
:
21200
Weight (lbs)
:
121
Price:
$1,317.00
SKU:
MGD2-EGKN5805-G100
Chain Diameter
:
5/8"
Length (ft)
:
5
WLL 60º (lbs)
:
39100
WLL 45º (lbs)
:
32000
Weight (lbs)
:
76
Price:
$1,242.00
SKU:
MGD2-EGKN5810-G100
Chain Diameter
:
5/8"
Length (ft)
:
10
WLL 60º (lbs)
:
39100
WLL 45º (lbs)
:
32000
Weight (lbs)
:
115
Price:
$1,525.00
SKU:
MGD2-EGKN5815-G100
Chain Diameter
:
5/8"
Length (ft)
:
15
WLL 60º (lbs)
:
39100
WLL 45º (lbs)
:
32000
Weight (lbs)
:
154.8
Price:
$1,809.00
SKU:
MGD2-EGKN5820-G100
Chain Diameter
:
5/8"
Length (ft)
:
20
WLL 60º (lbs)
:
39100
WLL 45º (lbs)
:
32000
Weight (lbs)
:
194.2
Price:
$2,090.00
