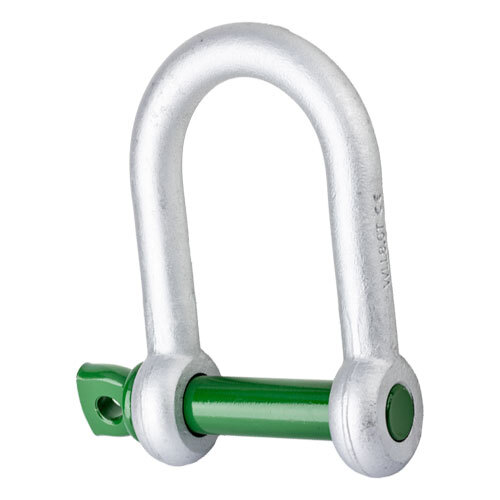

Van Beest Green Pin® BigMouth Dee Shackles</strong> are designed for lifting applications where standard shackles fall short. With an extended inside length and a wider mouth opening, these shackles make it possible to connect to non-standard lifting points such as steel sheet pile walls and other challenging rigging setups. Built from quenched and tempered Grade 8 alloy steel, hot-dip galvanized for durability, and carrying a 5:1 safety factor, Green Pin® BigMouth Dee Shackles deliver strength, versatility, and reliability in demanding conditions.
Order Sheet
| SKU | Size | WLL (tons) | Throat Opening | Pin Diameter | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| VB-G4551-58 | 5/8" | 3.2 | 2.28" | 0.75" | 1.86 | $66.15 |
|
| VB-G4551-34 | 3/4" | 4.6 | 2.75" | 0.88" | 3 | $75.60 |
|
| VB-G4551-1 | 1" | 8.6 | 3.28" | 1.13" | 6.24 | $85.05 |
|
| VB-G4551-114 | 1-1/4" | 12.7 | 3.91" | 1.38" | 12 | $156.59 |
|
| VB-G4551-112 | 1-1/2" | 15.5 | 4.53" | 1.63" | 20 | $212.39 |
|
| VB-G4551-134 | 1-3/4" | 22.7 | 5.28" | 2.00" | 32.8 | $378.00 |
|
