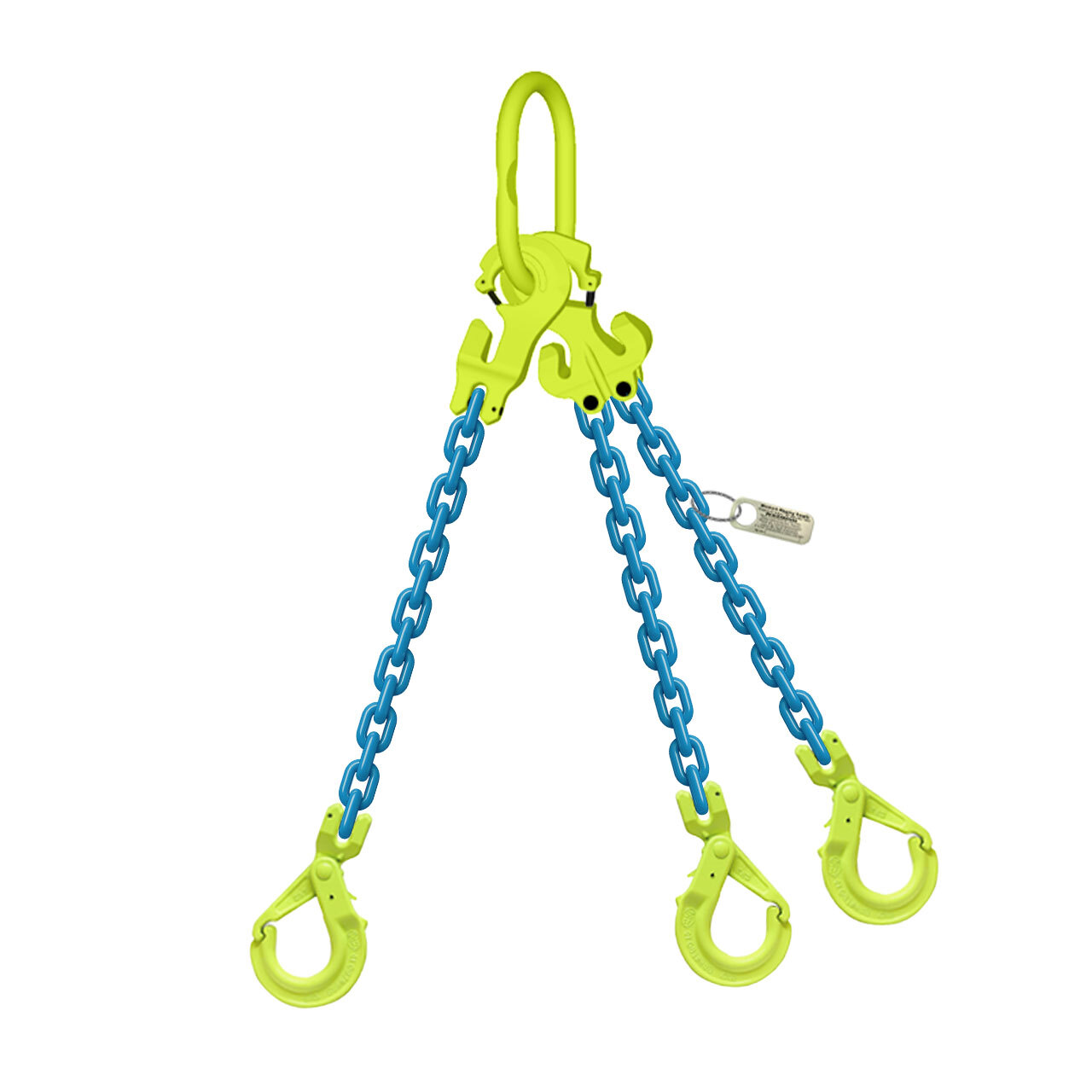

TG3-GBK GrabiQ Chain Slings
The new innovative Grade 100 chain lifting system!
Sweden's Gunnebo Lifting has introduced their new GrabiQ system. A new system of lifting based on grade 100 chain and a fewer number of powerful multi-function components. The result is a both simpler and safer system versus existing lifting systems.
A four-leg sling with a shortening function, which previously required up to fifteen separate components, can now be handled with just three. Available in sizes ranging from 5/16" - 5/8" (8 - 16mm), the GrabiQ system offers improved safety, greater durability, and shorter assembly times.
| SKU | Chain Diameter | Length (ft) | WLL 60º (lbs) | WLL 45º (lbs) | Weight (lbs) | Price | Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TG3-GBK-516X05-10 | 5/16" | 5 | 14800 | 12100 | 28.55 | $900.35 |
|
||||
| TG3-GBK-516X10-10 | 5/16" | 10 | 14800 | 12100 | 43.1 | $1,006.82 |
|
||||
| TG3-GBK-516X15-10 | 5/16" | 15 | 14800 | 12100 | 57.65 | $1,113.29 |
|
||||
| TG3-GBK-516X20-10 | 5/16" | 20 | 14800 | 12100 | 72.2 | $1,219.76 |
|
||||
| TG3-GBK-3/8X05-10 | 3/8" | 5 | 22900 | 18700 | 47.75 | $1,337.20 |
|
||||
| TG3-GBK-3/8X10-10 | 3/8" | 10 | 22900 | 18700 | 70.4 | $1,455.64 |
|
||||
| TG3-GBK-3/8X15-10 | 3/8" | 15 | 22900 | 18700 | 93 | $1,574.08 |
|
||||
| TG3-GBK-3/8X20-10 | 3/8" | 20 | 22900 | 18700 | 116 | $1,692.52 |
|
||||
| TG3-GBK-1/2X05-10 | 1/2" | 5 | 39000 | 31800 | 89 | $1,950.63 |
|
||||
| TG3-GBK-1/2X10-10 | 1/2" | 10 | 39000 | 31800 | 127 | $2,153.49 |
|
||||
| TG3-GBK-1/2X15-10 | 1/2" | 15 | 39000 | 31800 | 164.95 | $2,356.35 |
|
||||
| TG3-GBK-1/2X20-10 | 1/2" | 20 | 39000 | 31800 | 202.9 | $2,559.21 |
|
||||
| TG3-GBK-5/8X05-10 | 5/8" | 5 | 58700 | 47900 | 145.8 | $2,780.61 |
|
||||
| TG3-GBK-5/8X10-10 | 5/8" | 10 | 58700 | 47900 | 204.9 | $3,110.73 |
|
||||
| TG3-GBK-5/8X15-10 | 5/8" | 15 | 58700 | 47900 | 264 | $3,440.85 |
|
||||
| TG3-GBK-5/8X20-10 | 5/8" | 20 | 58700 | 47900 | 323.1 | $3,770.97 |
|
||||
Products
SKU:
TG3-GBK-516X05-10
Chain Diameter
:
5/16"
Length (ft)
:
5
WLL 60º (lbs)
:
14800
WLL 45º (lbs)
:
12100
Weight (lbs)
:
28.55
Price:
$900.35
SKU:
TG3-GBK-516X10-10
Chain Diameter
:
5/16"
Length (ft)
:
10
WLL 60º (lbs)
:
14800
WLL 45º (lbs)
:
12100
Weight (lbs)
:
43.1
Price:
$1,006.82
SKU:
TG3-GBK-516X15-10
Chain Diameter
:
5/16"
Length (ft)
:
15
WLL 60º (lbs)
:
14800
WLL 45º (lbs)
:
12100
Weight (lbs)
:
57.65
Price:
$1,113.29
SKU:
TG3-GBK-516X20-10
Chain Diameter
:
5/16"
Length (ft)
:
20
WLL 60º (lbs)
:
14800
WLL 45º (lbs)
:
12100
Weight (lbs)
:
72.2
Price:
$1,219.76
SKU:
TG3-GBK-3/8X05-10
Chain Diameter
:
3/8"
Length (ft)
:
5
WLL 60º (lbs)
:
22900
WLL 45º (lbs)
:
18700
Weight (lbs)
:
47.75
Price:
$1,337.20
SKU:
TG3-GBK-3/8X10-10
Chain Diameter
:
3/8"
Length (ft)
:
10
WLL 60º (lbs)
:
22900
WLL 45º (lbs)
:
18700
Weight (lbs)
:
70.4
Price:
$1,455.64
SKU:
TG3-GBK-3/8X15-10
Chain Diameter
:
3/8"
Length (ft)
:
15
WLL 60º (lbs)
:
22900
WLL 45º (lbs)
:
18700
Weight (lbs)
:
93
Price:
$1,574.08
SKU:
TG3-GBK-3/8X20-10
Chain Diameter
:
3/8"
Length (ft)
:
20
WLL 60º (lbs)
:
22900
WLL 45º (lbs)
:
18700
Weight (lbs)
:
116
Price:
$1,692.52
SKU:
TG3-GBK-1/2X05-10
Chain Diameter
:
1/2"
Length (ft)
:
5
WLL 60º (lbs)
:
39000
WLL 45º (lbs)
:
31800
Weight (lbs)
:
89
Price:
$1,950.63
SKU:
TG3-GBK-1/2X10-10
Chain Diameter
:
1/2"
Length (ft)
:
10
WLL 60º (lbs)
:
39000
WLL 45º (lbs)
:
31800
Weight (lbs)
:
127
Price:
$2,153.49
SKU:
TG3-GBK-1/2X15-10
Chain Diameter
:
1/2"
Length (ft)
:
15
WLL 60º (lbs)
:
39000
WLL 45º (lbs)
:
31800
Weight (lbs)
:
164.95
Price:
$2,356.35
SKU:
TG3-GBK-1/2X20-10
Chain Diameter
:
1/2"
Length (ft)
:
20
WLL 60º (lbs)
:
39000
WLL 45º (lbs)
:
31800
Weight (lbs)
:
202.9
Price:
$2,559.21
SKU:
TG3-GBK-5/8X05-10
Chain Diameter
:
5/8"
Length (ft)
:
5
WLL 60º (lbs)
:
58700
WLL 45º (lbs)
:
47900
Weight (lbs)
:
145.8
Price:
$2,780.61
SKU:
TG3-GBK-5/8X10-10
Chain Diameter
:
5/8"
Length (ft)
:
10
WLL 60º (lbs)
:
58700
WLL 45º (lbs)
:
47900
Weight (lbs)
:
204.9
Price:
$3,110.73
SKU:
TG3-GBK-5/8X15-10
Chain Diameter
:
5/8"
Length (ft)
:
15
WLL 60º (lbs)
:
58700
WLL 45º (lbs)
:
47900
Weight (lbs)
:
264
Price:
$3,440.85
SKU:
TG3-GBK-5/8X20-10
Chain Diameter
:
5/8"
Length (ft)
:
20
WLL 60º (lbs)
:
58700
WLL 45º (lbs)
:
47900
Weight (lbs)
:
323.1
Price:
$3,770.97
