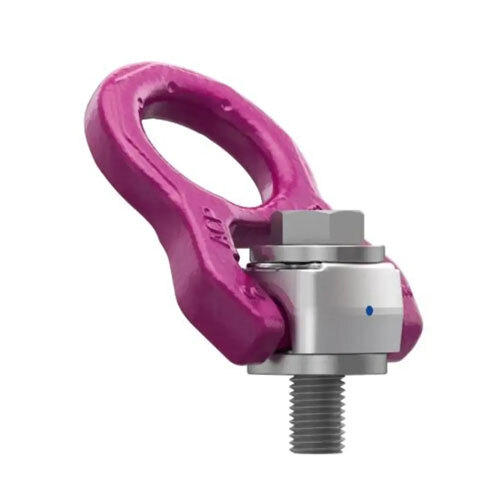

RUD ACP-Turnado Hoist Rings – Automatic-Center-Point Swivel Lifting Points
RUD ACP-Turnado hoist rings are advanced swivel lifting points designed to automatically align with the direction of pull during lifting operations. Featuring RUD’s patented Automatic-Center-Point spring mechanism, these lifting points prevent the bail from stopping in unfavorable positions and reduce the risk of dangerous side loading. The ACP-Turnado series provides 360° rotation with a 180° pivoting lifting ring, allowing loads to move freely without kinking or twisting the rigging. Available in both metric and UNC thread sizes with working load limits up to 8 tons, ACP-Turnado hoist rings meet ASME B30.26 standards and are widely used for machinery lifting, fabrication handling, and industrial rigging applications where safe multi-directional loading is required.
Click here to download a PDF file for additional specifications.
Order Sheet
| MPN | Size | Thread | WLL (tons) | Approx. Weight (kg) | Price | Quantity |
|---|---|---|---|---|---|---|
| 7909417 | 1/2" | 18 mm | 1.35 | 0.39 | $258.00 |
|
| 7909418 | 5/8" | 22 mm | 2.5 | 0.88 | $320.00 |
|
| 7909419 | 3/4" | 25.5 mm | 4 | 1.41 | $344.00 |
|
| 7909420 | 1" | 36 mm | 6.3 | 3.22 | $570.00 |
|
| 7909421 | 1-1/4" | 46.5 mm | 8 | 5.77 | $1,238.00 |
|
| 7911054 | 1-1/2" | 70 mm | 14 | 7.3 | $1,376.00 |
|
| 7911055 | 1-3/4" | 70 mm | 16 | 7.5 | $1,480.00 |
|
| 7912638 | 2" | 90 mm | 22 | 14.9 | $2,528.00 |
|
| 7912639 | 2-1/2" | 79 mm | 32.5 | 17.2 | $4,356.00 |
|
| 7912640 | 3" | 95 mm | 32.5 | 18.7 | $4,564.00 |
|
| 7912641 | 3-1/2" | 111 mm | 32.5 | 21.5 | $4,772.00 |
|
| 7912061 | M8 | 12 mm | 0.7 | 0.36 | $226.00 |
|
| 7912064 | M10 | 16 mm | 1 | 0.37 | $228.00 |
|
| 7909314 | M12 | 19 mm | 1.35 | 0.38 | $230.00 |
|
| 7909316 | M16 | 22 mm | 2.5 | 0.38 | $304.00 |
|
| 7909317 | M20 | 26.5 mm | 4 | 1.41 | $420.00 |
|
| 7909318 | M24 | 34 mm | 6.3 | 3.27 | $480.00 |
|
| 7909319 | M30 | 41.5 mm | 8 | 5.69 | $928.00 |
|
