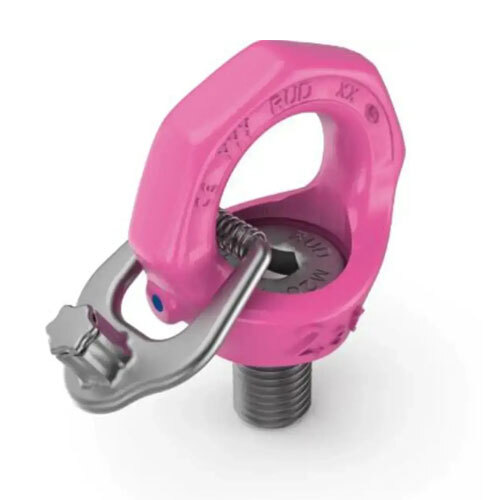

RUD lifting points are engineered for demanding industrial lifting applications where safety, strength, and flexibility are critical. These premium bolt-on lifting points—such as the widely trusted VRS Starpoint and VRS-F swivel lifting eye bolts—are designed to rotate and align with the direction of pull, dramatically reducing the risk of dangerous side loading compared to traditional DIN 580 eye bolts. Manufactured from high-strength forged alloy steel and built to strict quality standards, RUD lifting points offer significantly higher working load limits and dependable performance across a wide range of machinery, fabricated structures, and heavy equipment. Available in both metric and UNC thread sizes, these lifting points provide a versatile solution for equipment manufacturers, fabricators, maintenance teams, and rigging professionals who require reliable, high-performance lifting hardware.
Click here to download a PDF file for additional specifications.
Order Sheet
| MPN | Size | Thread | WLL (tons) | Approx. Weight (kg) | Price | Quantity |
|---|---|---|---|---|---|---|
| 7900906 | M6 | 9 mm | 0.1 | 0.07 | $144.00 |
|
| 8500911 | M8 | 12 mm | 0.3 | 0.12 | $136.00 |
|
| 7104029 | M10 | 15 mm | 0.4 | 0.12 | $136.00 |
|
| 7101313 | M12 | 18 mm | 0.75 | 0.19 | $152.00 |
|
| 7999330 | M14 | 18 mm | 0.75 | 0.22 | $182.00 |
|
| 7101314 | M16 | 24 mm | 1.5 | 0.36 | $178.00 |
|
| 7903387 | M18 | 24 mm | 1.5 | 0.37 | $210.00 | |
| 7101315 | M20 | 30 mm | 2.3 | 0.6 | $232.00 |
|
| 7992197 | M22 | 30 mm | 2.3 | 0.62 | $266.00 |
|
| 7101316 | M24 | 36 mm | 3.2 | 1.06 | $316.00 |
|
| 7994138 | M27 | 36 mm | 3.2 | 1.08 | $400.00 | |
| 7101317 | M30 | 45 mm | 4.5 | 2.08 | $448.00 |
|
| 7993439 | M33 | 45 mm | 4.5 | 2.13 | $668.00 | |
| 7984201 | M36 | 54 mm | 7 | 3.5 | $718.00 |
|
| 7984202 | M42 | 63 mm | 9 | 5.4 | $1,002.00 |
|
| 7984203 | M48 | 72 mm | 12 | 8.1 | $1,246.00 |
|
| 7910837 | M64 | 96 mm | 20 | 17.8 | $2,702.00 | |
| 7999106 | 5/16" | 12 mm | 0.3 | 0.13 | $150.00 |
|
| 7104480 | 3/8" | 15 mm | 0.4 | 0.12 | $136.00 |
|
| 7904195 | 7/16" | 15 mm | 0.4 | 0.12 | $142.00 | |
| 7104481 | 1/2" | 19 mm | 0.75 | 0.22 | $152.00 |
|
| 7104482 | 5/8" | 24 mm | 1.5 | 0.35 | $178.00 |
|
| 7104483 | 3/4" | 30 mm | 1.5 | 0.58 | $254.00 |
|
| 7104484 | 7/8" | 33 mm | 2.3 | 0.61 | $254.00 |
|
| 7104485 | 1" | 38 mm | 3.2 | 1.04 | $316.00 |
|
| 7903386 | 1-1/8" | 36 mm | 3.2 | 1.08 | $356.00 | |
| 7903383 | 1-1/8" | 36 mm | 3.2 | 1.08 | $356.00 |
|
| 7104486 | 1-1/4" | 48 mm | 4.5 | 2.08 | $448.00 |
|
| 7104487 | 1-1/2" | 54 mm | 7 | 3.6 | $782.00 |
|
| 7104488 | 1-3/4" | 63 mm | 9 | 4.95 | $952.00 |
|
| 7104489 | 2" | 72 mm | 12 | 7.6 | $1,320.00 |
|
