Van Beest G-4163H Bolt Type Catch Shackles
Van Beest G-4163H Catch Shackle – Drop-Safe Rigging for Maximum Safety

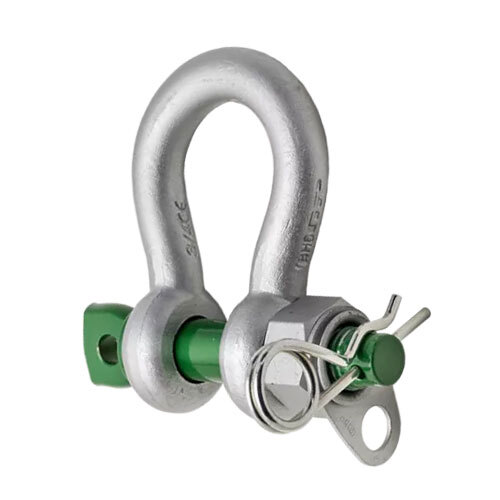

The Van Beest G-4163H Catch Shackle is engineered to prevent dropped objects, reducing the risk of injuries and fatalities in lifting and rigging operations. Available in sizes from 1/2" to 1-1/8" with a working load limit (WLL) from 2 to 9.5 tons, this innovative shackle ensures all components—including the bow, pin, nut, and cotter pin—remain securely tethered using any standard lanyard system. Co-developed with the DROPS organization, it supports all types of tethering methods to enhance workplace safety. Made from high-tensile Grade 6 steel, quenched and tempered, the shackle meets EN 13889 standards, complies with ASME B30.26, and fulfills US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A requirements. Featuring a 6:1 safety factor, a hot-dip galvanized finish for corrosion resistance, and an operating temperature range of -40°F to 392°F (-40°C to +200°C), the Green Pin® Catch Shackle BN is built for demanding industrial applications where safety is the top priority.
| SKU | Size | WLL (tons) | Throat Opening | Pin Diameter | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| VB-G4163H-12 | 1/2" | 2 | 0.88" | 0.63" | 1.04 | $23.80 |
|
| VB-G4163H-58 | 5/8" | 3.25 | 1.06" | 0.75" | 1.80 | $29.80 |
|
| VB-G4163H-34 | 3/4" | 4.75 | 1.22" | 0.88" | 2.91 | $37.00 |
|
| VB-G4163H-78 | 7/8" | 6.5 | 1.41' | 1.00" | 4.23 | $40.16 |
|
| VB-G4163H-1 | 1" | 8.5 | 1.69" | 1.13" | 6.10 | $70.96 |
|
| VB-G4163H-118 | 1-1/8" | 9.5 | 1.84" | 1.25" | 8.6 | $97.30 |
|
