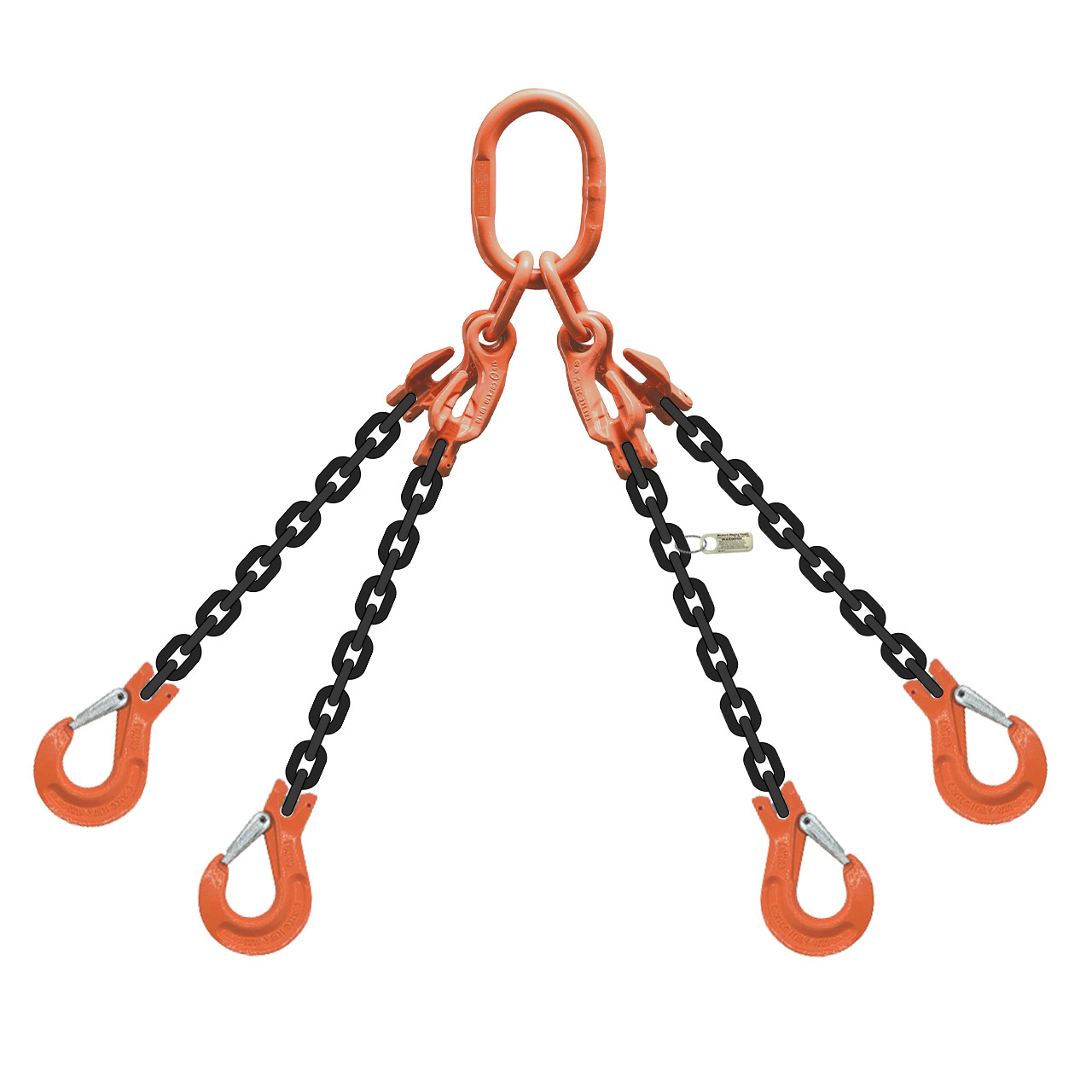

Quad Leg Chain Sling with Cartec CDFXA4 Master Link
Our Grade 100 quad leg chain slings featuring the Cartec CDFXA4 master link are engineered for strength, efficiency, and streamlined inspection. The CDFXA4 master link incorporates fully integrated, in-line adjusters that maintain full rated capacity even when the chain legs are shortened, eliminating the need for additional shortening components. With fewer overall parts, this design reduces weight while simplifying inspection and maintenance. Each leg is fitted with a latched sling hook featuring a spring-loaded flipper latch that snaps securely into place once rigged. Designed for overhead lifting and crane use, this four-leg configuration provides enhanced load distribution and stability for controlled, balanced lifting operations.
Order Sheet
| SKU | Chain Diameter | Length (ft) | WLL 60º (lbs) | WLL 45º (lbs) | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| CDFXA4S-9/32X05-10MC | 9/32" (1/4") | 5 | 11200 | 9100 | 31.11 | $734.20 |
|
| CDFXA4S-9/32X10-10MC | 9/32" (1/4") | 10 | 11200 | 9100 | 46.51 | $813.68 |
|
| CDFXA4S-9/32X15-10MC | 9/32" (1/4") | 15 | 11200 | 9100 | 61.91 | $893.18 |
|
| CDFXA4S-9/32X20-10MC | 9/32" (1/4") | 20 | 11200 | 9100 | 77.31 | $972.66 |
|
| CDFXA4S-3/8X05-10MC | 3/8" | 5 | 22900 | 18700 | 58.65 | $1,048.88 |
|
| CDFXA4S-3/8X10-10MC | 3/8" | 10 | 22900 | 18700 | 89 | $1,162.88 |
|
| CDFXA4S-3/8X15-10MC | 3/8" | 15 | 22900 | 18700 | 119 | $1,276.88 |
|
| CDFXA4S-3/8X20-10MC | 3/8" | 20 | 22900 | 18700 | 149.25 | $1,390.88 |
|
| CDFXA4S-1/2X05-10MC | 1/2" | 5 | 39000 | 31800 | 104 | $1,860.90 |
|
| CDFXA4S-1/2X10-10MC | 1/2" | 10 | 39000 | 31800 | 154.46 | $2,073.18 |
|
| CDFXA4S-1/2X15-10MC | 1/2" | 15 | 39000 | 31800 | 205.06 | $2,285.46 |
|
| CDFXA4S-1/2X20-10MC | 1/2" | 20 | 39000 | 31800 | 255.66 | $2,497.74 |
|
| CDFXA4S-5/8X05-10MC | 5/8" | 5 | 58700 | 47900 | 171.72 | $2,921.54 |
|
| CDFXA4S-5/8X10-10MC | 5/8" | 10 | 58700 | 47900 | 250.52 | $3,203.96 |
|
| CDFXA4S-5/8X15-10MC | 5/8" | 15 | 58700 | 47900 | 329.32 | $3,486.38 |
|
| CDFXA4S-5/8X20-10MC | 5/8" | 20 | 58700 | 47900 | 408.12 | $3,768.80 |
|
