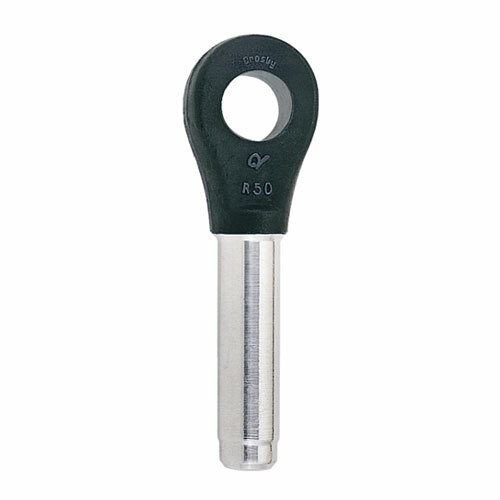

Crosby S-502 Closed Swage Sockets
- Forged from special bar quality carbon steel, suitable for cold forming
- Swage socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope
- Hardness controlled by spheroidize annealing
- Stamp for identification after swaging without concern for fractures (as per directions in the Wire Rope End Terminations User's Manual)
- Swage sockets incorporate a reduced machined area of the shank which is equivalent to the proper “After Swage" dimension--before swaging, this provides for an obvious visual difference in the shank diameter--after swaging, a uniform shank diameter is created allowing for a QUIC-CHECK and permanent visual inspection opportunity
- QUIC-CHECK markings are designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections, it does not eliminate the need to perform standard production inspections which include gauging for the proper “After Swage" dimensions or proof loading
NOTE: S-502 Swage Sockets are recommended for use with 6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope. Hydraulic press with proper dies needed for socket installation. View product specifications for full details on swaging dimensions, die selection and sleeve efficiency ratings.
| MPN | Wire Rope Size | Inside Eye | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|
| 1039325 | 1/4" | 0.76" | 0.33 | $46.50 |
|
| 1039343 | 5/16" | 0.88" | 0.75 | $65.90 |
|
| 1039361 | 3/8" | 0.88" | 0.72 | $65.90 |
|
| 1039389 | 7/16" | 1.07" | 1.42 | $80.50 |
|
| 1039405 | 1/2" | 1.07" | 1.42 | $79.90 |
|
| 1039423 | 9/16" | 1.28" | 2.92 | $104.50 |
|
| 1039441 | 5/8" | 1.28" | 2.85 | $103.90 |
|
| 1039469 | 3/4" | 1.49" | 5 | $121.10 |
|
| 1039487 | 7/8" | 1.73" | 6.8 | $149.90 |
|
| 1039502 | 1" | 2.11" | 10.4 | $215.00 |
|
| 1039520 | 1-1/8" | 2.37" | 14.82 | $258.00 |
|
| 1039548 | 1-1/4" | 2.62" | 21.57 | $320.00 |
|
| 1039566 | 1-3/8" | 2.62" | 28.54 | $430.00 |
|
| 1039584 | 1-1/2" | 2.87" | 38.06 | $582.00 |
|
| 1039600 | 1-3/4" | 3.63" | 51 | $865.00 |
|
| 1042589 | 2" | 3.88" | 89.25 | $1,669.00 |
|
