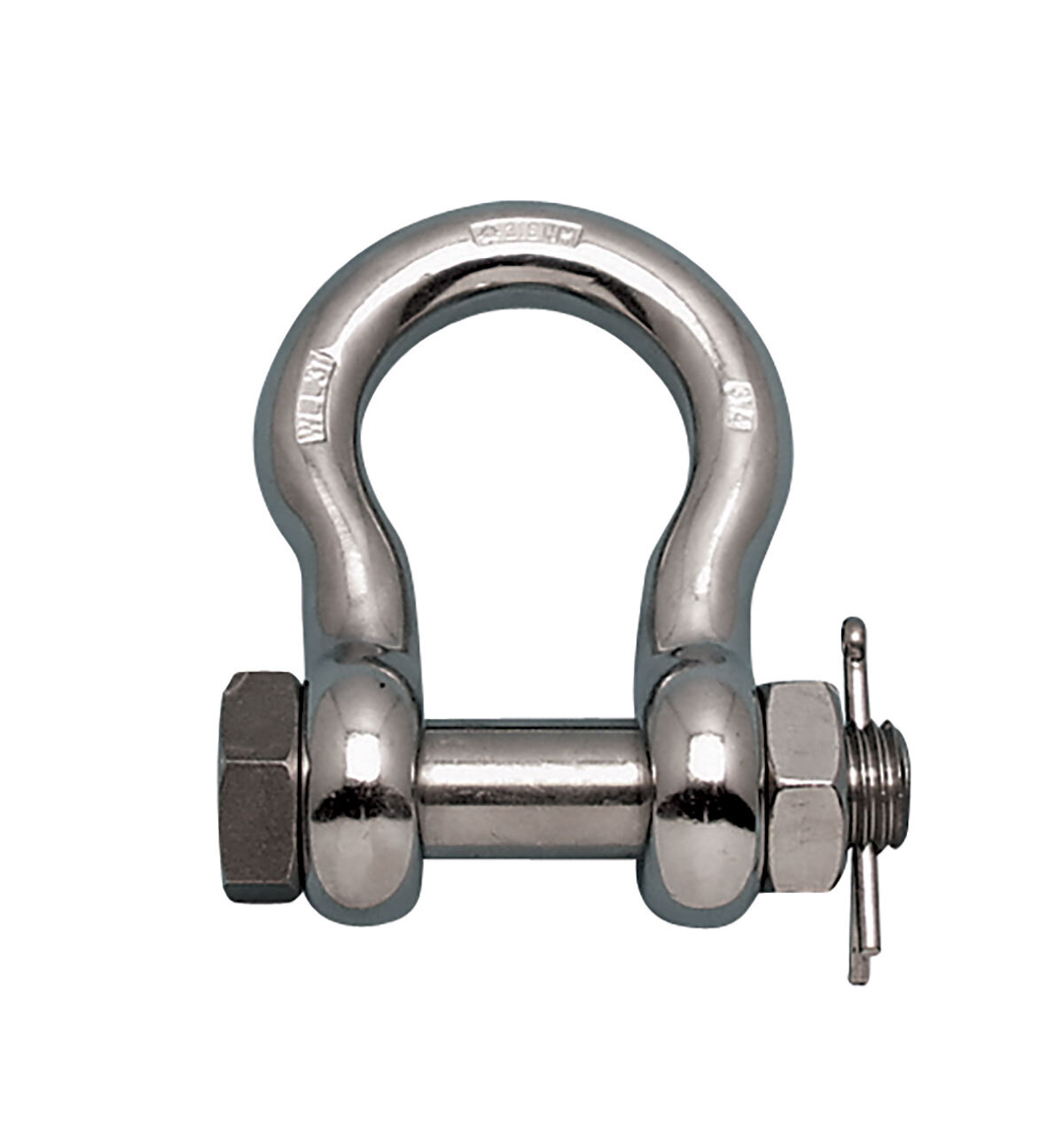

Bishop Lifting offers Suncor US bolt type anchor shackles (S0116-SA-US series) that are drop forged in the USA from 316-NM stainless steel for maximum strength, corrosion resistance, and reliability in demanding marine environments. Featuring an oversize bolt with nut and cotter pin, these shackles provide a secure, vibration-resistant connection commonly used to attach anchors to chain or anchor swivels. Available in sizes from 1/4″ through 1-1/4″, with working load limits up to 14,000 lbs, Suncor US bolt anchor shackles are load rated, DFARS compliant, and manufactured to meet Federal Specification RR-C-271, ASME B30.26, and MIL-DTL-32655 requirements.
Order Sheet
| SKU | Size | WLL (tons) | Throat Opening | Pin Diameter | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| SUN-S0116-SA07-US | 1/4" | 0.5 | 0.47" | 0.31" | 0.12 | $29.02 |
|
| SUN-S0116-SA08-US | 5/16" | 0.65 | 0.53" | 0.38" | 0.18 | $30.23 |
|
| SUN-S0116-SA10-US | 3/8" | 0.75 | 0.66" | 0.44" | 0.32 | $41.85 |
|
| SUN-S0116-SA12-US | 7/16" | 1 | 0.72" | 0.50" | 0.47 | $51.15 |
|
| SUN-S0116-SA13-US | 1/2" | 1.5 | 0.82" | 0.63" | 0.76 | $69.75 |
|
| SUN-S0116-SA16-US | 5/8" | 2 | 1.02" | 0.75" | 1.45 | $105.42 |
|
| SUN-S0116-SA20-US | 3/4" | 3 | 1.25" | 0.88" | 2.42 | $153.45 |
|
| SUN-S0116-SA22-US | 7/8" | 4 | 1.48" | 1.00" | 3.66 | $274.35 |
|
| SUN-S0116-SA25-US | 1" | 5 | 1.70" | 1.13" | 5.09 | $325.50 |
|
| SUN-S0116-SA32-US | 1-1/4" | 7 | 2.03" | 1.38" | 10.79 | $767.25 |
|
Products
Bishop Lifting offers Suncor US bolt type anchor shackles (S0116-SA-US series) that are drop forged in the USA from 316-NM stainless steel for maximum strength, corrosion resistance, and reliability in demanding marine environments. Featuring an oversize bolt with nut and cotter pin, these shackles provide a secure, vibration-resistant connection commonly used to attach anchors to chain or anchor swivels. Available in sizes from 1/4″ through 1-1/4″, with working load limits up to 14,000 lbs, Suncor US bolt anchor shackles are load rated, DFARS compliant, and manufactured to meet Federal Specification RR-C-271, ASME B30.26, and MIL-DTL-32655 requirements.
