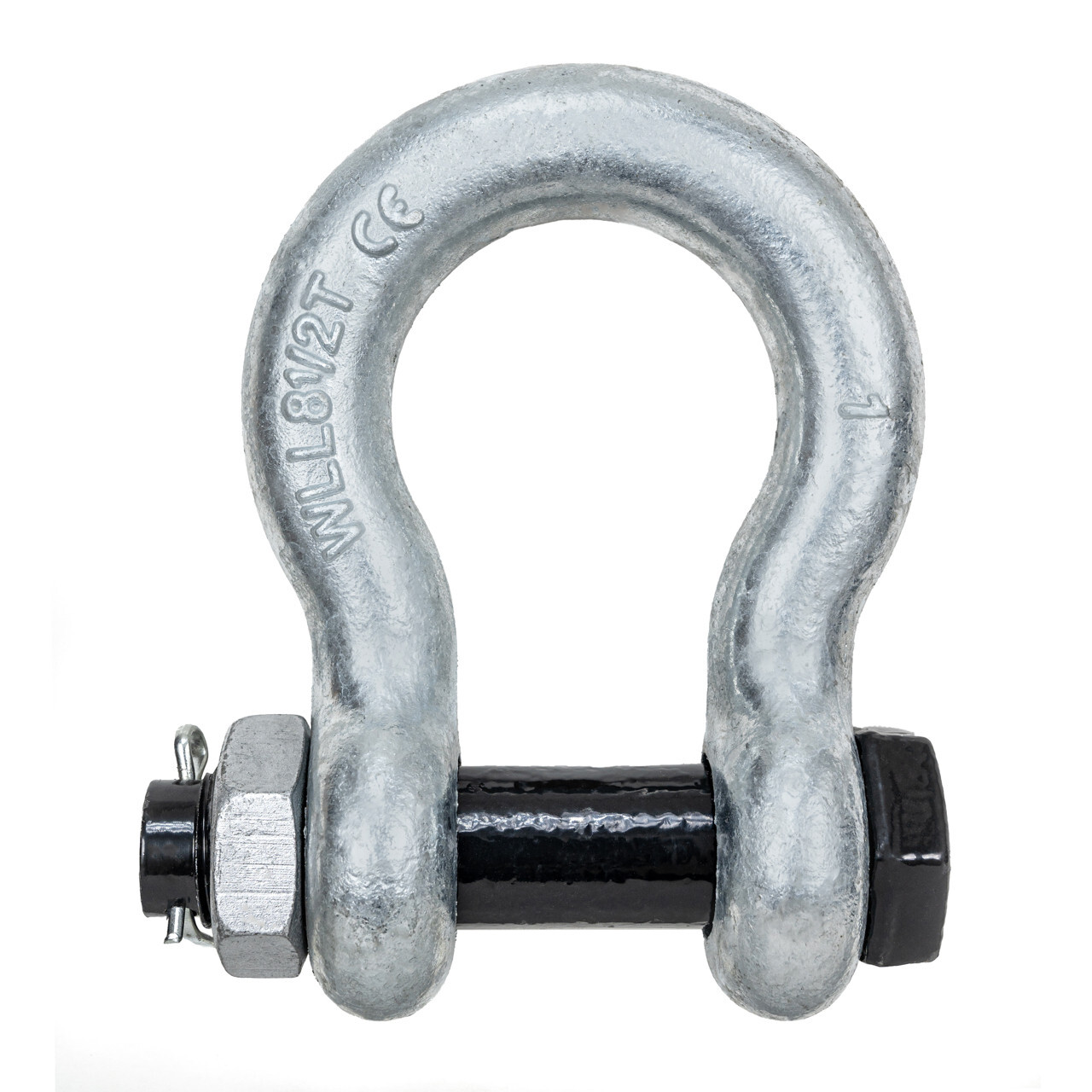

Secure Your Rigging with Imported Bolt Type Anchor Shackles

Our imported bolt type anchor shackles offer a stronger, double-secured solution for rigging applications requiring a permanent or semi-permanent connection. Featuring forged carbon steel bodies, alloy steel pins, and full heat treatment for strength and durability, these shackles are hot-dip galvanized for corrosion protection. Available in sizes from 1/2" to 3", with working load limits ranging from 2 tons up to 85 tons, they meet the general specifications of Federal Spec RR-C-271d, Type IV A, Grade A, Class 3. Often referred to as "safety shackles," bolt type shackles use a bolt, nut, and cotter pin to provide extra security, making them ideal for longer-term rigging installations where vibration or dynamic forces could risk loosening a screw pin. Pin color may vary depending on production lot, but every shackle is built for dependable, rugged performance.

Order Sheet

SKU Size WLL (tons) Throat Opening Pin Diameter Weight (lbs) Price Quantity
5090-0320 1/2" 2 0.81" 0.63" 0.75 $5.32
5090-0400 5/8" 3.25 1.06" 0.75" 1.44 $8.56
5090-0480 3/4" 4.75 1.25" 0.88" 2.5 $14.56
5090-0560 7/8" 6.5 1.44" 1.00" 3.5 $21.40
5090-0640 1" 8.5 1.69" 1.13" 5.25 $32.84
5090-0650 1-1/8" 9.5 1.88" 1.25" 7.25 $43.56
5090-0660 1-1/4" 12 2.00" 1.38" 11.5 $62.44
5090-0670 1-3/8" 13.5 2.25" 1.50" 15 $82.72
5090-0680 1-1/2" 17 2.38" 1.63" 18.7 $101.28
5090-0700 1-3/4" 25 2.88" 2.00" 30.38 $222.00
5090-0720 2" 35 3.25" 2.25" 45 $320.00
5090-0760 2-1/2" 55 4.13" 2.75" 85.75 $738.80
5090-0800 3" 85 5.00" 3.25" 145 $1,009.20

Products

SKU: 5090-0320
Size : 1/2"
WLL (tons) : 2
Throat Opening : 0.81"
Pin Diameter : 0.63"
Weight (lbs) : 0.75
Price: $5.32
SKU: 5090-0400
Size : 5/8"
WLL (tons) : 3.25
Throat Opening : 1.06"
Pin Diameter : 0.75"
Weight (lbs) : 1.44
Price: $8.56
SKU: 5090-0480
Size : 3/4"
WLL (tons) : 4.75
Throat Opening : 1.25"
Pin Diameter : 0.88"
Weight (lbs) : 2.5
Price: $14.56
SKU: 5090-0560
Size : 7/8"
WLL (tons) : 6.5
Throat Opening : 1.44"
Pin Diameter : 1.00"
Weight (lbs) : 3.5
Price: $21.40
SKU: 5090-0640
Size : 1"
WLL (tons) : 8.5
Throat Opening : 1.69"
Pin Diameter : 1.13"
Weight (lbs) : 5.25
Price: $32.84
SKU: 5090-0650
Size : 1-1/8"
WLL (tons) : 9.5
Throat Opening : 1.88"
Pin Diameter : 1.25"
Weight (lbs) : 7.25
Price: $43.56
SKU: 5090-0660
Size : 1-1/4"
WLL (tons) : 12
Throat Opening : 2.00"
Pin Diameter : 1.38"
Weight (lbs) : 11.5
Price: $62.44
SKU: 5090-0670
Size : 1-3/8"
WLL (tons) : 13.5
Throat Opening : 2.25"
Pin Diameter : 1.50"
Weight (lbs) : 15
Price: $82.72
SKU: 5090-0680
Size : 1-1/2"
WLL (tons) : 17
Throat Opening : 2.38"
Pin Diameter : 1.63"
Weight (lbs) : 18.7
Price: $101.28
SKU: 5090-0700
Size : 1-3/4"
WLL (tons) : 25
Throat Opening : 2.88"
Pin Diameter : 2.00"
Weight (lbs) : 30.38
Price: $222.00
SKU: 5090-0720
Size : 2"
WLL (tons) : 35
Throat Opening : 3.25"
Pin Diameter : 2.25"
Weight (lbs) : 45
Price: $320.00
SKU: 5090-0760
Size : 2-1/2"
WLL (tons) : 55
Throat Opening : 4.13"
Pin Diameter : 2.75"
Weight (lbs) : 85.75
Price: $738.80
SKU: 5090-0800
Size : 3"
WLL (tons) : 85
Throat Opening : 5.00"
Pin Diameter : 3.25"
Weight (lbs) : 145
Price: $1,009.20

Secure Your Rigging with Imported Bolt Type Anchor Shackles

Our imported bolt type anchor shackles offer a stronger, double-secured solution for rigging applications requiring a permanent or semi-permanent connection. Featuring forged carbon steel bodies, alloy steel pins, and full heat treatment for strength and durability, these shackles are hot-dip galvanized for corrosion protection. Available in sizes from 1/2" to 3", with working load limits ranging from 2 tons up to 85 tons, they meet the general specifications of Federal Spec RR-C-271d, Type IV A, Grade A, Class 3. Often referred to as "safety shackles," bolt type shackles use a bolt, nut, and cotter pin to provide extra security, making them ideal for longer-term rigging installations where vibration or dynamic forces could risk loosening a screw pin. Pin color may vary depending on production lot, but every shackle is built for dependable, rugged performance.
