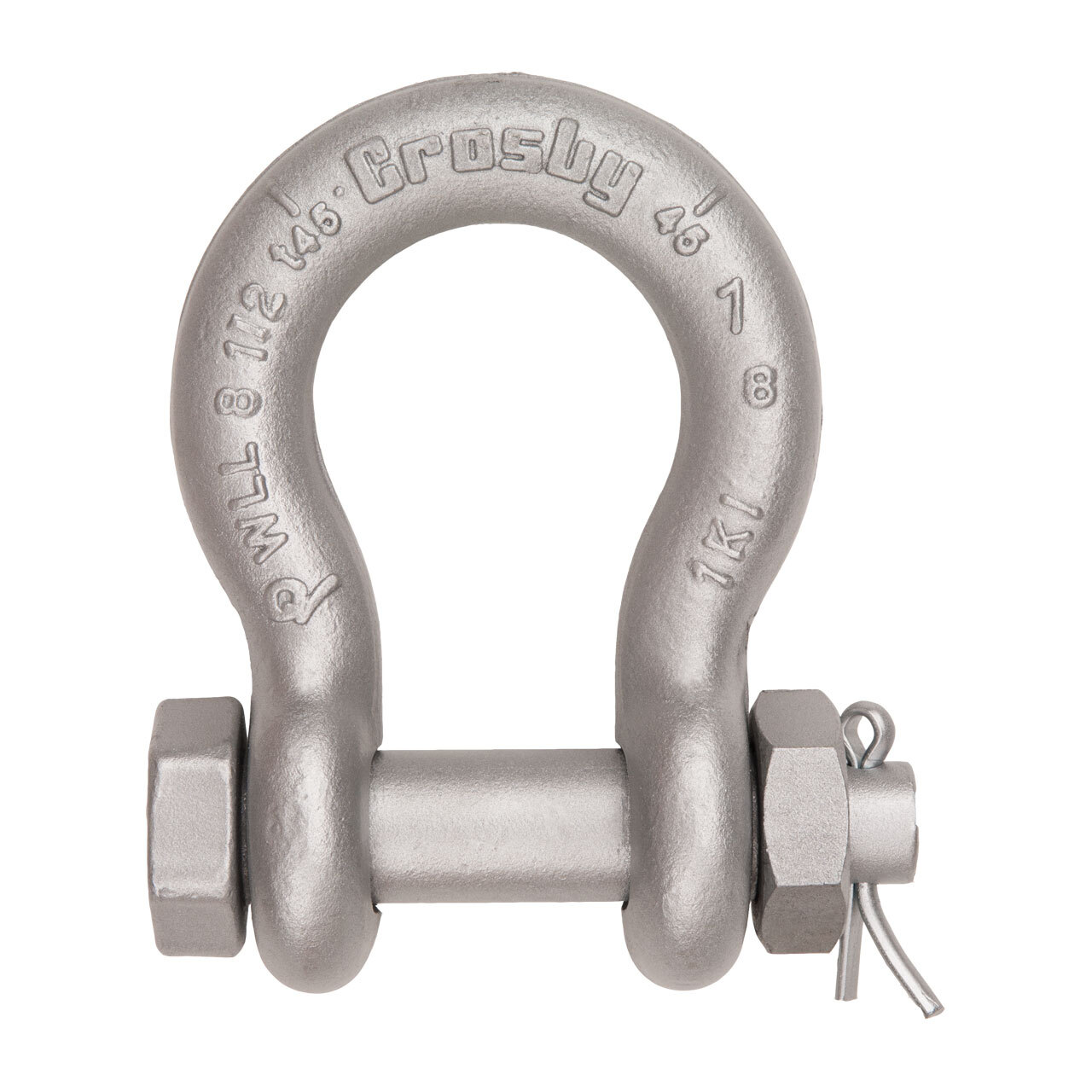

Crosby G-2130A Grade 80 Alloy Bolt Type Shackles
- Forged alloy steel, Quenched & Tempered, with bow and bolt
- Meets or exceeds all requirements of Grade 8 shackles
- Working Load Limit permanently shown on every shackle
- Hot-dip galvanized
- Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements
- Importantly, G-2130A meet other critical performance requirements, including impact properties, and material traceability not addressed by ASME B30.26
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification when requested at time of order (additional fees apply)
- Type Approval and certification in accordance with DNV 2.7-1 offshore containers
- Shackles are Quenched & Tempered and meet DNV impact requirements of 42 Joules (31 ft-Ib) at -40° C (-40° F)
- G-2130A Bolt Type Anchor shackles with thin head bolt – nut with cotter pin, meets the performance requirements of Federal Specification RR-C271H, Type IVA, Grade B, Class 3, except for those provisions required of the contractor
| MPN | Size | WLL (tons) | Throat Opening | Pin Diameter | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| 1219472 | 1/2" | 2 | 0.81" | 0.63" | 0.79 | $36.60 |
|
| 1219491 | 5/8" | 3-1/4 | 1.06" | 0.75" | 1.37 | $58.90 |
|
| 1219516 | 3/4" | 4-3/4 | 1.25" | 0.88" | 2.71 | $81.50 |
|
| 1219534 | 7/8" | 6-1/2 | 1.44" | 1.00" | 3.95 | $125.40 |
|
| 1219552 | 1" | 8-1/2 | 1.69" | 1.10" | 5.03 | $159.00 |
|
| 1219578 | 1-1/8" | 9-1/2 | 1.81" | 1.25" | 8.27 | $208.00 |
|
| 1219598 | 1-1/4" | 12 | 2.03" | 1.38" | 11.7 | $279.00 |
|
| 1219614 | 1-3/8" | 13-1/2 | 2.25" | 1.50" | 15.8 | $428.00 |
|
| 1219632 | 1-1/2" | 17 | 2.38" | 1.63" | 19 | $531.00 |
|
