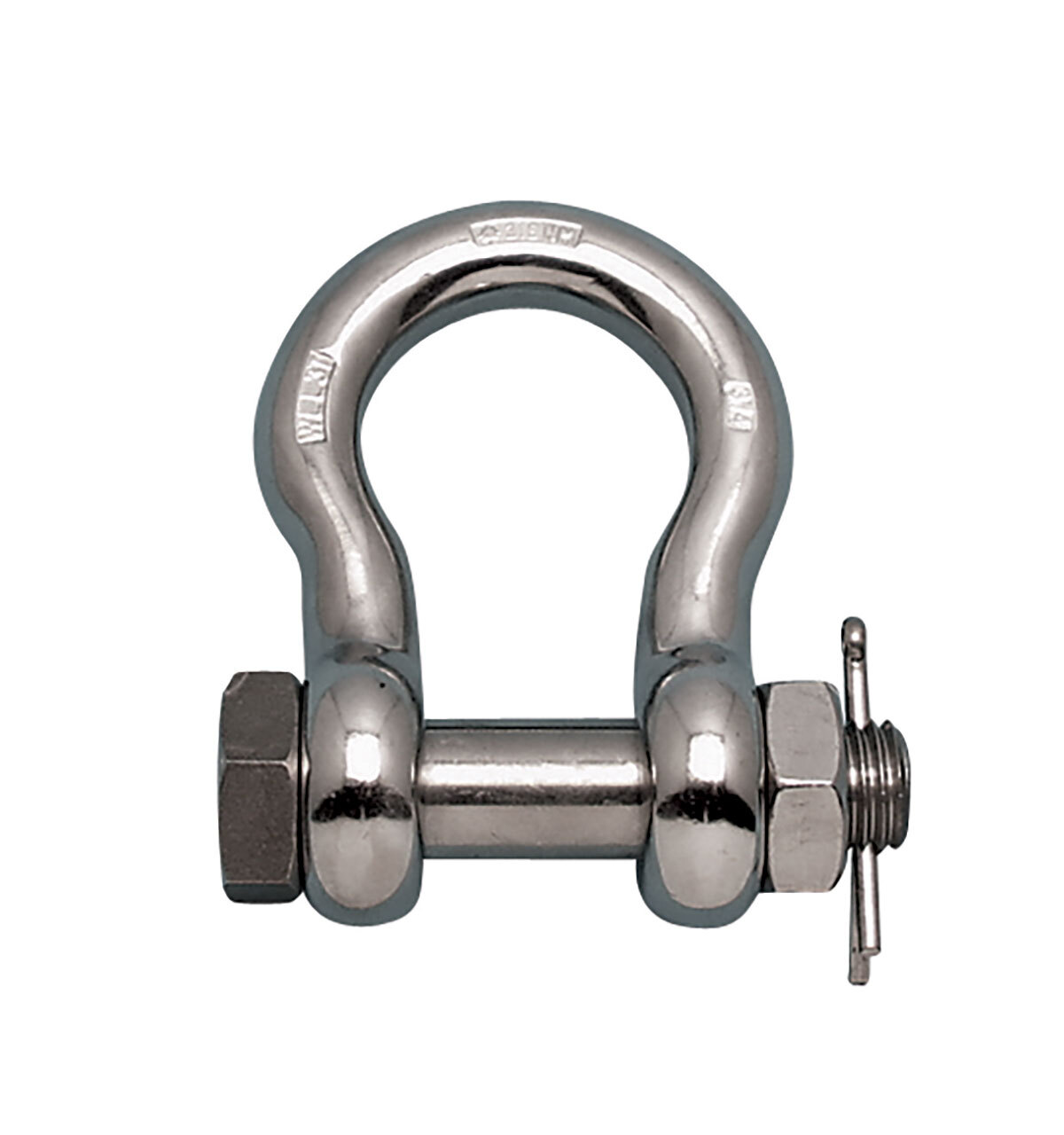

Bishop Lifting offers Suncor bolt type anchor shackles (S0116-SA series) that are drop forged from 316-NM stainless steel for superior strength and corrosion resistance in marine and industrial environments. Featuring an oversize bolt with nut and cotter pin, these shackles provide a secure, vibration-resistant connection commonly used to attach anchors to chain or anchor swivels. Available in sizes from 1/4″ through 1-1/4″, with working load limits up to 14,000 lbs, Suncor bolt type anchor shackles are load rated and manufactured to meet Federal Specification RR-C-271, ASME B30.26, and MIL-DTL-32655 requirements.
Order Sheet
| SKU | Size | WLL (tons) | Throat Opening | Pin Diameter | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|
| SUN-S0116-SA07 | 1/4" | 0.5 | 0.47" | 0.31" | 0.12 | $16.75 |
|
| SUN-S0116-SA08 | 5/16" | 0.65 | 0.53" | 0.38" | 0.18 | $19.25 |
|
| SUN-S0116-SA10 | 3/8" | 0.75 | 0.66" | 0.44" | 0.32 | $25.06 |
|
| SUN-S0116-SA12 | 7/16" | 1 | 0.72" | 0.50" | 0.47 | $35.81 |
|
| SUN-S0116-SA13 | 1/2" | 1.5 | 0.82" | 0.63" | 0.76 | $43.31 |
|
| SUN-S0116-SA16 | 5/8" | 2 | 1.02" | 0.75" | 1.45 | $66.69 |
|
| SUN-S0116-SA20 | 3/4" | 3 | 1.25" | 0.88" | 2.42 | $109.75 |
|
| SUN-S0116-SA22 | 7/8" | 4 | 1.48" | 1.00" | 3.66 | $195.38 |
|
| SUN-S0116-SA25 | 1" | 5 | 1.70" | 1.13" | 5.09 | $238.44 |
|
| SUN-S0116-SA32 | 1-1/4" | 7 | 2.03" | 1.38" | 10.79 | $582.25 |
|
Products
Bishop Lifting offers Suncor bolt type anchor shackles (S0116-SA series) that are drop forged from 316-NM stainless steel for superior strength and corrosion resistance in marine and industrial environments. Featuring an oversize bolt with nut and cotter pin, these shackles provide a secure, vibration-resistant connection commonly used to attach anchors to chain or anchor swivels. Available in sizes from 1/4″ through 1-1/4″, with working load limits up to 14,000 lbs, Suncor bolt type anchor shackles are load rated and manufactured to meet Federal Specification RR-C-271, ASME B30.26, and MIL-DTL-32655 requirements.
