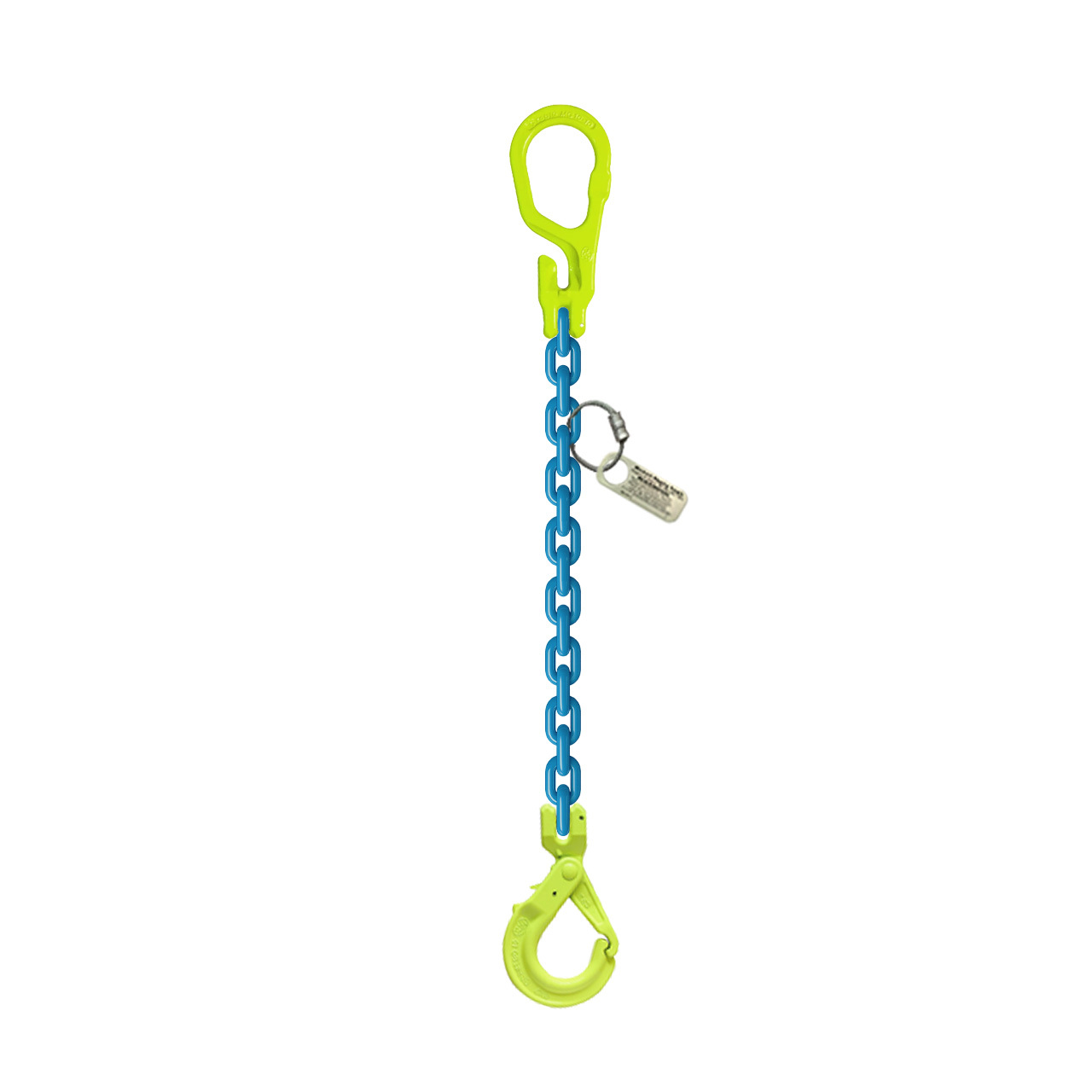

MG-GBK GrabiQ Chain Slings
The new innovative Grade 100 chain lifting system!
Sweden's Gunnebo Lifting has introduced their new GrabiQ system. A new system of lifting based on grade 100 chain and a fewer number of powerful multi-function components. The result is a both simpler and safer system versus existing lifting systems.
A four-leg sling with a shortening function, which previously required up to fifteen separate components, can now be handled with just three. Available in sizes ranging from 5/16" - 5/8" (8 - 16mm), the GrabiQ system offers improved safety, greater durability, and shorter assembly times.
| SKU | Chain Diameter | Length (ft) | Vertical WLL (lbs) | Weight (lbs) | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MG1-GBK516X05-G100 | 5/16" | 5 | 5700 | 9.45 | $280.27 |
|
|||||
| MG1-GBK516X10-G100 | 5/16" | 10 | 5700 | 14.3 | $315.76 |
|
|||||
| MG1-GBK516X15-G100 | 5/16" | 15 | 5700 | 19.15 | $351.25 |
|
|||||
| MG1-GBK516X20-G100 | 5/16" | 20 | 5700 | 24 | $386.74 |
|
|||||
| MG1-GBK38X05-G100 | 3/8" | 5 | 8800 | 15.75 | $462.86 |
|
|||||
| MG1-GBK38X10-G100 | 3/8" | 10 | 8800 | 23.3 | $502.34 |
|
|||||
| MG1-GBK38X15-G100 | 3/8" | 15 | 8800 | 30.85 | $541.82 |
|
|||||
| MG1-GBK38X20-G100 | 3/8" | 20 | 8800 | 38.4 | $581.30 |
|
|||||
| MG1-GBK12X05-G100 | 1/2" | 5 | 15000 | 27.35 | $611.54 |
|
|||||
| MG1-GBK12X10-G100 | 1/2" | 10 | 15000 | 40 | $679.16 |
|
|||||
| MG1-GBK12X15-G100 | 1/2" | 15 | 15000 | 52.65 | $746.78 |
|
|||||
| MG1-GBK12X20-G100 | 1/2" | 20 | 15000 | 65.3 | $814.40 |
|
|||||
| MG1-GBK58X05-G100 | 5/8" | 5 | 22600 | 45 | $892.96 |
|
|||||
| MG1-GBK58X10-G100 | 5/8" | 10 | 22600 | 64.7 | $1,003.00 |
|
|||||
| MG1-GBK58X15-G100 | 5/8" | 15 | 22600 | 84.4 | $1,113.04 |
|
|||||
| MG1-GBK58X20-G100 | 5/8" | 20 | 22600 | 104 | $1,223.08 |
|
|||||
Products
SKU:
MG1-GBK516X05-G100
Chain Diameter
:
5/16"
Length (ft)
:
5
Vertical WLL (lbs)
:
5700
Weight (lbs)
:
9.45
Price:
$280.27
SKU:
MG1-GBK516X10-G100
Chain Diameter
:
5/16"
Length (ft)
:
10
Vertical WLL (lbs)
:
5700
Weight (lbs)
:
14.3
Price:
$315.76
SKU:
MG1-GBK516X15-G100
Chain Diameter
:
5/16"
Length (ft)
:
15
Vertical WLL (lbs)
:
5700
Weight (lbs)
:
19.15
Price:
$351.25
SKU:
MG1-GBK516X20-G100
Chain Diameter
:
5/16"
Length (ft)
:
20
Vertical WLL (lbs)
:
5700
Weight (lbs)
:
24
Price:
$386.74
SKU:
MG1-GBK38X05-G100
Chain Diameter
:
3/8"
Length (ft)
:
5
Vertical WLL (lbs)
:
8800
Weight (lbs)
:
15.75
Price:
$462.86
SKU:
MG1-GBK38X10-G100
Chain Diameter
:
3/8"
Length (ft)
:
10
Vertical WLL (lbs)
:
8800
Weight (lbs)
:
23.3
Price:
$502.34
SKU:
MG1-GBK38X15-G100
Chain Diameter
:
3/8"
Length (ft)
:
15
Vertical WLL (lbs)
:
8800
Weight (lbs)
:
30.85
Price:
$541.82
SKU:
MG1-GBK38X20-G100
Chain Diameter
:
3/8"
Length (ft)
:
20
Vertical WLL (lbs)
:
8800
Weight (lbs)
:
38.4
Price:
$581.30
SKU:
MG1-GBK12X05-G100
Chain Diameter
:
1/2"
Length (ft)
:
5
Vertical WLL (lbs)
:
15000
Weight (lbs)
:
27.35
Price:
$611.54
SKU:
MG1-GBK12X10-G100
Chain Diameter
:
1/2"
Length (ft)
:
10
Vertical WLL (lbs)
:
15000
Weight (lbs)
:
40
Price:
$679.16
SKU:
MG1-GBK12X15-G100
Chain Diameter
:
1/2"
Length (ft)
:
15
Vertical WLL (lbs)
:
15000
Weight (lbs)
:
52.65
Price:
$746.78
SKU:
MG1-GBK12X20-G100
Chain Diameter
:
1/2"
Length (ft)
:
20
Vertical WLL (lbs)
:
15000
Weight (lbs)
:
65.3
Price:
$814.40
SKU:
MG1-GBK58X05-G100
Chain Diameter
:
5/8"
Length (ft)
:
5
Vertical WLL (lbs)
:
22600
Weight (lbs)
:
45
Price:
$892.96
SKU:
MG1-GBK58X10-G100
Chain Diameter
:
5/8"
Length (ft)
:
10
Vertical WLL (lbs)
:
22600
Weight (lbs)
:
64.7
Price:
$1,003.00
SKU:
MG1-GBK58X15-G100
Chain Diameter
:
5/8"
Length (ft)
:
15
Vertical WLL (lbs)
:
22600
Weight (lbs)
:
84.4
Price:
$1,113.04
SKU:
MG1-GBK58X20-G100
Chain Diameter
:
5/8"
Length (ft)
:
20
Vertical WLL (lbs)
:
22600
Weight (lbs)
:
104
Price:
$1,223.08
