Gunnebo

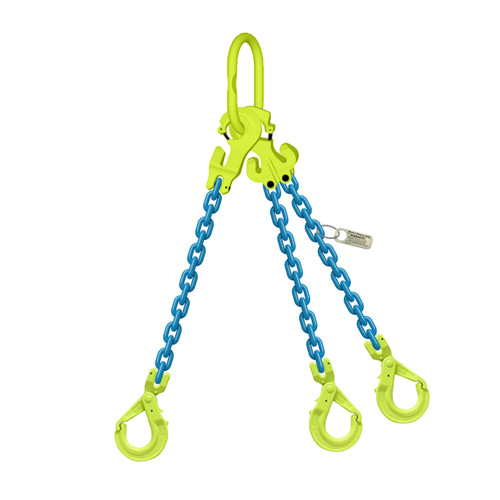

Gunnebo 1/2" x 10 ft TG3-GBK GrabiQ Adjustable 3-Leg Grade 100 Chain Sling - 39000 lbs WLL
Gunnebo
Gunnebo 1/2" x 10 ft TG3-GBK GrabiQ Adjustable 3-Leg Grade 100 Chain Sling - 39000 lbs WLL
- SKU:
- TG3-GBK-1/2X10-10
This product is rated for overhead lifting.
This product usually ships out in just 3 - 5 days.
This product is not returnable.
Earn rewards points.
CA Prop 65
Product Description
A New & Better Way to Build Chain Slings
GrabiQ is an exciting new family of alloy chain sling components. Chain slings used to be built with many components, each one doing a separate job. That made chain slings heavy, bulky and expensive. With GrabiQ, a single component can perform up to three separate functions. For example, a Master Grab serves as the master link, connecting link for the load chain and as the shortening hook for adjustment of the chain (available as "MG" for single leg chains or "MGD" for double leg chains). Building the same chain sling using "old style" components would result in using up to seven top rigging components instead of just one.
Fewer Components Means Less Weight
Most of the time, GrabiQ slings will be lighter than traditional chain slings because fewer components are used. And because GrabiQ fittings are made from Grade 100 alloy steel, they have a lifting capacity that is usually 25% higher than Grade 80 chain slings.
Easier Inspections
To properly inspect a chain sling, you must inspect each component. That takes a lot of time, which leads to many users skipping the inspection process altogether. Because GrabiQ slings use fewer components, chain sling inspections are easier to perform, meaning they are more likely to be done on a regular basis (as legally required).
View AllClose
GrabiQ is an exciting new family of alloy chain sling components. Chain slings used to be built with many components, each one doing a separate job. That made chain slings heavy, bulky and expensive. With GrabiQ, a single component can perform up to three separate functions. For example, a Master Grab serves as the master link, connecting link for the load chain and as the shortening hook for adjustment of the chain (available as "MG" for single leg chains or "MGD" for double leg chains). Building the same chain sling using "old style" components would result in using up to seven top rigging components instead of just one.
Fewer Components Means Less Weight
Most of the time, GrabiQ slings will be lighter than traditional chain slings because fewer components are used. And because GrabiQ fittings are made from Grade 100 alloy steel, they have a lifting capacity that is usually 25% higher than Grade 80 chain slings.
Easier Inspections
To properly inspect a chain sling, you must inspect each component. That takes a lot of time, which leads to many users skipping the inspection process altogether. Because GrabiQ slings use fewer components, chain sling inspections are easier to perform, meaning they are more likely to be done on a regular basis (as legally required).
- Made from Grade 100 chain and fittings, new and certified
- Triple leg design features a GrabiQ MF master link w/ built-in flat to allow installation of one CG and one CGD top connecting links, with latched sling hooks on the other end
- Thanks to CG and CGD fittings with built in chain pockets, the length of this sling is completely adjustable, great for use with various picks
- Great for lifts with multiple pick points for greater load stability
- GBK self-locking hooks are a customer favorite because the grip latch locks into the point of the hook
- Comes furnished with a metal load tag that indicates chain size, length, Working Load Limit and serial number
Specifications
MPN
TG3-GBK-1/2X10-10
Model
TG3-GBK
Chain Diameter
1/2"
Type
Triple Leg
Material
Grade 100 Alloy Steel
Length (ft)
10
WLL 60º (lbs)
39000
WLL 45º (lbs)
31800
WLL 30º (lbs)
22500
Safety Factor
4:1
Overhead Lifting Rated
Yes
Approx. Weight (lbs)
127
What's Included
Safety Notice
Although Bishop Lifting strives to manufacture and sell the highest quality rigging and safety gear, use of the gear is dangerous if not used correctly by competent trained professionals. Bishop Lifting disclaims any liability resulting from the misuse of its rigging and safety gear. Please take a moment to more thoroughly review our disclaimer.
Bishop Lifting rigging and safety gear is only intended to be used by competent trained professionals. Misuse of the rigging and safety gear can result in serious injury up to and including loss of life. As such, Bishop Lifting disclaims liability for any misuse or incorrect product selection by our customers.
Rigging and safety gear purchased from Bishop Lifting should be used in strict accordance with all industry and OSHA standards. At no time should rigging or safety gear be used beyond its certified load ratings (aka Working Load Limits). Normal wear and tear should be expected with use of rigging and safety gear; therefore, all gear should be thoroughly inspected before each and every use. Worn or unsafe rigging and safety gear should never be used.
