Eagle 2 Gallon Type 1 Yellow Safety Diesel Can

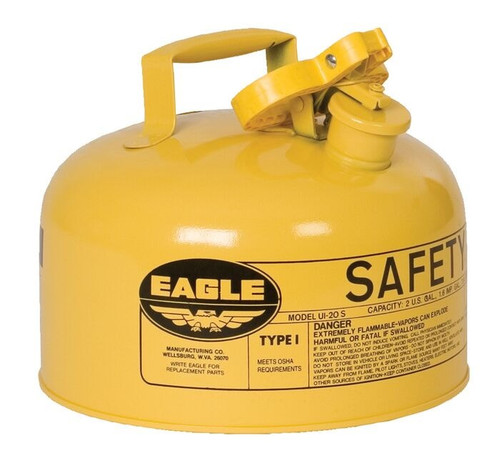

Eagle UI-20-SY – 2 Gallon Type I Steel Safety Can (Yellow, Diesel)

The Eagle UI-20-SY is a compact Type I steel safety can designed for safe storage and dispensing of diesel fuel. Its yellow color coding follows standard industry practice, helping prevent costly mix-ups when working with multiple fuel types on-site. With rugged galvanized steel construction and reliable safety features, this 2-gallon model is perfect for smaller fueling tasks or tight storage spaces.

Constructed from seamless, 24-gauge hot-dip galvanized steel, the UI-20-SY is engineered with a self-closing, leak-tested lid and non-sparking flame arrester for maximum protection. Its deep-drawn process eliminates top and side seams, reducing the risk of leaks while keeping fuel odors contained. A nitrile gasket vents between 3–5 psi to prevent rupture, while the comfort grip handle ensures smooth, controlled pouring every time.

Key Features:

• 2-gallon (7.6 L) capacity, ideal for smaller fueling operations
• Color-coded yellow for diesel fuel identification
• Seamless 24-gauge galvanized steel construction—no top or side welds
• Self-closing, leak-tested lid with double interlock bottom seam
• Non-sparking flame arrester dissipates heat to prevent flashback ignition
• Nitrile gasket vents vapors between 3–5 psi for rupture prevention
• Comfort grip and trigger release handle for controlled pouring
• Compact design fits easily into Eagle safety cabinets
• Optional funnel available for clean pouring into smaller tanks
• Compliance & approvals: OSHA, NFPA 30, CARB; UL/ULC-listed and FM approved

Specifications:

• Material: 24-gauge hot-dip galvanized steel
• Capacity: 2 gallons (7.6 L)
• Dimensions: 9.5" H x 11.25" OD (24.1 cm x 28.6 cm)
• Fill/Pour Opening: 1.65" (4.19 cm) ID
• Weight (empty): 5.25 lbs (2.38 kg)
• Compliance/Approvals: OSHA, NFPA 30, CARB; UL/ULC-listed; FM approved
