Ropemaster TM-10 Wide Throat Rigging Block - 25 Ton WLL
Made in the United States of America!
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
Skookum TM-10 Wide Throat Block – 10" Manganese Sheave
The Skookum TM-10 Wide Throat Block delivers heavy-duty performance for demanding rigging and lifting applications. Featuring a 10" work-hardening manganese steel sheave and rugged cast alloy steel sides, this block is designed to maximize both wire rope and sheave life. Built with Timken tapered roller bearings, it provides long service even in higher line speed operations. Designed for 1" to 1-1/4" wire rope.
Key Features:
- Wide throat and utili-sheave design accommodates a variety of lines, links, and terminations
- Manganese steel sheave for extended life and reduced wear
- Tapered roller bearings for smooth operation at higher line speeds
- Recessed sheave prevents rope binding between sheave and block side
- Half-side design offers strength while minimizing overall weight
- Tool-free draw pin allows fast rigging changes and attachment swaps
- Rugged cast alloy steel sides built for tough environments
- Meets ASME B30.26-1 requirements
Specifications:
| Sheave Diameter | 10" |
|---|---|
| Wire Rope Range | 1" – 1-1/4" |
| Working Load Limit | 25 Tons |
| Weight | 110 lbs |

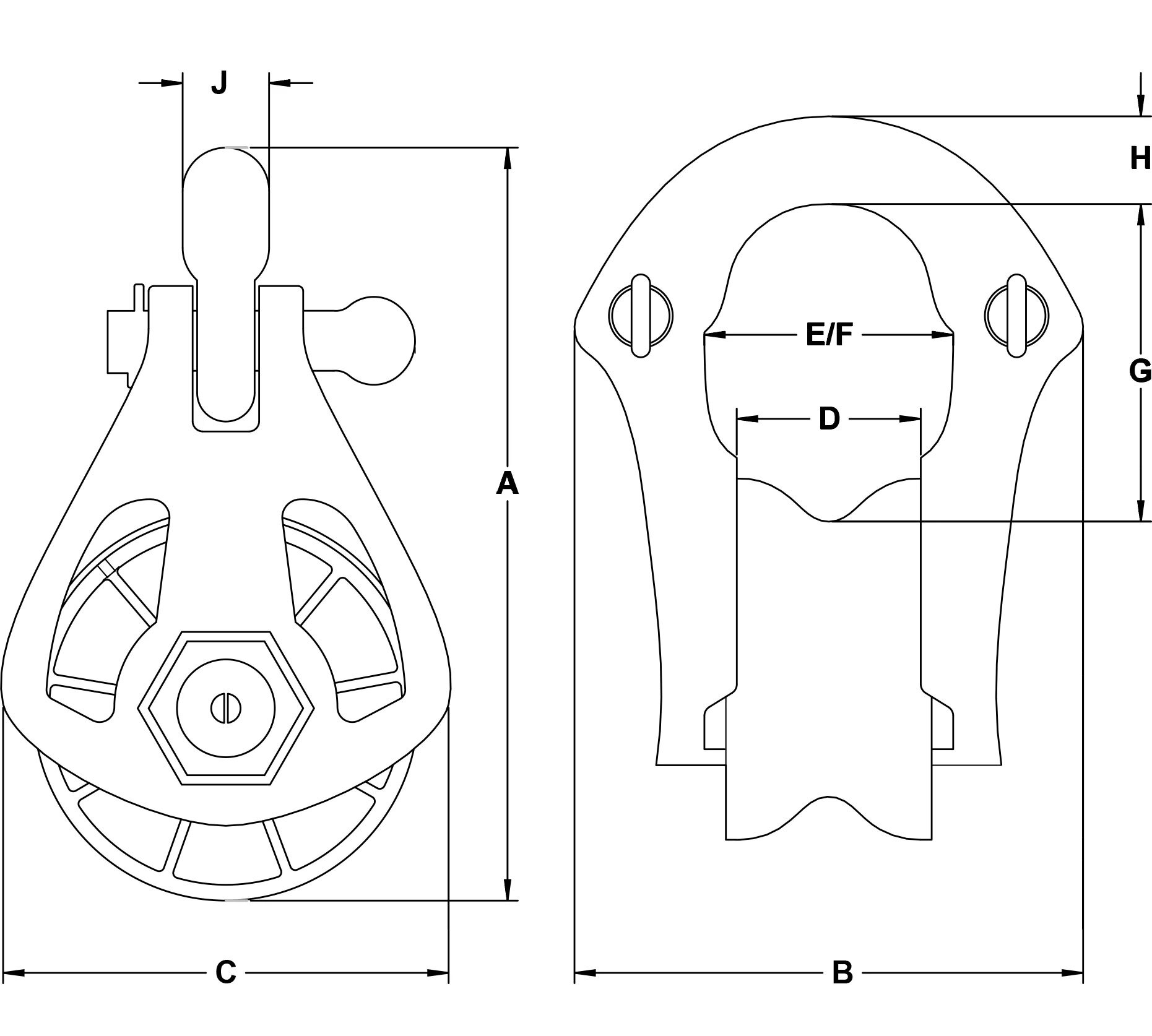

| A (Height) | 20" |
| B (Thickness) | 12" |
| C (Width) | 11.5" |
| D (Throat Bottom) | 4.5" |
| E (Inside Throat Width) | 4.5" |
| F (Inside Yoke Width) | 6" |
| G (Throat Height) | 9" |
| H (Yoke Bar Height) | 2" |
| J (Yoke Bar Width) | 2" |
