Ropemaster 110RA Half Side Rigging Block - 8 Ton WLL
Made in the United States of America!
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description

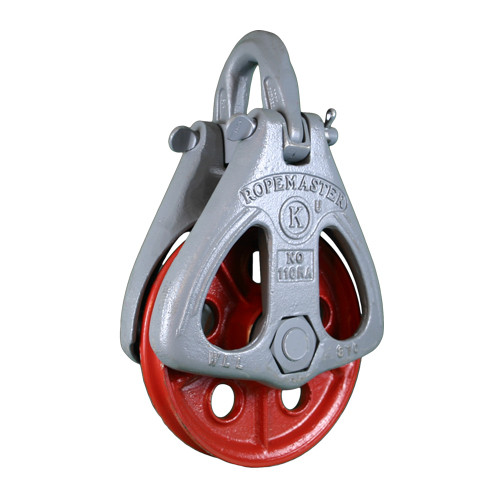

Ropemaster 110RA Half-Sided Block – 10" Manganese Sheave
The Ropemaster 110RA Half-Sided Block is built for larger capacity rigging where strength and durability are essential. Outfitted with a 10" work-hardening manganese steel sheave and Timken tapered roller bearings, it provides extended service life and smooth high-load performance. Designed for 1/2" to 5/8" wire rope, the 110RA is rated for an 8-ton working load limit and features a half-sided frame to minimize overall weight without sacrificing ruggedness.
Key Features:
- 10" manganese steel sheave ensures maximum wear resistance
- Timken tapered roller bearings extend life and improve performance
- Half-side construction reduces weight while retaining strength
- Recessed sheave protects wire rope from binding against block sides
- Quick-release draw pin for fast reeving and attachment changes
- Durable cast alloy steel sides for tough rigging environments
- Meets ASME B30.26-1 standards
Specifications:

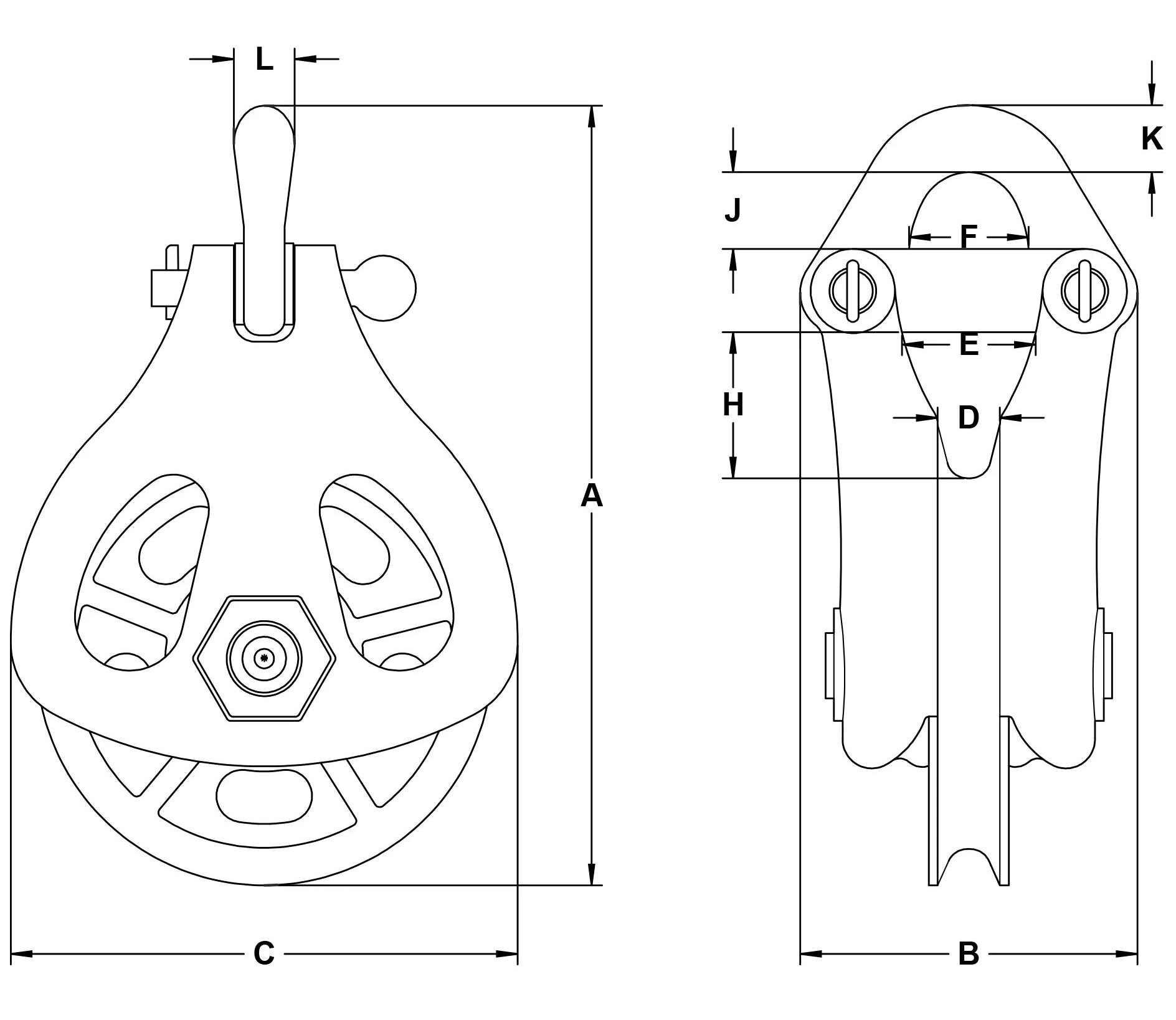

| Sheave Diameter | 10" |
|---|---|
| Wire Rope Range | 1/2" – 5/8" |
| Working Load Limit | 8 Tons |
| Weight | 38.55 lbs |
| A (Height) | 17.38" |
| B (Thickness) | 5.75" |
| C (Width) | 10.5" |
| D (Throat Bottom) | 1.38" |
| E (Inside Throat Width) | 2.56" |
| F (Yoke Width Above) | 2.56" |
| H (Throat Height Below) | 3.25" |
| J (Throat Height Above) | 2.5" |
| K (Yoke Bar Height) | 1.25" |
| L (Yoke Bar Width) | 1.25" |
Specifications
