Van Beest

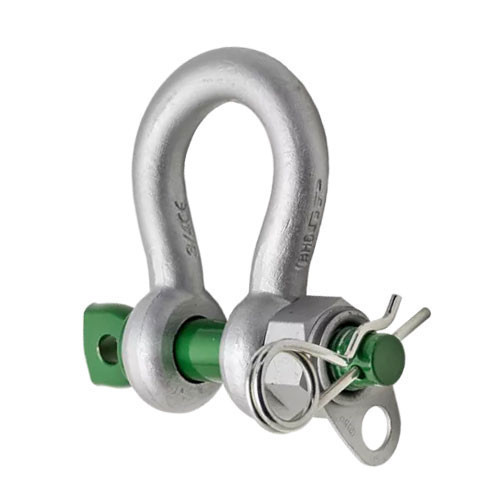

Van Beest Green Pin 1" G-4163H Bolt Type Catch Shackle - 8-1/2 Ton WLL
Made in Holland.
This product is rated for overhead lifting.
This product usually ships out in just 2 - 3 days.
Earn rewards points.
CA Prop 65
Product Description
- Prevents dropped objects – Designed to keep all shackle components securely tethered, reducing the risk of injuries and fatalities.
- Fully tetherable design – Bow, pin, nut, and cotter pin each feature an attachment point for lanyards.
- Size range: 1/2" to 1-1/8"
- Working Load Limit (WLL): 2 to 9.5 tons
- High-strength construction – Made from Grade 6 high-tensile steel, quenched and tempered for superior durability.
- Industry-compliant – Meets EN 13889, ASME B30.26, and US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A requirements.
- 6:1 safety factor – Ensures reliable and secure lifting performance.
- Hot-dip galvanized finish – Provides excellent corrosion resistance for extended service life.
- Wide temperature range – Suitable for use in temperatures from -40°F to 392°F (-40°C to +200°C).
- Co-developed with the DROPS organization – Designed for use with all types of tethering methods to enhance workplace safety.
Specifications
Safety Notice
Although Bishop Lifting strives to manufacture and sell the highest quality rigging and safety gear, use of the gear is dangerous if not used correctly by competent trained professionals. Bishop Lifting disclaims any liability resulting from the misuse of its rigging and safety gear. Please take a moment to more thoroughly review our disclaimer.
Bishop Lifting rigging and safety gear is only intended to be used by competent trained professionals. Misuse of the rigging and safety gear can result in serious injury up to and including loss of life. As such, Bishop Lifting disclaims liability for any misuse or incorrect product selection by our customers.
Rigging and safety gear purchased from Bishop Lifting should be used in strict accordance with all industry and OSHA standards. At no time should rigging or safety gear be used beyond its certified load ratings (aka Working Load Limits). Normal wear and tear should be expected with use of rigging and safety gear; therefore, all gear should be thoroughly inspected before each and every use. Worn or unsafe rigging and safety gear should never be used.
