Suncor

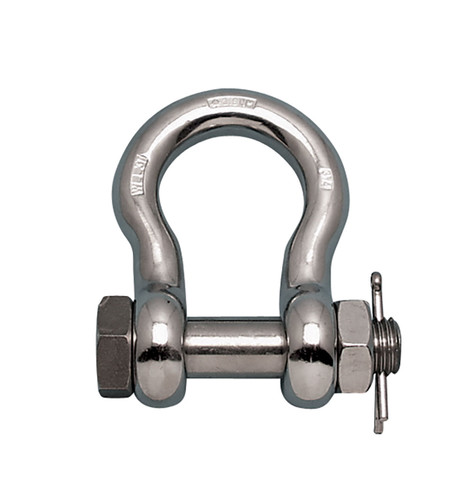

Suncor 1/2" Stainless Steel Bolt Type Anchor Shackle - 1.5 Ton WLL
This product is imported. Country of Origin subject to change.
This product is rated for overhead lifting.
Earn rewards points.
CA Prop 65
Product Description
Suncor Bolt Type Anchor Shackles – 316-NM Stainless Steel, Oversize Bolt
The Suncor Bolt Anchor Shackle is drop forged from 316-NM stainless steel and features an oversize bolt for enhanced strength and security. Designed for demanding saltwater environments, these anchor shackles provide excellent corrosion resistance and long-term durability in marine and industrial applications.
Bolt type anchor shackles are commonly used to connect anchors to chain or anchor swivels where a positive, bolt-secured connection is required. The bolt, nut, and cotter pin assembly helps prevent unintentional loosening, making these shackles well suited for permanent or semi-permanent installations.
Key Features:
- 316-NM stainless steel for superior corrosion resistance
- Import drop forged construction for strength and durability
- Oversize bolt with nut and cotter pin for secure connections
- Ideal for saltwater, marine, and industrial applications
- Load rated and marked to the nearest fractional ton
- Available in retail and bulk packaging
Specifications – Bolt Type Anchor Shackles (S0116-SA Series)
| Item Number | Size (A) | Pin Diameter (B) | Throat Opening (C) | Inside Length (D) | WLL (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| S0116-SA07 | 1/4" | 0.31" | 0.47" | 1.11" | 1,000 | 0.12 |
| S0116-SA08 | 5/16" | 0.38" | 0.53" | 1.20" | 1,300 | 0.18 |
| S0116-SA10 | 3/8" | 0.44" | 0.66" | 1.41" | 1,500 | 0.32 |
| S0116-SA12 | 7/16" | 0.50" | 0.72" | 1.77" | 2,000 | 0.47 |
| S0116-SA13 | 1/2" | 0.63" | 0.82" | 1.83" | 3,000 | 0.76 |
| S0116-SA16 | 5/8" | 0.75" | 1.02" | 2.41" | 4,000 | 1.45 |
| S0116-SA20 | 3/4" | 0.88" | 1.25" | 2.84" | 6,000 | 2.42 |
| S0116-SA22 | 7/8" | 1.00" | 1.48" | 3.30" | 8,000 | 3.66 |
| S0116-SA25 | 1" | 1.13" | 1.70" | 3.80" | 10,000 | 5.09 |
| S0116-SA32 | 1-1/4" | 1.38" | 2.03" | 4.69" | 14,000 | 10.79 |
All dimensions are nominal (+/- 3%) and subject to change without notice. Meets Fed. Spec. RR-C-271 Type IVA Class 3, ASME B30.26-2010, and MIL-DTL-32655.
