Skookum
Skookum 159A Ground Release Sheet Pile Shackle - 8 Ton WLL
Made in the United States of America!
This product is rated for overhead lifting.
Earn Rewards with Loyal Lifter's Club
CA Prop 65
Product Description
Skookum #159 Ground Release Sheet Pile Shackle – Safe & Controlled Ground Release
The Skookum #159 Ground Release Sheet Pile Shackle is designed for safe, efficient release of sheet piles from ground level, helping reduce the need for workers to remain in elevated or hazardous positions. Built for demanding jobsite conditions, it combines rugged forged construction with a dependable remote release design.
This model features a high-strength steel body, a Skookum #320 bolt-type anchor shackle, a 12" stainless steel release cable with thimble, and a 4:1 design factor. A repair kit is also available for ongoing service and maintenance.
Key Features
- Designed for ground-level release of sheet piles
- Skookum Gold Standard forged construction
- Equipped with Skookum #320 bolt-type anchor shackle
- Built with high-strength steel
- 12" stainless steel release cable with thimble
- 4:1 design factor
- Repair kit available
| Working Load Limit (WLL) | 8 tons (16,000 lbs) |
| Weight | 45 lbs |
| Design Factor | 4:1 |
| Repair Kit | 615908K |
| A | 9" |
| B | 6.38" |
| C | 0.94" |
| D | 2" |
| E | 1.13" |
| F | 1" |
| G | 11.68" |
| H | 3.5" |

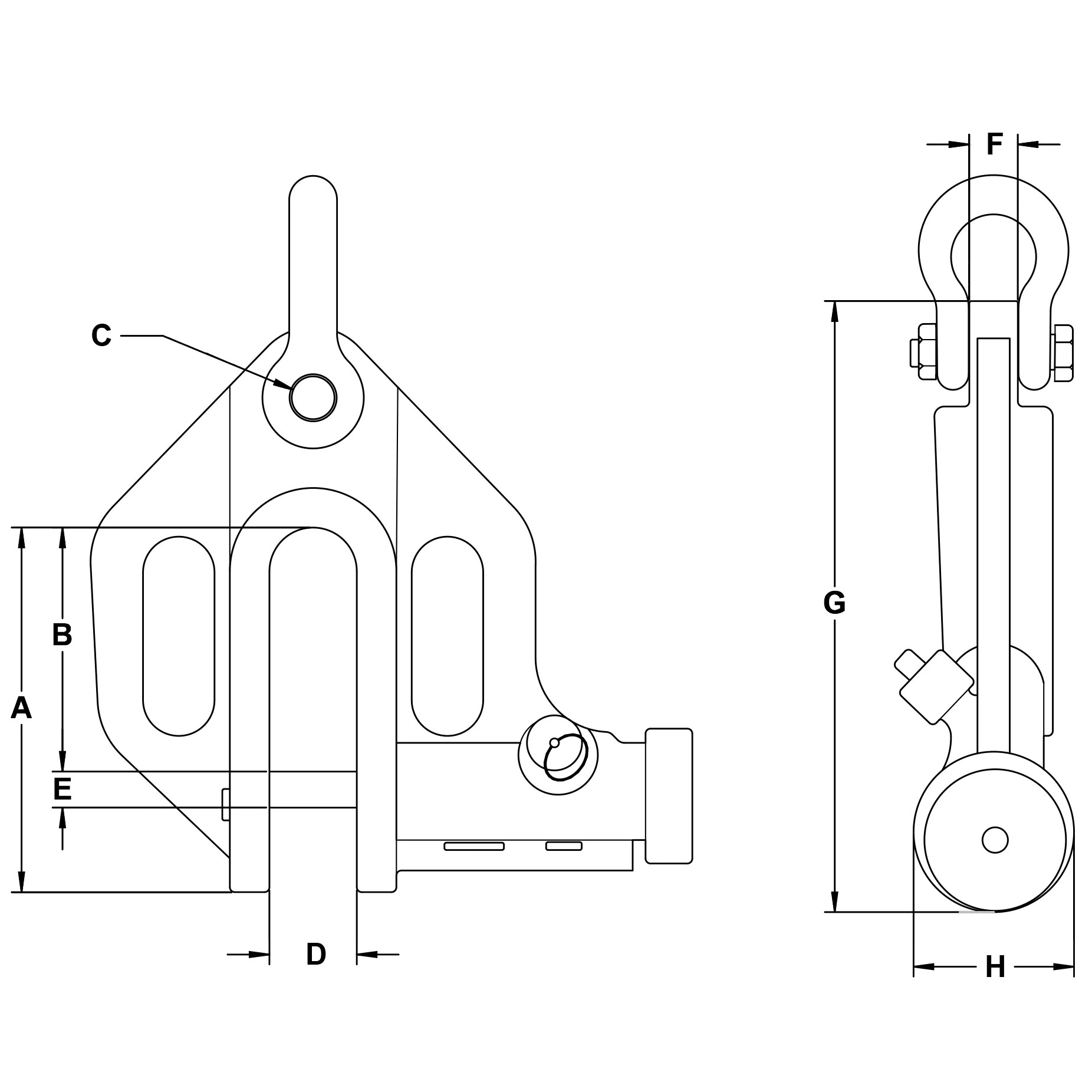

Dimensional Drawing
Specifications
