Crosby G-2169 Wide Body Sling Shackle - 12-1/2 Ton WLL - #1021673
Made in the United States of America!
We are an Authorized Crosby Distributor.
This product is rated for overhead lifting.
Earn Rewards with Loyal Lifter's Club
CA Prop 65
Product Description
Crosby G-2169 Wide Body Sling Shackles – Galvanized Alloy Steel, Screw Pin
The Crosby G-2169 Wide Body Shackles are purpose-built sling shackles designed with a wider bearing surface to improve sling efficiency and reduce point loading on synthetic and wire rope slings. These shackles provide performance similar to the G-2160 series but are available in three popular sizes with favorable pricing, making them an excellent option for everyday rigging and sling connections.
Manufactured from forged alloy steel and quenched & tempered for maximum strength, the G-2169 shackles are supplied with a durable galvanized finish. Each shackle features Crosby’s trusted engineering and quality control, including traceability and rigorous performance standards.
Key Features:
- Wide body sling shackle design increases bearing surface for improved sling efficiency
- Quenched & tempered forged alloy steel construction for maximum strength
- Hot-dip galvanized finish for corrosion resistance
- Working Load Limit permanently shown on every shackle
- Proof testing and magnetic particle inspection available upon request
- Crosby certification available at time of order
- Meets or exceeds all requirements of ASME B30.26
- Also meets additional performance requirements including fatigue life, impact properties, and material traceability
- Look for the Red Pin® — the mark of genuine Crosby quality
Specifications – Crosby G-2169 Wide Body Shackles
| Stock No. | WLL (tons) | Throat Opening (in.) | Pin Diameter (in.) | Bail Width/Depth (in.) | Bail Radius (in.) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 1021655 | 7 | 1.25 | 0.88 | 1.60 | 1.25 | 3.5 |
| 1021673 | 12.5 | 1.69 | 1.16 | 2.13 | 1.63 | 8.8 |
| 1021691 | 18 | 2.03 | 1.41 | 2.50 | 2.00 | 13 |
All dimensions are in inches. Working Load Limits are rated in metric tons. Wide body shackles provide increased bearing surface to improve sling efficiency and reduce wear on slings.
Specifications
Attachments
Related Items
Related Products
Crosby
Crosby G-2169 Wide Body Sling Shackle - 7 Ton WLL - #1021655
Crosby
Crosby G-2169 Wide Body Sling Shackle - 18 Ton WLL - #1021691
Crosby
Crosby G-2160 Wide Body Sling Shackle - 12-1/2 Ton WLL - #1021265
Crosby
Crosby G-2160 Wide Body Sling Shackle - 7 Ton WLL - #1021256
Crosby

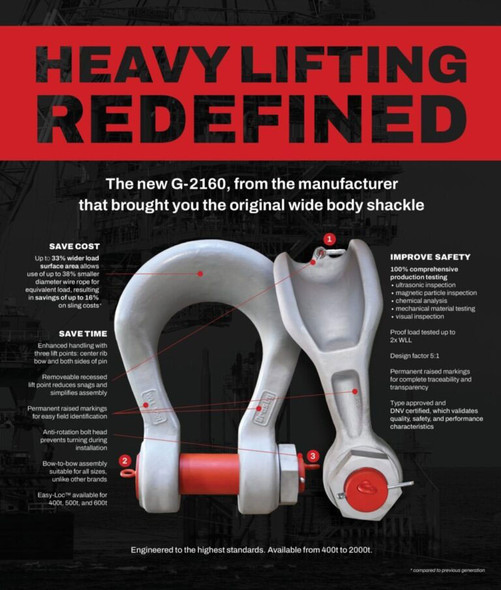

Crosby G-2160 Wide Body Sling Shackle - 125 Ton WLL - #1022110
