Columbus McKinnon

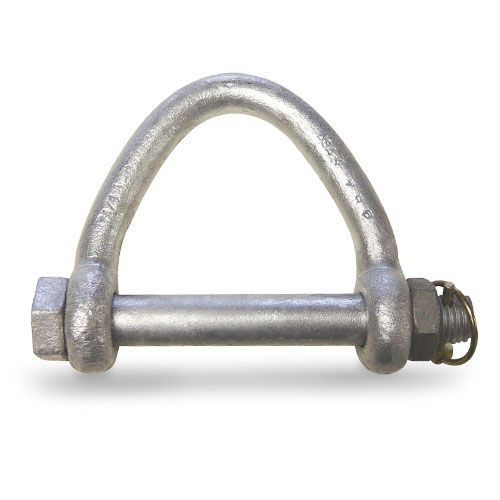

CM 1" x 5" Alloy Web Sling Shackle - 9-1/2 Ton WLL
Made in the United States of America!
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
CM Alloy Web Sling Shackles — High-Strength Connection for Web & Round Slings
CM Alloy Web Sling Shackles are purpose-built for connecting synthetic web and round slings to eye bolts and other lifting hardware. With a 6:1 design factor and a galvanized finish, they deliver strength and durability for demanding lifts.
Benefits & Features
- Design factor: 6:1
- Sling compatibility: fits web slings from 3" to 6" wide
- Securement: bolt and nut with linchpin
- Finish: galvanized for longer service life
- Markings: clearly marked with WLL and size
- Load path: straight-line loading only; do not side load or point load (distribute load across the full pin)
Models, Working Load Limits (WLL), Pin Diameter & Sling Width
- M703A — 13,500 lb, pin diameter: 0.88", sling width: 3.00"
- M704A — 14,500 lb, pin diameter: 0.88", sling width: 4.00"
- M705A — 19,000 lb, pin diameter: 1.00", sling width: 5.00"
- M706A — 22,500 lb, pin diameter: 1.13", sling width: 6.00"
Specifications
