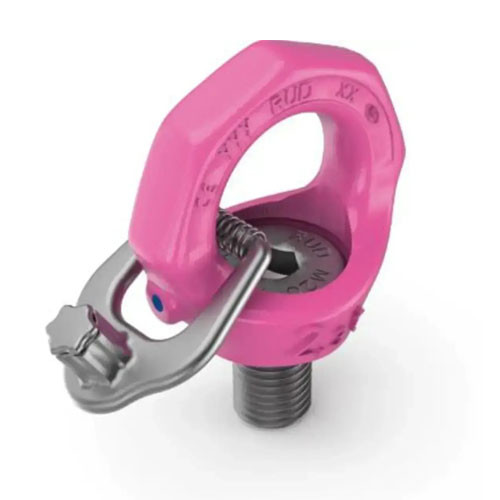

RUD 7/16"-14 0.4T VRS-F Starpoint Swivel Eye Bolt
This product is rated for overhead lifting.
Earn Rewards with Loyal Lifter's Club
CA Prop 65
Product Description
RUD VRS-F Starpoint Swivel Lifting Eye Bolt – 360° Rotating Bolt-On Lifting Point
The RUD VRS-F Starpoint Swivel Lifting Point is a premium bolt-on lifting eye designed for safe, flexible load handling in industrial lifting applications. Engineered to rotate through 360° and align with the direction of pull, the VRS-F allows loads to be lifted without dangerous side-loading that commonly occurs with traditional DIN 580 eye bolts.
Manufactured from high-strength forged alloy steel and equipped with the innovative RUD ICE bolt (up to M24 sizes), the VRS-F delivers exceptional strength, wear resistance, and performance across a wide temperature range. These lifting points provide significantly higher working load limits than standard eye bolts and are available with both metric and UNC thread options to suit a wide range of machinery, tooling, and fabricated lifting fixtures.
Key Features
- 360° Rotating Lifting Ring: Swivels to align with the direction of load, reducing dangerous side loading.
- Higher WLL Than Standard Eye Bolts: Substantially stronger than DIN 580 eye bolts for safer lifting.
- RUD ICE Bolt Technology: Sizes M6–M24 feature a non-detachable ICE bolt that offers superior bending strength and wear resistance.
- Wide Capacity Range: Working load limits from approximately 0.1 ton up to 20 tons depending on size.
- Metric & UNC Thread Options: Compatible with both metric and imperial threaded holes.
- Variable Bolt Length Options: Available for use in both threaded holes and through-hole applications.
- Star Profile Installation: Installs easily using a dedicated star-profile key for secure tightening and removal.
- Forged Alloy Steel Construction: Built for demanding industrial lifting environments.
Specifications
| Part Number | Thread (M) | Shank Length L (mm) | WLL (t) | Weight (kg) |
|---|---|---|---|---|
| 7900906 | M6 | 9 | 0.1 | 0.07 |
| 8500911 | M8 | 12 | 0.3 | 0.12 |
| 7104029 | M10 | 15 | 0.4 | 0.12 |
| 7101313 | M12 | 18 | 0.75 | 0.19 |
| 7999330 | M14 | 18 | 0.75 | 0.22 |
| 7101314 | M16 | 24 | 1.5 | 0.36 |
| 7903387 | M18 | 24 | 1.5 | 0.37 |
| 7101315 | M20 | 30 | 2.3 | 0.60 |
| 7992197 | M22 | 30 | 2.3 | 0.62 |
| 7101316 | M24 | 36 | 3.2 | 1.06 |
| 7994138 | M27 | 36 | 3.2 | 1.08 |
| 7101317 | M30 | 45 | 4.5 | 2.08 |
| 7993439 | M33 | 45 | 4.5 | 2.13 |
| 7984201 | M36 | 54 | 7 | 3.50 |
| 7984202 | M42 | 63 | 9 | 5.40 |
| 7984203 | M48 | 72 | 12 | 8.10 |
| 7910836 | M56 | 84 | 16 | 13.00 |
| 7910837 | M64 | 96 | 20 | 17.80 |
| UNC Thread Models | ||||
| 7999105* | 1/4"-20 | 9 | 0.1 | 0.24 |
| 7999106 | 5/16"-18 | 12 | 0.3 | 0.13 |
| 7104480 | 3/8"-16 | 15 | 0.4 | 0.12 |
| 7904195 | 7/16"-14 | 15 | 0.4 | 0.12 |
| 7104481 | 1/2"-13 | 19 | 0.75 | 0.22 |
| 7104482 | 5/8"-11 | 24 | 1.5 | 0.35 |
| 7104483 | 3/4"-10 | 30 | 1.5 | 0.58 |
| 7104484 | 7/8"-9 | 33 | 2.3 | 0.61 |
| 7104485 | 1"-8 | 38 | 3.2 | 1.04 |
| 7903386 | 1-1/8"-8 | 36 | 3.2 | 1.08 |
| 7903383 | 1-1/8"-7 | 36 | 3.2 | 1.08 |
| 7104486 | 1-1/4"-7 | 48 | 4.5 | 2.08 |
| 7104487 | 1-1/2"-6 | 54 | 7 | 3.60 |
| 7104488 | 1-3/4"-5 | 63 | 9 | 4.95 |
| 7104489 | 2"-4.5 | 72 | 12 | 7.60 |
*Specifications and dimensions are subject to technical changes without notice. The 1/4"-20 UNC model (Part No. 7999105) is supplied without a star-profile installation key.
