Product Description
REID Plus Winch – Manual Goods-Only Winch with Galvanized or Stainless Steel Cable
The REID Plus Winch is a compact, high-performance manual winch designed specifically for lifting goods only, not personnel. Engineered for reliability in demanding environments, this winch integrates seamlessly with REID’s davit and gantry systems and is ideal for industrial, utility, and material handling applications where safe, precise lifting is essential.
The Plus Winch is available with your choice of galvanized or stainless steel wire rope in multiple lengths—making it easy to tailor your setup to the job at hand. Choose between 10m (33 ft), 15m (49 ft), or 20m (66 ft) rope lengths to suit various lift heights and configurations.
Key Features:
- Goods-only rated: Designed strictly for material lifting (not rated for personnel)
- Up to 500 kg (1,100 lbs) capacity: When equipped with galvanized cable; 400 kg (880 lbs) with stainless cable
- Manual free-spool mode: Enables rapid cable deployment and fast setup
- Built-in cable tensioner: Ensures even, tangle-free winding
- Adjustable-length handle: Provides fast cranking at light loads and added leverage for heavier lifts
- Low crank force: Only 15 daN required for lifting on the first layer
- Robust steel body: Zinc-plated drum for long-lasting performance
- Conforms to EN13157:2004+A1:2009
Configuration Options:
- Wire Rope Material: Galvanized or Stainless Steel (6mm diameter)
- Rope Lengths:
- 10 meters (33 feet)
- 15 meters (49 feet)
- 20 meters (66 feet)
Working Load Limits (WLL):
- Galvanized Cable: Up to 500 kg (1,100 lbs) on first layer, decreasing to 390 kg (859 lbs) on final layer
- Stainless Steel Cable: Up to 400 kg (880 lbs) across all layers; final layer WLL 390 kg (859 lbs)
Compact, Durable, and Field-Ready
Weighing only 14 kg (30.8 lbs), the REID Plus Winch is easy to transport and mount with compatible brackets for REID davits and gantries. It’s the reliable choice for material lifting where power-free, safe, and efficient operation is required.

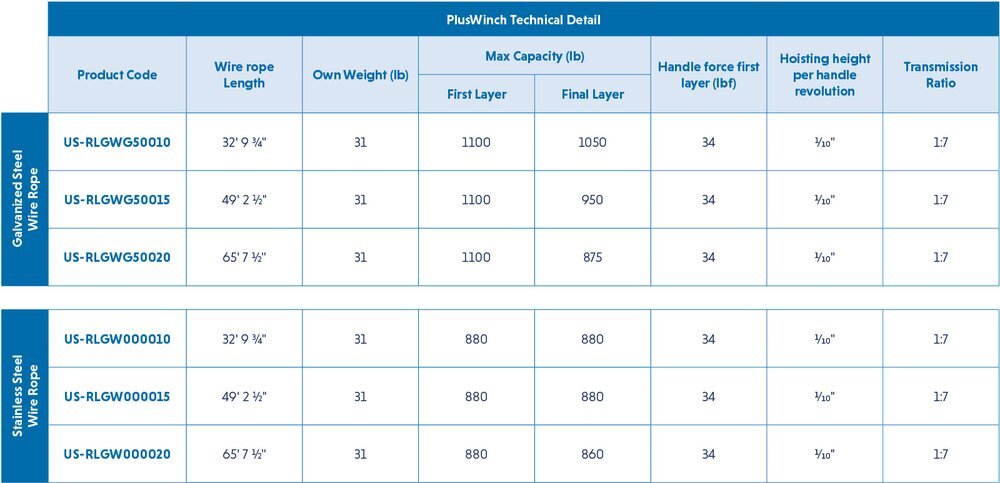

Specifications
Safety Notice
Although Bishop Lifting strives to manufacture and sell the highest quality rigging and safety gear, use of the gear is dangerous if not used correctly by competent trained professionals. Bishop Lifting disclaims any liability resulting from the misuse of its rigging and safety gear. Please take a moment to more thoroughly review our disclaimer.
Bishop Lifting rigging and safety gear is only intended to be used by competent trained professionals. Misuse of the rigging and safety gear can result in serious injury up to and including loss of life. As such, Bishop Lifting disclaims liability for any misuse or incorrect product selection by our customers.
Rigging and safety gear purchased from Bishop Lifting should be used in strict accordance with all industry and OSHA standards. At no time should rigging or safety gear be used beyond its certified load ratings (aka Working Load Limits). Normal wear and tear should be expected with use of rigging and safety gear; therefore, all gear should be thoroughly inspected before each and every use. Worn or unsafe rigging and safety gear should never be used.
