Suncor

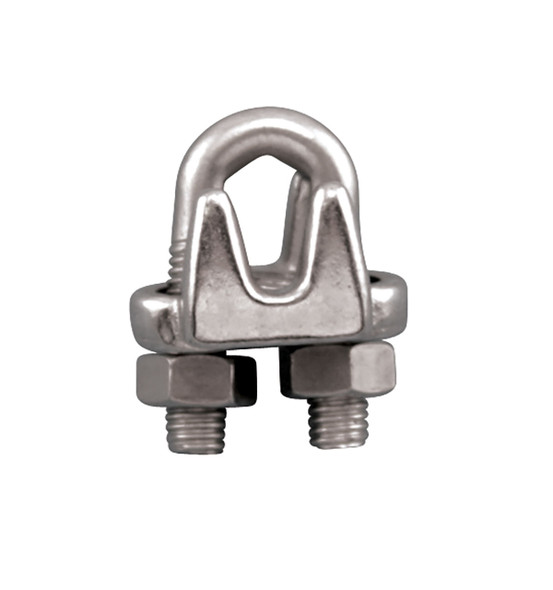

Suncor 5/8" Type 316 Stainless Steel Wire Rope Clip
This product is imported. Country of Origin subject to change.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
Suncor Wire Rope Clips – 316 Stainless Steel (Marine & Industrial)
The Wire Rope Clip is available in sizes ranging from 1/16" through 1" to ensure a proper fit for a wide range of wire rope applications. Precision cast and manufactured from grade 316 stainless steel, these clips offer excellent corrosion resistance and long-term durability in harsh marine and industrial environments.
Designed for forming secure end terminations and temporary wire rope assemblies, Suncor wire rope clips provide dependable performance when installed correctly and maintained as recommended.
Key Features:
- 316 stainless steel construction for superior corrosion resistance
- Precision cast for consistent fit and strength
- Available in a wide size range from 1/16" to 1"
- Ideal for marine, industrial, and general rigging applications
- Compatible with both 304 and 316 stainless steel wire rope
Specifications – Wire Rope Clips (316 Stainless Steel)
| Item Number | Size (A) | Overall Height (Y) | Overall Width (Z) | Weight (lbs) |
|---|---|---|---|---|
| S0122-SS02 | 1/16" | 0.72" | 0.54" | 0.02 |
| S0122-SS03 | 1/8" | 0.79" | 0.62" | 0.02 |
| S0122-SS04 | 5/32" | 0.95" | 0.74" | 0.03 |
| S0122-SS05 | 3/16" | 1.00" | 0.86" | 0.05 |
| S0122-SS07 | 1/4" | 1.30" | 1.02" | 0.08 |
| S0122-SS08 | 5/16" | 1.58" | 1.33" | 0.17 |
| S0122-SS10 | 3/8" | 2.00" | 1.76" | 0.34 |
| S0122-SS13 | 1/2" | 2.40" | 1.96" | 0.50 |
| S0122-SS16 | 5/8" | 3.07" | 2.35" | 0.83 |
| S0122-SS20 | 3/4" | 3.45" | 2.75" | 1.27 |
| S0122-SS22 | 7/8" | 4.00" | 2.86" | 1.61 |
| S0122-SS25 | 1" | 4.32" | 2.97" | 2.02 |
All dimensions are nominal (+/- 3%) and subject to change without notice. Proper installation and periodic inspection are required for safe use.
