FIH Single Acting Hydraulic Cylinders - 10 Ton Capacity - 14.00" Stroke - S1014

Freedom Hydraulics S1014 – 10 Ton Single Acting Cylinder

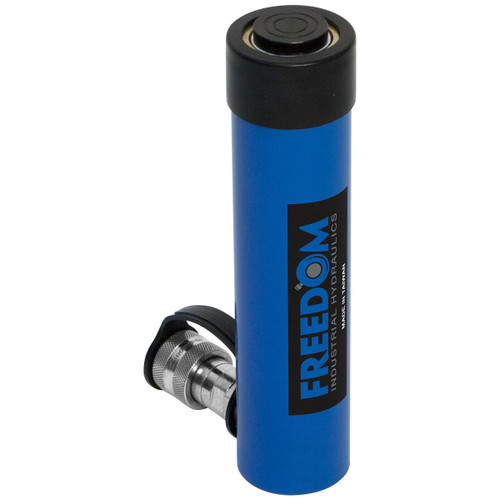

The Freedom Hydraulics S1014 delivers maximum reach within the 10-ton single acting series, offering a full 14″ stroke while retaining a compact form factor and spring return functionality. This long-travel hydraulic cylinder is ideal for applications requiring extended lifting or pushing capabilities—such as bridge repair, jack systems, equipment lifts, and large-scale positioning jobs.

Key Features

• Extended Stroke: 14″ of hydraulic travel provides maximum reach in the 10-ton category.
• Spring Return Design: Automatically retracts for efficient reset and high-cycle operations.
• Durable Build: Chrome-plated rod, industrial-grade steel construction, and corrosion-resistant finish.
• Bronze Bearings: Improve wear resistance and prolong cylinder life.
• Contaminant Protection: Wiper seal protects internal components from debris and grit.
• Mounting Options: Threaded collar and piston, plus base bolt circle for secure and flexible installation.
• Standard Port Thread: 3/8"-18 NPTF female port (inferred from cylinder series) for easy hydraulic connection.

Specifications

• Capacity: 10 Ton
• Stroke: 14.00 inches
• Collapsed Height: 17.84 inches
• Extended Height: 31.84 inches
• Effective Area: 2.25 in²
• Oil Capacity: 31.5 in³
• Outside Diameter: 2.25 inches
• Bore Diameter: 1.69 inches
• Plunger Diameter: 1.50 inches
• Base to Coupler Port: 0.75 inches
• Internal Piston Thread: 1"-8 UNC
• Piston Thread Length: 0.89 inches
• Base Mounting Holes: 1.56" bolt circle, 5/16"-18 UNC thread, 0.55" depth
• Collar Thread: 2-1/4"-14 UNC, 1.14" thread length
• Saddle Diameter: 1.38 inches
• Weight: 16.80 lbs
• Port Size: 3/8"-18 NPTF (inferred from model family)

Note: Hydraulic pump, hoses, and fittings are sold separately.
