Coffing LSB-NC 3 Ton x 10 ft Lever Chain Hoist
Made in USA with US & Global Components.
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description

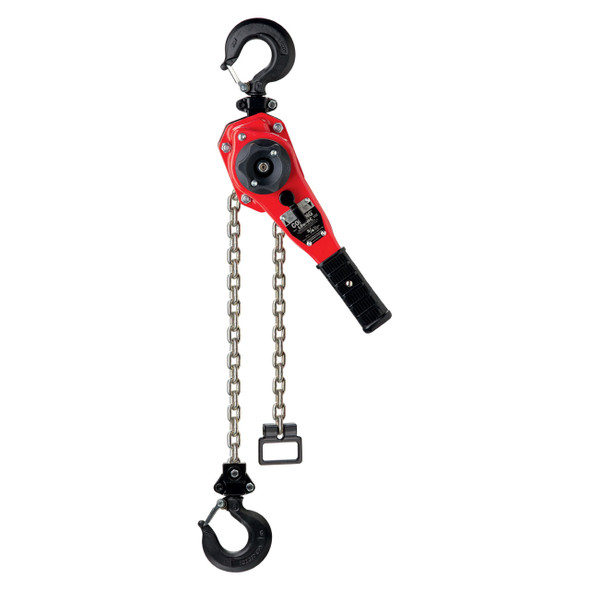

Coffing® LSB-NC Ratchet Lever Chain Hoist
The Coffing LSB-NC lever hoist delivers efficient lifting, pulling, and positioning performance in a compact, American-made design. Built in Wadesboro, North Carolina with American and imported parts, the LSB-NC features American-made hooks and load chain, a lightweight stamped-steel housing, and a short handle for tight-space applications. Engineered for long life and easy use, it’s a dependable choice for industrial, construction, and maintenance operations.
Key Features
- Made in the USA: Manufactured in Wadesboro, NC, using American-made hooks and chain produced by Columbus McKinnon.
- Compact & Lightweight: Short handle and durable steel body make it easy to transport and operate in confined work areas.
- Low Pull Force: Double-reduction gearing ensures smooth, controlled lifting with minimal handle effort.
- Free Chaining Mechanism: One-hand slack take-up design that won’t accidentally freewheel while under load.
- Positive Load Control: Enclosed screw-and-disc load brake stays clean and dry, providing consistent, secure load holding.
- 360° Rotating Handle: Allows flexible rigging and operation in any orientation, even in tight spaces.
- Rugged & Corrosion-Resistant: Powder-coated finish and plated chain protect against harsh jobsite conditions.
- Forged Safety Hooks: American-made hooks with forked latches ensure positive engagement of the hook tip.
- Optional Shipyard Hooks: Available on 1, 1-1/2, and 3-ton models for specialized applications.
Capacities & Lifts
- Capacities: 3/4, 1, 1-1/2, 3, and 6 tons (metric rated)
- Standard Lifts: 5 ft, 10 ft, 15 ft, and 20 ft (custom lifts available)
Model Specifications
| Capacity | Min. Headroom | Reeving | Handle Length | Handle Effort | Weight Range (5–20 ft Lift) |
|---|---|---|---|---|---|
| 3/4 Ton (750 kg) | 11.73" | 1 Fall | 9.84" | 53 lb | 13.59 – 20.34 lb |
| 1 Ton (1,000 kg) | 12.40" | 1 Fall | 10.51" | 51 lb | 20.01 – 29.01 lb |
| 1-1/2 Ton (1,500 kg) | 13.94" | 1 Fall | 10.51" | 77 lb | 20.34 – 30.79 lb |
| 3 Ton (3,000 kg) | 16.46" | 1 Fall | 14.80" | 87 lb | 38.98 – 67.81 lb |
| 6 Ton (6,000 kg) | 21.34" | 2 Falls | 14.80" | 92 lb | 65.95 – 108.61 lb |
*Minimum headroom measured hook-to-hook at full lift.
Common Applications
- Construction and heavy equipment maintenance
- Rigging and load positioning in confined areas
- Plant and utility maintenance
- Shipbuilding and fabrication work
Additional Details
- Meets applicable ASME B30.21 hoist standards.
- Standard models include plated alloy load chain and forged alloy hooks.
- Powder-coated housing resists wear and corrosion for extended service life.
- Custom lift lengths and optional shipyard hooks available upon request.
Made in the USA with American and imported parts.
