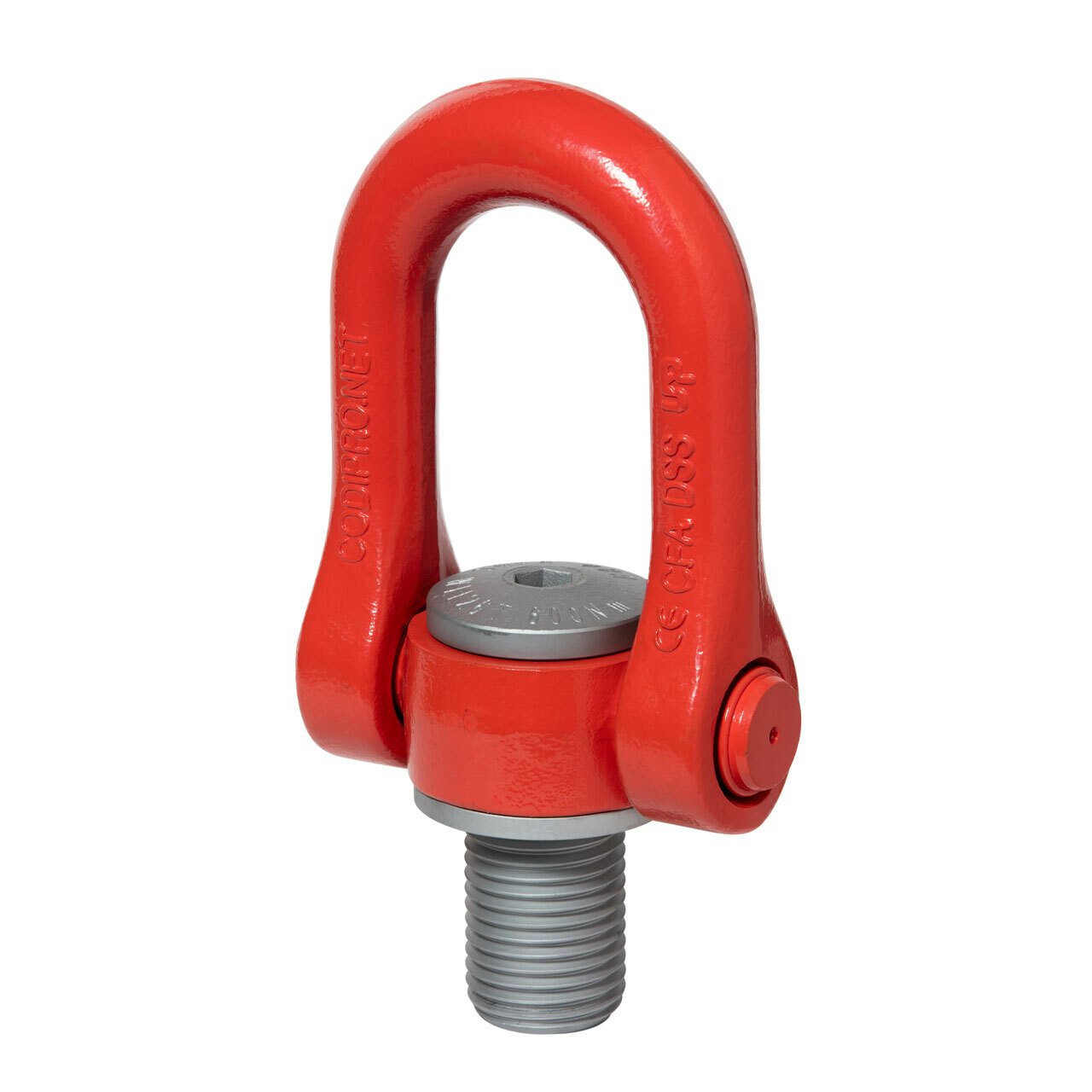

Codipro DSS Double Swivel Hoist Rings
Codipro DSS double swivel hoist rings are built for heavy-duty lifting applications where higher capacities and increased hardware clearance are critical. With 360° rotation and 180° pivoting under load, DSS hoist rings automatically align with the direction of force to reduce side loading and improve lifting safety. The larger body design features a wide shackle opening, making it easier to connect oversized hooks and rigging components in demanding environments. Available in metric sizes from M24 to M100 and UNC sizes from 1" to 2-1/2", Codipro DSS hoist rings deliver working load limits from 4.5 to 25 tons (5:1) or up to 32.1 tons (4:1), and from 10,000 to 48,500 lbs in UNC sizes—providing a high-capacity, reliable solution for heavy industrial lifting operations.
Click here to download a PDF file for additional specifications.
Order Sheet
| MPN | Size | Thread | WLL (tons) | WLL (lbs) | Approx. Weight (kg) | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|---|
| DSSM24UP | M24 | 36 mm | 4.5 | -- | 5.4 | 11.9 | $736.71 |
|
| DSSM30UP | M30 | 45 mm | 7.7 | -- | 5.5 | 12.13 | $761.25 |
|
| DSSM33UP | M33 | 50 mm | 8.5 | -- | 5.5 | 12.13 | $913.04 |
|
| DSSM36UP | M36 | 54 mm | 11 | -- | 5.5 | 12.13 | $798.91 |
|
| DSSM36x3UP | M36 | 54 mm | 11 | -- | 5.5 | 12.13 | $1,097.01 |
|
| DSSM39UP | M39 | 58 mm | 12 | -- | 5.7 | 12.57 | $1,097.01 |
|
| DSSM42UP | M42 | 63 mm | 13 | -- | 5.8 | 12.79 | $869.57 |
|
| DSSM42x3UP | M42 | 63 mm | 13 | -- | 5.8 | 12.79 | $1,222.56 |
|
| DSSM45UP | M45 | 63 mm | 14.5 | -- | 5.9 | 13.01 | $1,237.50 |
|
| DSSM48UP | M48 | 68 mm | 17 | -- | 11 | 24.25 | $1,418.23 |
|
| DSSM48x3UP | M48 | 68 mm | 17 | -- | 11 | 24.25 | $1,738.00 |
|
| DSSM48x4UP | M48 | 68 mm | 17 | -- | 11 | 24.25 | $1,738.00 |
|
| DSSM52UP | M52 | 68 mm | 19 | -- | 11.2 | 24.69 | $1,738.00 |
|
| DSSM56UP | M56 | 78 mm | 22 | -- | 11.3 | 24.91 | $1,520.32 |
|
| DSSM56x4UP | M56 | 78 mm | 22 | -- | 11.4 | 25.13 | $2,038.59 |
|
| DSSM64UP | M64 | 90 mm | 25 | -- | 12.2 | 26.9 | $1,826.09 |
|
| DSSM72UP | M72 | 90 mm | 22 | -- | 14 | 30.86 | $3,090.31 |
|
| DSSM72x4UP | M72 | 90 mm | 22 | -- | 14 | 30.86 | $3,243.34 |
|
| DSSM80UP | M80 | 90 mm | 25 | -- | 15 | 33.07 | $3,399.34 |
|
| DSSM90UP | M90 | 90 mm | 25 | -- | 15.5 | 34.17 | $3,522.95 |
|
| DSSM100UP | M100 | 90 mm | 25 | -- | 16.5 | 36.38 | $3,628.90 |
|
| DSSU100UP | 1" | 36 mm | -- | 10000 | 5.4 | 11.9 | $906.02 |
|
| DSSU125UP | 1-1/4" | 45 mm | -- | 15000 | 5.4 | 11.9 | $962.65 |
|
| DSSU138UP | 1-3/8" | 54 mm | -- | 21000 | 5.4 | 11.9 | $976.59 |
|
| DSSU150UP | 1-1/2" | 54 mm | -- | 22000 | 5.4 | 11.9 | $981.94 |
|
| DSSU175UP | 1-3/4" | 63 mm | -- | 27000 | 5.9 | 13.01 | $1,103.40 |
|
| DSSU200UP | 2" | 76 mm | -- | 38000 | 11.1 | 24.47 | $1,711.96 |
|
| DSSU250UP | 2-1/2" | 90 mm | -- | 48500 | 12.2 | 26.9 | $1,839.68 |
|
