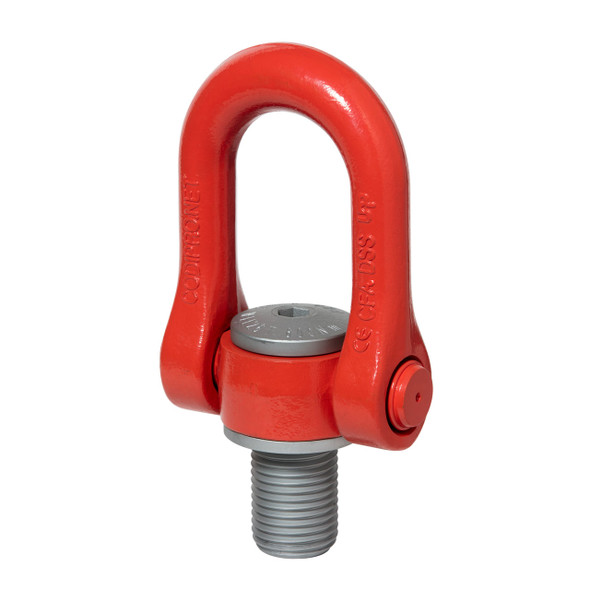

Codipro DSS Gradup M36 11T Swivel Hoist Ring
This product is rated for overhead lifting.
Earn Rewards with Loyal Lifter's Club
CA Prop 65
Product Description
Codipro DSS Double Swivel Hoist Rings – Heavy-Duty Lifting with Wide Shackle Opening
The Codipro DSS Double Swivel Hoist Ring is engineered for heavy-duty lifting applications where higher capacities and increased clearance are required. With 360° rotation and 180° pivoting under load, the DSS automatically aligns with the direction of force—reducing side loading and improving lifting safety.
Unlike standard hoist rings, the DSS features a wider shackle opening, making it easier to connect larger hooks and rigging components. Its optimized design provides an excellent working load limit-to-weight ratio, delivering strong performance without unnecessary bulk.
Manufactured to EN 1677-1 and the Machinery Directive 2006/42/CE, each unit includes clear WLL markings, tightening torque, and individual traceability for safe and compliant lifting operations.
Key Features
- Double swivel design: 360° rotation and 180° pivot under load
- Wide shackle opening: Improved hook fit and easier rigging
- Self-aligning under load: Reduces side loading and improper lifting angles
- High safety factor: 5:1 (standard) and 4:1 configurations available
- Optimized WLL-to-weight ratio: High strength without excessive weight
- Smooth rotation: Anti-tribocorrosion lubrication for long service life
- Clear markings: CE, WLL, and tightening torque stamped on each unit
- Individually serialized: Full traceability for inspections and compliance
Specifications
| Thread Type | Size Range | WLL (5:1) | WLL (4:1) |
|---|---|---|---|
| Metric | M24 - M100 | 4.5T - 25T | 5.5T - 32.1T |
| UNC | 1" - 2-1/2" | 10,000 - 48,500 lbs | 13,000 - 55,000 lbs |
Additional Specifications: Zinc-coated for corrosion resistance. Operating temperature -20°C to +200°C. Meets EN 1677-1 and Machinery Directive 2006/42/CE.
Specifications and dimensions provided by the manufacturer. Subject to technical changes.
