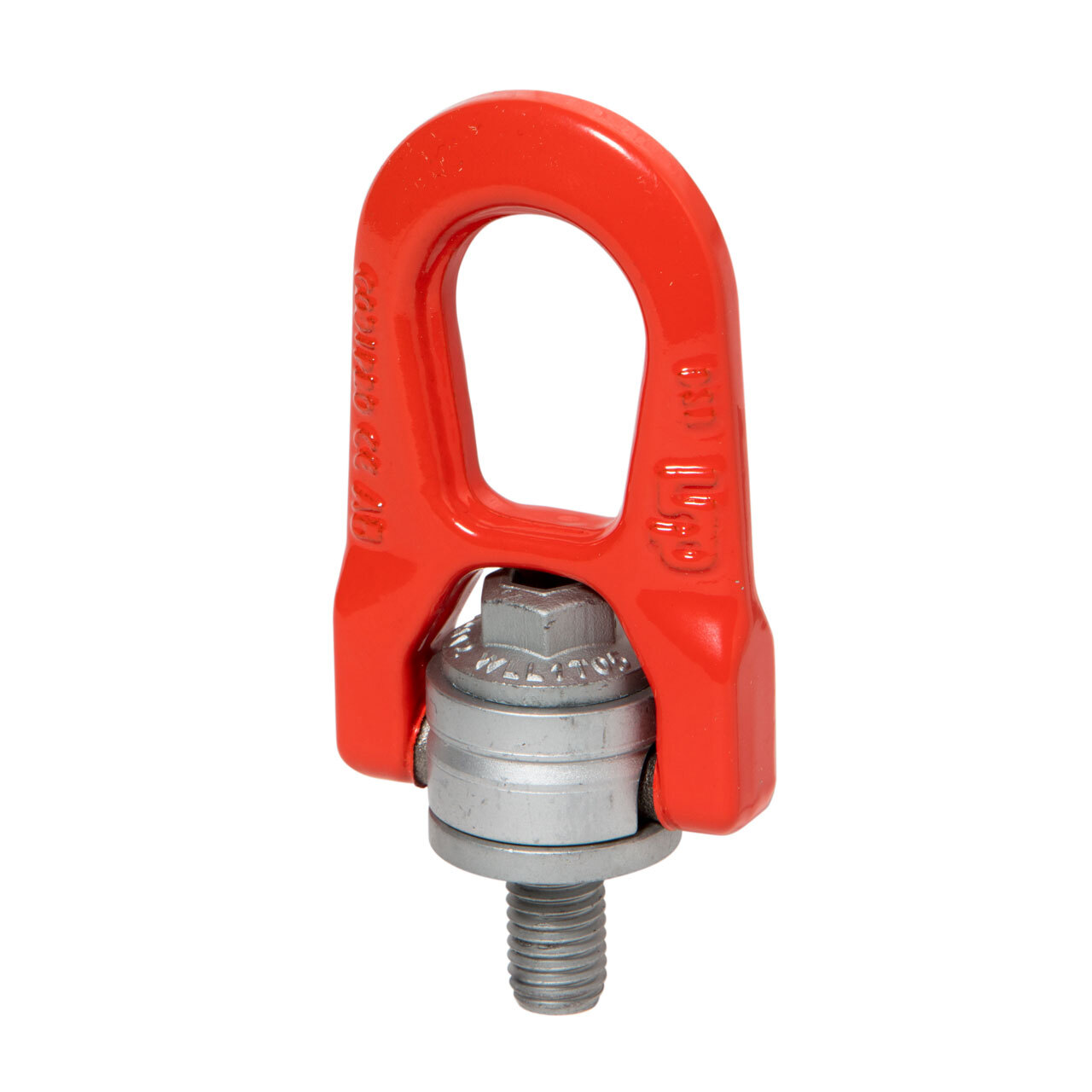

Codipro DSR Double Swivel Hoist Rings
Codipro DSR double swivel hoist rings are a versatile, general-purpose lifting solution designed to handle a wide range of applications with maximum safety and flexibility. Featuring 360° rotation and 180° pivoting under load, DSR hoist rings automatically align with the direction of force to reduce side loading and improve overall rigging performance. Their compact design and smooth rotation make them ideal for everything from light-duty lifts to more demanding industrial applications. Available in metric sizes from M5 to M42 and UNC sizes from 1/4" to 1-1/4", Codipro DSR hoist rings offer working load limits from 0.07 to 8.5 tons (5:1) or up to 9.0 tons (4:1), and from 330 to 13,500 lbs in UNC sizes—making them a reliable choice for safe, multi-directional lifting across a wide range of industries.
Click here to download a PDF file for additional specifications.
Order Sheet
| MPN | Size | Thread | WLL (tons) | WLL (lbs) | Approx. Weight (kg) | Weight (lbs) | Price | Quantity |
|---|---|---|---|---|---|---|---|---|
| DSRM5UP | M5 | 15 mm | 0.07 | -- | 0.3 | 0.66 | $136.27 |
|
| DSRM6UP | M6 | 15 mm | 0.15 | -- | 0.3 | 0.66 | $133.70 |
|
| DSRM8UP | M8 | 15 mm | 0.4 | -- | 0.3 | 0.66 | $136.27 |
|
| DSRM10UP | M10 | 18 mm | 0.7 | -- | 0.3 | 0.66 | $138.84 |
|
| DSRM12UP | M12 | 21 mm | 1.05 | -- | 0.3 | 0.66 | $143.98 |
|
| DSRM14UP | M14 | 23 mm | 1.4 | -- | 0.9 | 1.98 | $196.45 |
|
| DSRM16UP | M16 | 27 mm | 2 | -- | 0.9 | 1.98 | $196.45 |
|
| DSRM18UP | M18 | 27 mm | 2.3 | -- | 0.9 | 1.98 | $204.41 |
|
| DSRM202t5UP | M20 | 30 mm | 2.5 | -- | 0.9 | 1.98 | $204.41 |
|
| DSRM203t2UP | M20 | 25 mm | 2.9 | -- | 2.6 | 5.73 | $316.93 |
|
| DSRM22UP | M22 | 33 mm | 3.5 | -- | 2.6 | 5.73 | $333.61 |
|
| DSRM24UP | M24 | 36 mm | 4.4 | -- | 2.6 | 5.73 | $325.27 |
|
| DSRM27UP | M27 | 40 mm | 5.7 | -- | 2.7 | 5.95 | $372.41 |
|
| DSRM306t3UP | M30 | 45 mm | 6 | -- | 2.7 | 5.95 | $347.66 |
|
| DSRM308tUP | M30 | 45 mm | 6.7 | -- | 5.4 | 11.9 | $695.32 |
|
| DSRM36UP | M36 | 54 mm | 8 | -- | 5.4 | 11.9 | $706.36 |
|
| DSRM42UP | M42 | 63 mm | 8.5 | -- | 5.5 | 12.13 | $758.78 |
|
| DSRU025UP | 1/4" | 13 mm | -- | 330 | 0.3 | 0.66 | $149.12 |
|
| DSRU516UP | 5/16" | 15 mm | -- | 1000 | 0.3 | 0.66 | $149.12 |
|
| DSRU038UP | 3/8" | 17 mm | -- | 1300 | 0.3 | 0.66 | $154.26 |
|
| DSRU050UP | 1/2" | 21 mm | -- | 2400 | 0.3 | 0.66 | $160.66 |
|
| DSRU058UP | 5/8" | 27 mm | -- | 3900 | 0.9 | 1.98 | $203.80 |
|
| DSRU075UP | 3/4" | 30 mm | -- | 5250 | 0.9 | 1.98 | $221.24 |
|
| DSRU078UP | 7/8" | 33 mm | -- | 7900 | 2.5 | 5.51 | $345.11 |
|
| DSRU100UP | 1" | 36 mm | -- | 11200 | 2.6 | 5.73 | $355.98 |
|
| DSRU118UP | 1-1/8" | 42 mm | -- | 11500 | 2.6 | 5.73 | $366.85 |
|
| DSRU125UP | 1-1/4" | 45 mm | -- | 13500 | 2.7 | 5.95 | $377.72 |
|
