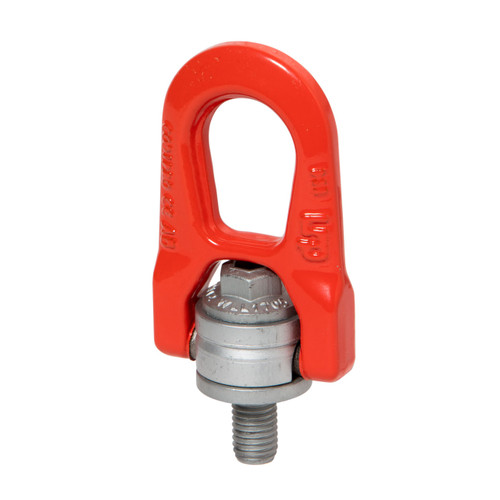

Codipro DSR Gradup 3/4"-10 5250 lbs Swivel Hoist Ring
This product is rated for overhead lifting.
Earn Rewards with Loyal Lifter's Club
CA Prop 65
Product Description
Codipro DSR Double Swivel Hoist Rings – Versatile Lifting with Full Range of Motion
The Codipro DSR Double Swivel Hoist Ring is designed for versatile lifting applications where flexibility and safety are critical. Featuring 360° rotation and 180° pivoting under load, the DSR automatically aligns with the direction of force—reducing side loading and improving overall rigging performance.
With a more compact design than heavy-duty alternatives, the DSR is ideal for a wide range of lifting tasks, from general manufacturing to maintenance and assembly operations. It provides reliable performance while maintaining an excellent working load limit-to-weight ratio.
Manufactured to EN 1677-1 and the Machinery Directive 2006/42/CE, each unit includes clear WLL markings, tightening torque, and individual traceability for safe and compliant lifting operations.
Key Features
- Double swivel design: 360° rotation and 180° pivot under load
- Self-aligning under load: Reduces side loading and improper lifting angles
- Compact, versatile design: Ideal for general-purpose lifting applications
- Wide size range: Suitable for light to medium-duty lifting tasks
- High safety factor: 5:1 (standard) and 4:1 configurations available
- Smooth rotation: Anti-tribocorrosion lubrication for long service life
- Thread protection design: Helps reduce wear during use
- Clear markings: CE, WLL, and tightening torque stamped on each unit
- Individually serialized: Full traceability for inspections and compliance
Specifications
| Thread Type | Size Range | WLL (5:1) | WLL (4:1) |
|---|---|---|---|
| Metric | M5 - M42 | 0.07T - 8.5T | 0.10T - 9.0T |
| UNC | 1/4" - 1-1/4" | 330 - 13,500 lbs | 450 - 13,500 lbs |
Additional Specifications: Zinc-coated for corrosion resistance. Operating temperature -20°C to +200°C. Meets EN 1677-1 and Machinery Directive 2006/42/CE.
Specifications and dimensions provided by the manufacturer. Subject to technical changes.
