Campbell
Campbell 1/4 Ton Duplex Hand Grip Clamp
Made in the United States of America!
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
Campbell Duplex Hand Grip Clamps
Campbell Duplex Hand Grip Clamps are heavy-duty tools engineered for gripping, pulling, or tensioning wire, cable, and similar round materials. Built from a rugged one-piece cast alloy body, each clamp provides long-lasting strength and reliability in demanding work environments. The automatic grip-and-release mechanism ensures quick and secure operation without slipping or manual adjustments.
Key Features
- Automatic grip and release — securely holds wire or cable and releases easily when tension is removed.
- One-piece cast alloy body — delivers maximum durability and consistent performance under load.
- Compact, efficient design — ideal for linemen, riggers, and utility professionals.
- Multiple handle options — available with standard, extended, or eye nut handles for different pulling applications.
- Made by Campbell — a trusted name in industrial-grade rigging and pulling tools.
Model Variations
All models share the same 0–5/16" grip range and automatic clamping mechanism. The primary difference lies in the handle length, style, and total weight:

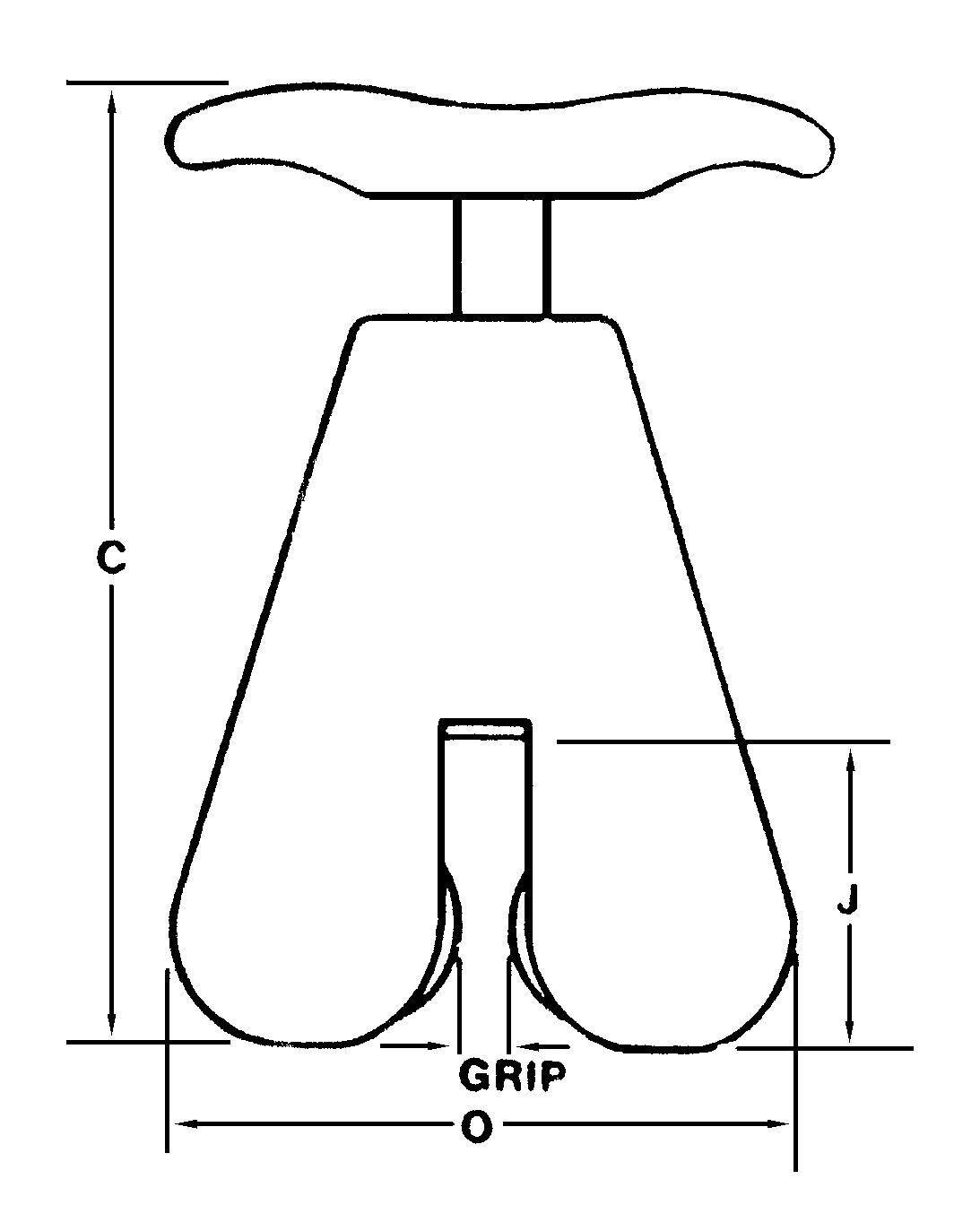

| Model | Handle Type / Length | C Dimension | J Dimension | O Dimension | Weight Each |
|---|---|---|---|---|---|
| 6421801 | Standard handle, 2" | 6" | 1-7/8" | 3-3/4" | 1.15 lbs |
| 6421802 | Eye nut handle | 8" | 1-7/8" | 3-3/4" | 2.10 lbs |
| 6421803 | Extended handle, 6" | 12" | 1-7/8" | 3-3/4" | 2.00 lbs |
| 6421805 | Long handle, 10" | 16" | 1-7/8" | 3-3/4" | 3.00 lbs |
| 6421806 | Extra-long handle, 18" | 23" | 1-7/8" | 3-3/4" | 4.00 lbs |
- Wire and cable pulling or tensioning
- Utility line installation and maintenance
- Rigging and construction work
- General material handling tasks
Note: All models are designed to carry or pull objects that fit within their 0–5/16" jaw capacity. Inspect before each use and operate only within rated limits.
