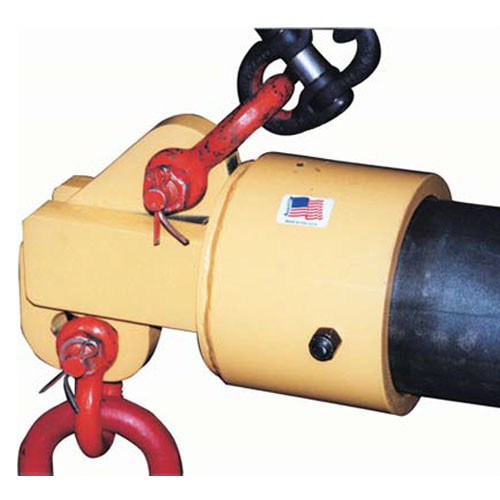

Caldwell 2-1/2" BEF Spreader Beam End Fitting

Build Your Own Spreader Beam with Caldwell BEF End Fittings

The Caldwell BEF Spreader Beam End Fittings are a smart, cost-effective solution for creating custom-length spreader beams. These durable fittings allow you to fabricate your own beam by supplying and drilling your own pipe to the required length and using your own top rigging. Perfect for applications where off-the-shelf beam lengths won’t do the job.

Each BEF fitting is designed to accommodate a range of standard shackle sizes on both the top and bottom, making them highly versatile. When properly assembled with schedule 40 pipe and suitable rigging, these end fittings meet ASME B30.20 and BTH-1 design standards.

Key Features

• Available in three sizes: BEF-2-1/2, BEF-5, and BEF-8
• Sold as a pair (2 end fittings)
• Designed for use with customer-supplied Schedule 40 pipe
• Accepts standard top and bottom shackles
• Build your own custom-length spreader beam
• ASME-compliant when properly assembled

Maximum Rated Capacities (Short Beam Spans)

• BEF-2-1/2: Up to 7.5 ton capacity, fits 2-1/2" Schedule 40 pipe, approx. 20 lbs per pair
• BEF-5: Up to 17 ton capacity, fits 5" Schedule 40 pipe, approx. 76 lbs per pair
• BEF-8: Up to 39 ton capacity, fits 8" Schedule 40 pipe, approx. 264 lbs per pair

Note: Capacities listed are maximums and apply only to short beam spans. Actual capacity depends on span, pipe, rigging, and hardware. Always consult a qualified engineer or contact us for guidance before use.

These beam ends are ideal for rigging professionals who need custom configurations without the lead time or cost of a fully fabricated spreader beam. Whether you're adapting to unique lift points or accommodating wide loads, Caldwell’s BEF end fittings give you flexibility with confidence.

Only offered in pairs on Lifting.com. Pipe and top rigging are not included.
