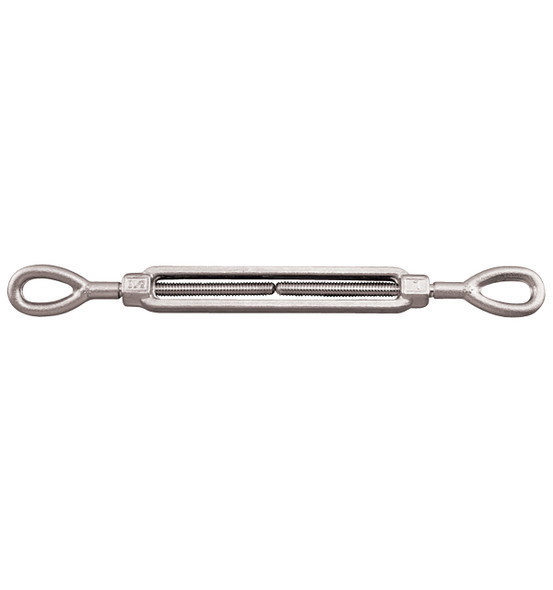

Suncor 1" x 12" 316 Stainless Steel Eye & Eye Turnbuckle - 8000 lbs WLL
Suncor
Suncor 1" x 12" 316 Stainless Steel Eye & Eye Turnbuckle - 8000 lbs WLL
- SKU:
- SUN-S0107-EE25-1
This product is imported. Country of Origin subject to change.
This product is rated for overhead lifting.
Need it fast? We stock many items, but some rigging and safety gear has longer lead times. Contact us before placing urgent orders.
Earn rewards points.
CA Prop 65
Product Description
Suncor Jaw & Jaw Turnbuckles – 316-NM Stainless Steel (Open Body)
The Suncor Forged Jaw & Jaw Turnbuckle features an open body design and is manufactured from grade 316-NM stainless steel for maximum corrosion resistance and long-term durability. Available in sizes ranging from 1/4" to 1-1/2", these turnbuckles are ideal for demanding marine and industrial tensioning applications.
Designed to provide secure, adjustable connections between pinned components, jaw & jaw turnbuckles allow for precise tension control while maintaining positive attachment at both ends. These turnbuckles meet the WLL and dimensional requirements of ASTM F1145-05 (2011), Type 1, Class G, and comply with ASME B30.26-2010, Section 26-2.0 and MIL-DTL-32655.
Key Features:
- 316-NM stainless steel construction for superior corrosion resistance
- Drop forged for strength and long service life
- Jaw & jaw end fittings for secure, pinned connections
- Open body design allows easy inspection and cleaning
- Load rated and manufactured to ASTM, ASME, and MIL specifications
- Available in retail and bulk packaging
Specifications – Jaw & Jaw Turnbuckles (316-NM Stainless Steel)
| Item Number | Size (A) | Adjustment (D) | Jaw Opening (B) | Pin Diameter (C) | WLL (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| S0108-JJ07 | 1/4" | 4.00" | 0.44" | 0.25" | 500 | 0.40 |
| S0108-JJ08 | 5/16" | 4.50" | 0.50" | 0.25" | 800 | 0.59 |
| S0108-JJ10 | 3/8" | 6.00" | 0.56" | 0.31" | 1,200 | 0.94 |
| S0108-JJ13 | 1/2" | 6.00" | 0.63" | 0.38" | 2,200 | 1.74 |
| S0108-JJ16 | 5/8" | 6.00" | 0.75" | 0.50" | 3,500 | 3.10 |
| S0108-JJ20 | 3/4" | 6.00" | 1.00" | 0.63" | 5,200 | 4.93 |
| S0108-JJ25 | 1" | 6.00" | 1.25" | 0.88" | 8,000 | 11.17 |
| S0108-JJ25-1 | 1" | 12.00" | 1.25" | 0.88" | 8,000 | 13.39 |
| S0108-JJ32-1 | 1-1/4" | 12.00" | 1.88" | 1.13" | 12,500 | 23.00 |
| S0108-JJ38-1 | 1-1/2" | 12.00" | 2.19" | 1.36" | 17,000 | 34.00 |
All dimensions are nominal (+/- 3%) and subject to change without notice. Larger sizes feature round pins with cotters. Working Load Limits are based on proper, in-line loading only.
