PLP Guy Wire Dispenser

PLP Safety Guy-Wire Dispenser

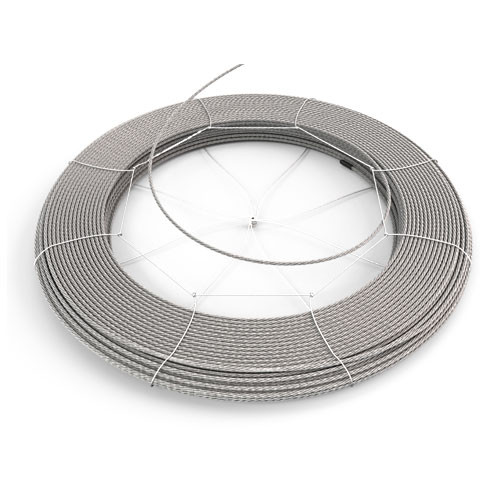

The PLP Safety Guy-Wire Dispenser provides a safe, efficient, and economical solution for paying out guy strand. Designed to prevent hazardous "runaway" coils, this tool simplifies handling and helps maintain control while working with wire rope, strand, and cable. Lightweight and compact, it installs in seconds and enables one-person operation—ideal for utility, telecom, and electrical contractors.

Key Features

• Installs quickly around strand coils—ready in seconds
• Helps eliminate dangerous “runaway” coil situations
• Allows one-person pay-out of guy strand or cable
• Lightweight and compact—occupies minimal truck space
• Improves safety and simplifies banding or taping of coils
• Accepts strand coils up to 500 feet
• Compatible with all strand grades, wire rope, cable, and conductor
• Reusable design, though often treated as a single-use tool on-site

Specifications

• Material: High strength galvanized steel wire
• Standard Size: For coil girths up to 63" (e.g. 500' of 7/16" strand)
• Catalog Number: SGD-0700
• Standard Carton Quantity: 50 units
• Typical Coil Sizes:
  • 500' of 7/16" (152.4 m / 11.1 mm)
  • 250' of 1/2" (76.2 m / 12.7 mm)

Ordering Notes

• We stock the SGD-0700 model for standard coil sizes.
• A larger size (SGD-0701) is available by special order for coils up to 500' of 1/2" strand (girth up to 75"). Minimum order quantities may apply.

Installation Overview

1. Unfold all four legs of the dispenser and place it on level ground.
2. Center the banded coil on top of the dispenser.
3. Fold the legs over the coil and twist them together into a “knot” using a screwdriver or similar tool.
4. Cut the banding to allow the coil to expand and fill the cage.
5. Flip the dispenser over so the twisted knot faces down.
6. Pull out the required length of strand—no need to hold the dispenser during pay-out.
7. After cutting, place the loose end back in the dispenser for safe transport.
